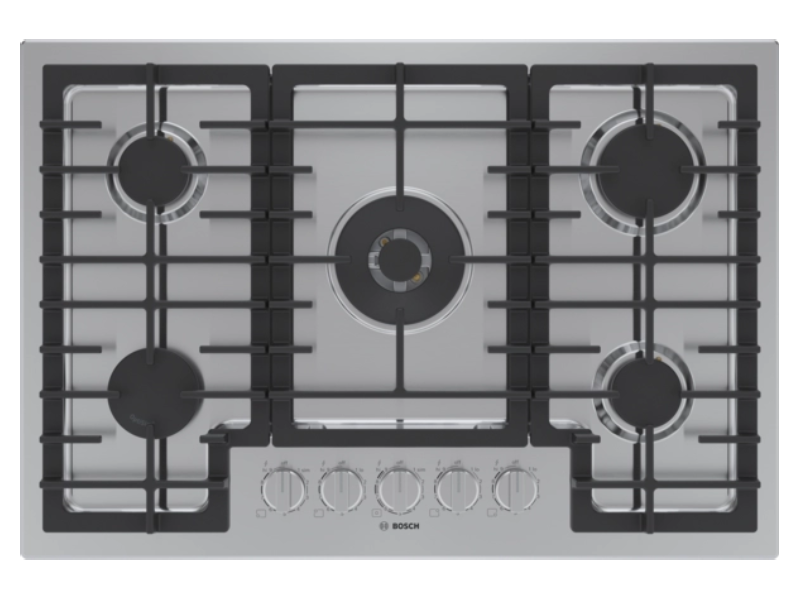

30" Bosch 5 Burners 800 Series Gas Cooktop - NGM8059UC
Literature
Book an Appointment with a Bosch Appliance Expert!
Caplan's can help choose the right products for your home. Request an appointment to visit our showrooms and be inspired.
Caplan’s Picks
Features & Benefits

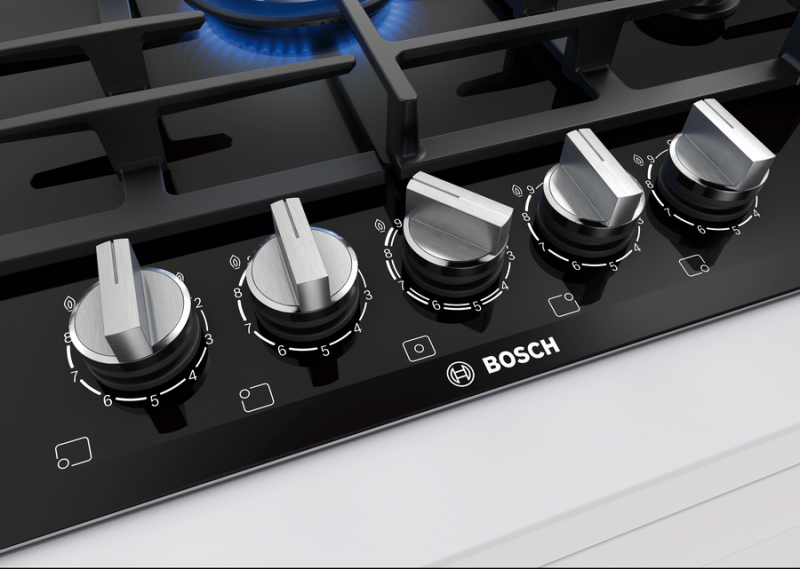

- FlameSelect® offers 9 distinct power levels and delivers precision flame height every time for consistent, repeatable results.

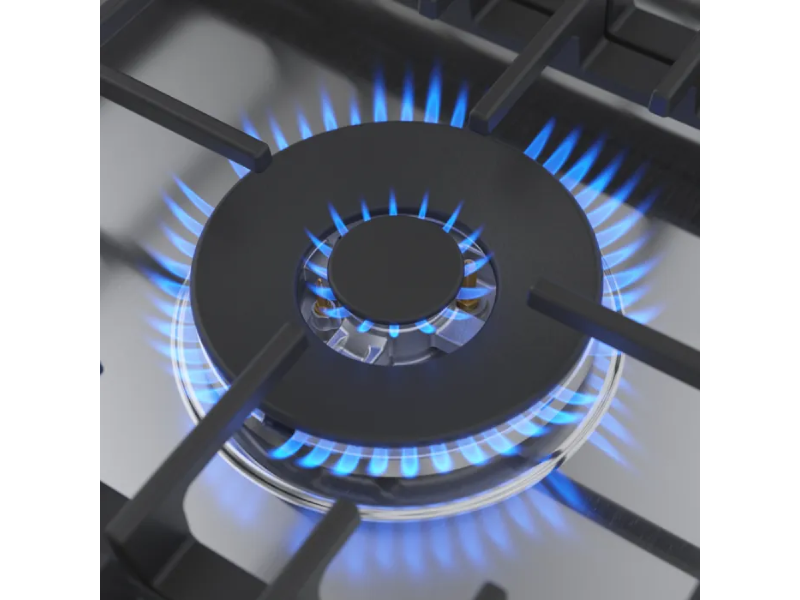

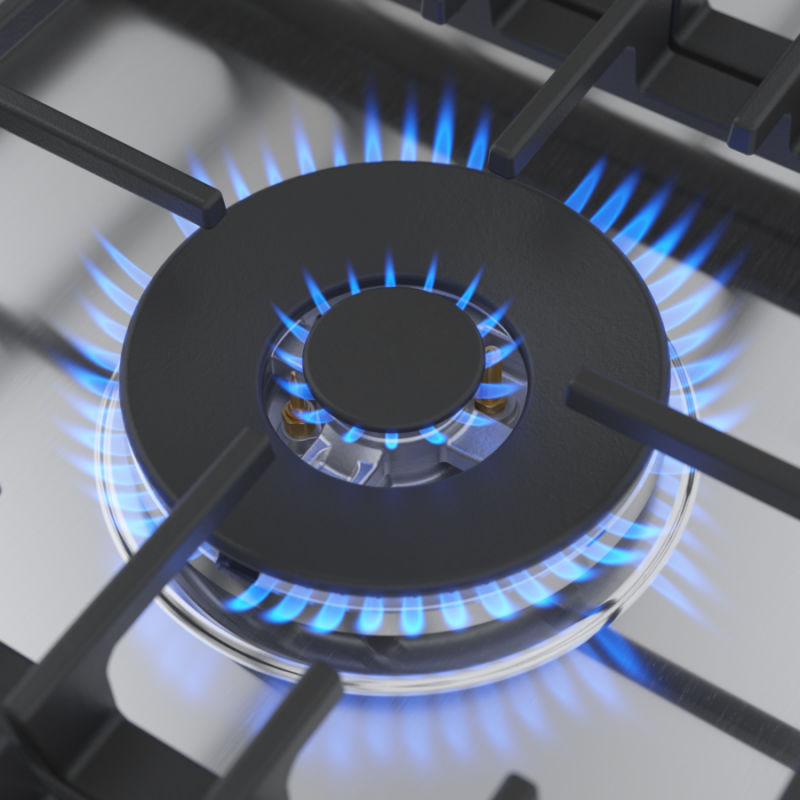

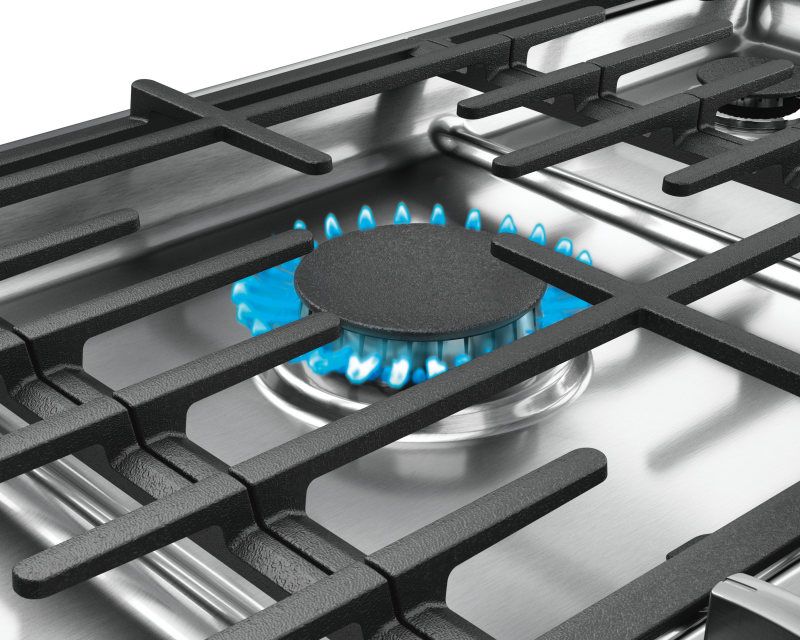

- Dual-ring power burner has 2 rings for low and high flame settings so you can go from simmer to sear with ease.
- Dishwasher safe heavyduty enameled cast iron grates makes cleanup simple and convenient.

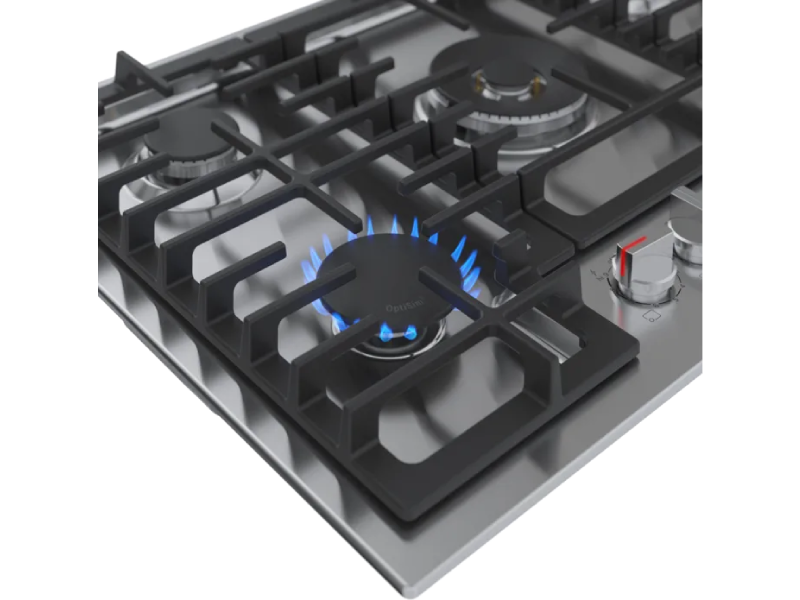

- OptiSim® burner offers more flame control at the lowest settings for precise simmering and melting.

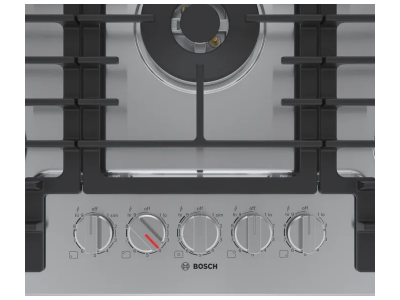

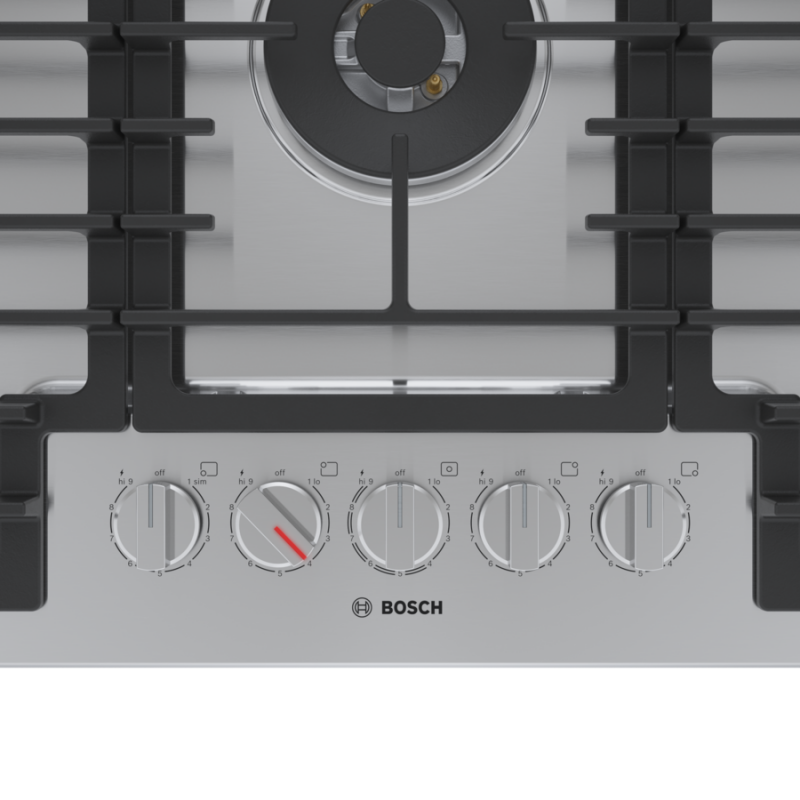

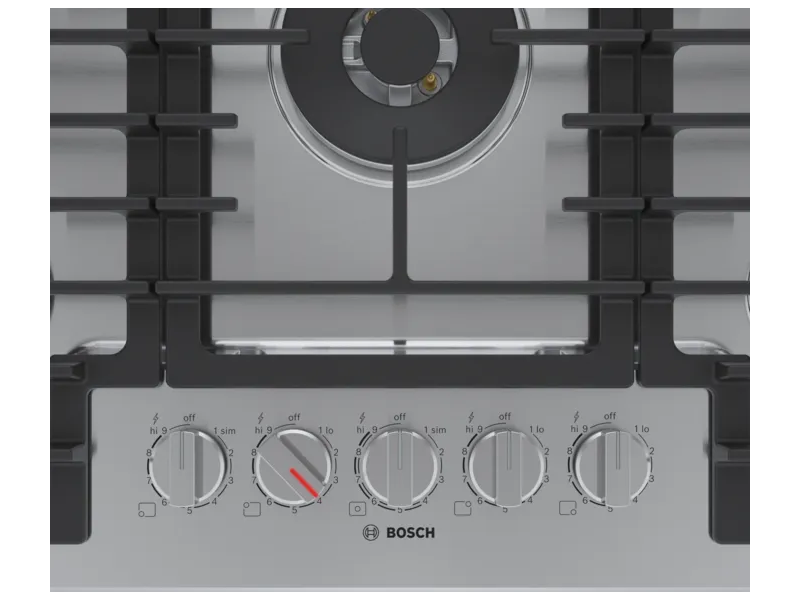

- Control knob with red LED light line indicates if burner is on and the burner's residual heat.
| General Properties | |
|---|---|
| Number of Burner | 5 |
| Knob color | Stainless Steel Appearance |
| Control location | Front-center |
| Sealed burners | Yes |
| Valves | Five 9-level gas step valves |
| Ignition system | Electronic; thermocouple flame monitor control |
| Surface | Stainless steel |
| Grate material | Cast iron |
| Grate features | Continuous grates,dishwasher safe |
| Element Performance | |
| Total BTU load (NG / LP) | 42,700 / 41,400 |
| Power of front left burner (NG / LP) | 3,400 / 3,400 |
| Power of back left burner (NG / LP) | 6,000 / 6,000 |
| Power of center burner (NG / LP) | 17,000 / 15,700 |
| Power of back right burner (NG / LP) | 10,300 / 10,300 |
| Power of front right burner (NG / LP) | 6,000 / 6,000 |
| TECHNICAL DETAILS | |
| Circuit breaker | 15 A |
| Volts | 120 V |
| Frequency | 60 Hz |
| Plug type | 3-prong |
| Power cord length | 40" |
| Energy source | Natural Gas (factory set) |
| Convertible to LP (kit required) | Yes |
| Dimensions & Weight | |
| Overall appliance dimensions (HxWxD) | 4 1/2" x 31" x 21 1/4" |
| Required cutout size (HxWxD) | 2" x 28 15/16" x 19 1/8" |
| Minimum distance from counter front | 1 7/8" |
| Minimum distance from rear wall | 3" |
| Dimensions and Weight | |
| Net weight | 51 lbs |
| Accessories—Included | |
| Included | LP Conversion Kit, OptiSim® Cap |
