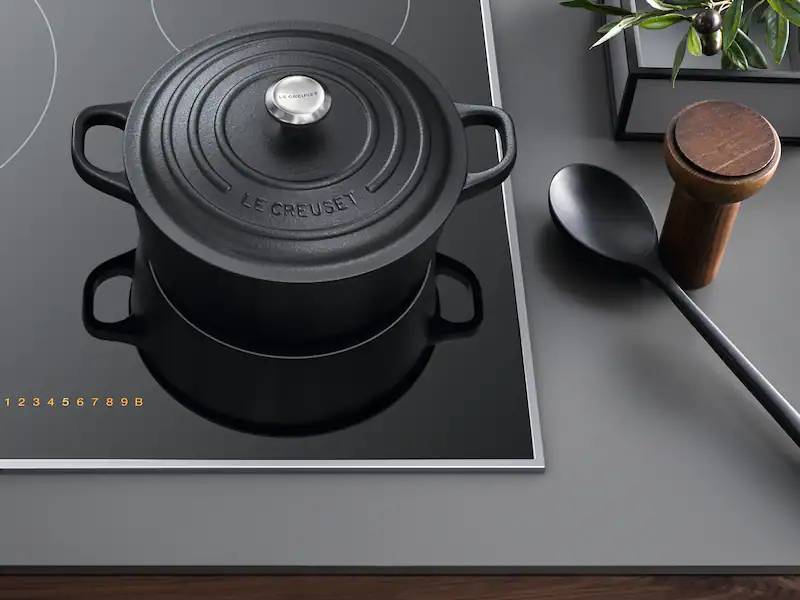

30" Induction Cooktop operated with Burners - KM 7735 FL

SKU : KM 7735 FL


Literature
Book an Appointment with a Miele Appliance Expert!

Caplan's can help choose the right products for your home. Request an appointment to visit our showrooms and be inspired.

Product Information

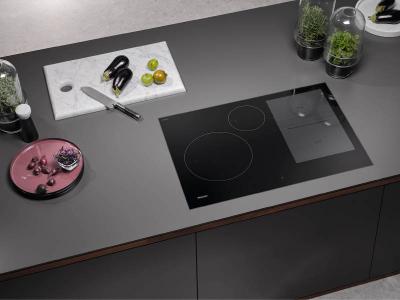

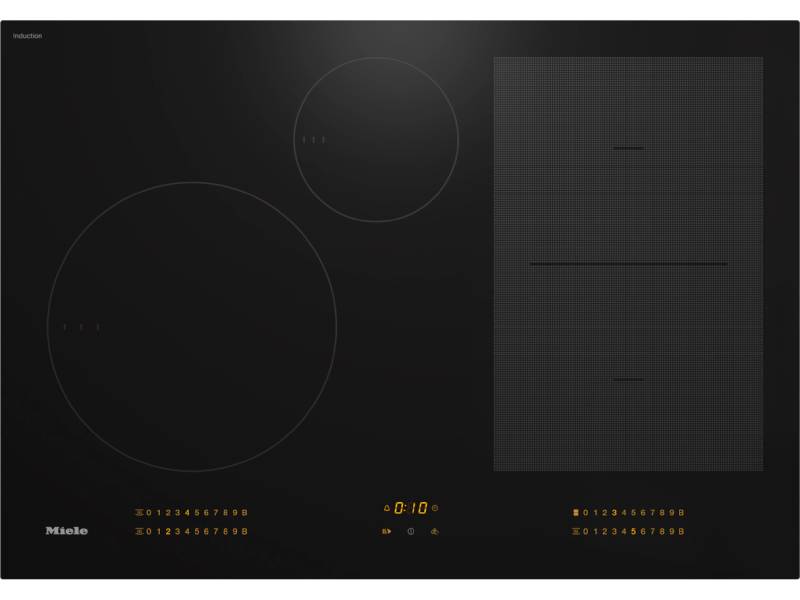

30-inch induction cooktop, operated with its own controls With PowerFlex cooking area for maximum performance

  • Intuitive quick selection via number sequences - Smart Select
  • 4 cooking zones incl. 1 powerful PowerFlex cooking area
  • 30 3/8 (769) in (mm) wide for surface-mounted or flush installation
  • Shortest heating-up times - TwinBooster
  • Communication with the ventilation hood – automatic Con@ctivity function
  • Con@ctivity 3.0. Smart control. Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.
  • PowerFlex. Ideal for large pots . Unbeatably fast and versatile: the booster output of up to 7.3 kW.

Your exclusive advantages



SETUP/FUNCTION

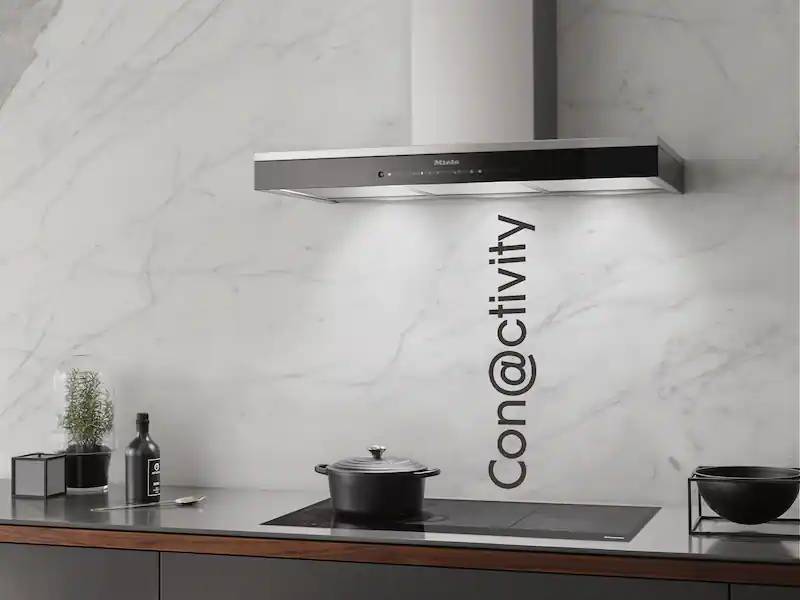

Con@ctivity 3.0

Smart control

Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.

Concentrate fully on cooking: With Con@ctivity 3.0, your ventilation hood always knows exactly what to do. When the cooktop is switched on or off, the ventilation hood reacts automatically, adapting the suction power to what’s happening on the cooktop and thus maintaining a pleasant room climate. The appliances communicate with each other via Wi-Fi. Con@ctivity 3.0 allows you to integrate the ventilation hood and cooktop into Miele@home.

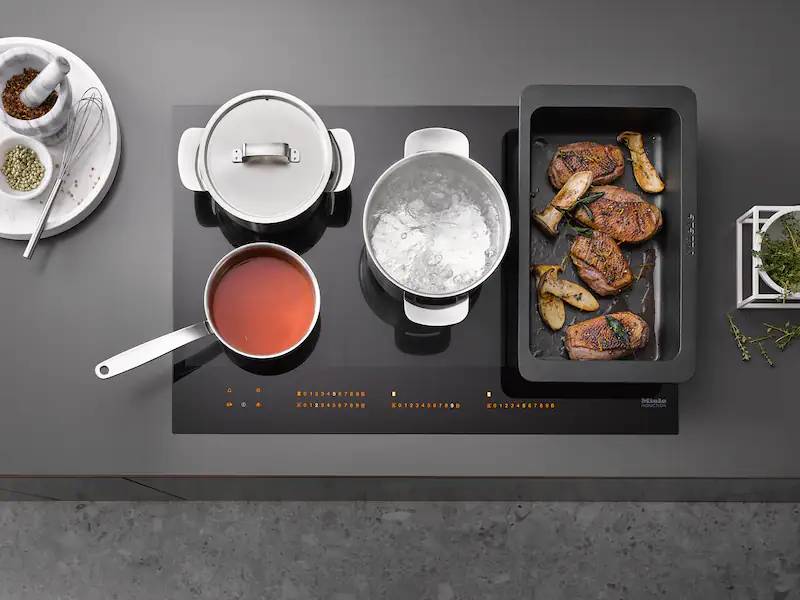

PowerFlex

Ideal for large pots

Unbeatably fast and versatile: the booster output of up to 7.3 kW.

Our PowerFlex cooking zones are incredibly versatile, and can be used for a wide variety of applications with no problems, no matter whether you’re using individual pans, large pots, or oven dishes. You can also save a great deal of time with a booster power of up to 7.3 kW, used to heat food with unrivalled speed.



TwinBooster

Booster function for rapid heating

With our versatile system, the induction power can be distributed as needed or focused on just one cooking zone.

For quick heating, you can use Miele’s exclusive TwinBooster function to combine the power of two cooking zones into one zone when needed. Alternatively, you can distribute the induction power as needed for flexible cooking performance.



Convenient additional features

For greater convenience

A range of additional functions such as Stop & Go and the timer make your kitchen routine a breeze.

With the convenient Stop & Go feature, all cooking zones can be reduced to power level 1 at the touch of a single button, allowing you to leave the cooktop unattended for a short time. The automatic keeping-warm function keeps food at the perfect serving temperature. Another plus: When you set the timer, the cooking zone switches off automatically after this time has elapsed. The recall function also saves your settings for 10 seconds.



Constant pan recognition

Simply place the pan and start cooking

Automatic activation of control elements: When turned on, pots which are already on a cooking zone are detected.

All you have to do is switch on the cooktop – if cookware has already been placed on a cooking zone, the corresponding control element is activated automatically, so you don’t need to start the cooking zones manually. And to provide additional energy efficiency, the appliance also automatically detects the size of the pan.



USER CONVENIENCE

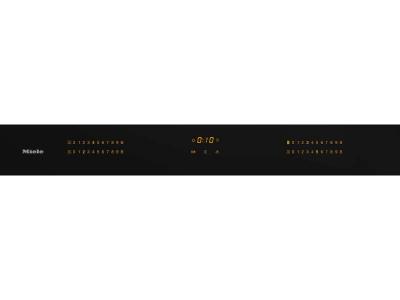

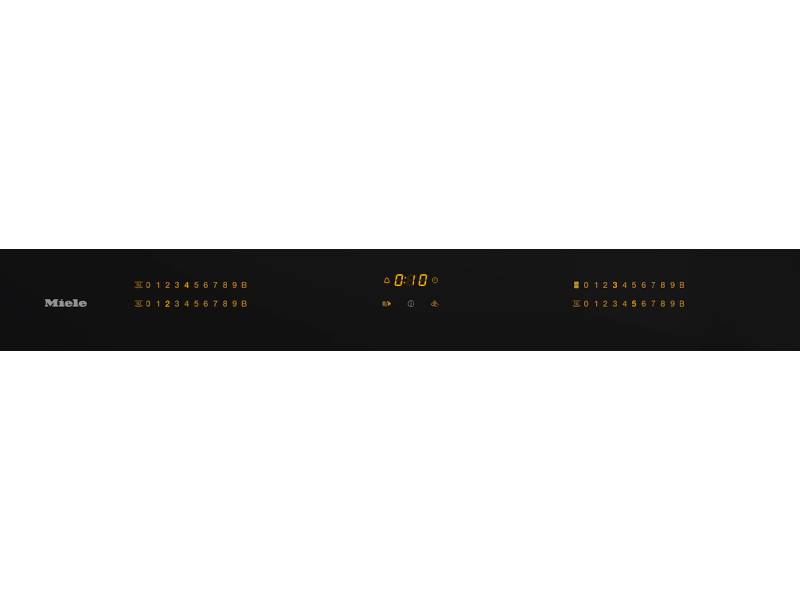

SmartSelect

Easy control with SmartSelect

Quick and intuitive: Power levels and times can be directly selected for each cooking zone.

With SmartSelect, it’s remarkably easy to adjust power settings and timings in no time. Each cooking zone is controlled by a numerical display with yellow backlighting, which is easy to read from any angle. What’s more, the three-digit timer is much easier to set thanks to SmartSelect, which allows you to select the timer and the safety shut-off separately.



SAFETY


Safety features

For greater peace of mind

With our safety features you can deal with life’s little surprises, even when your thoughts are elsewhere.

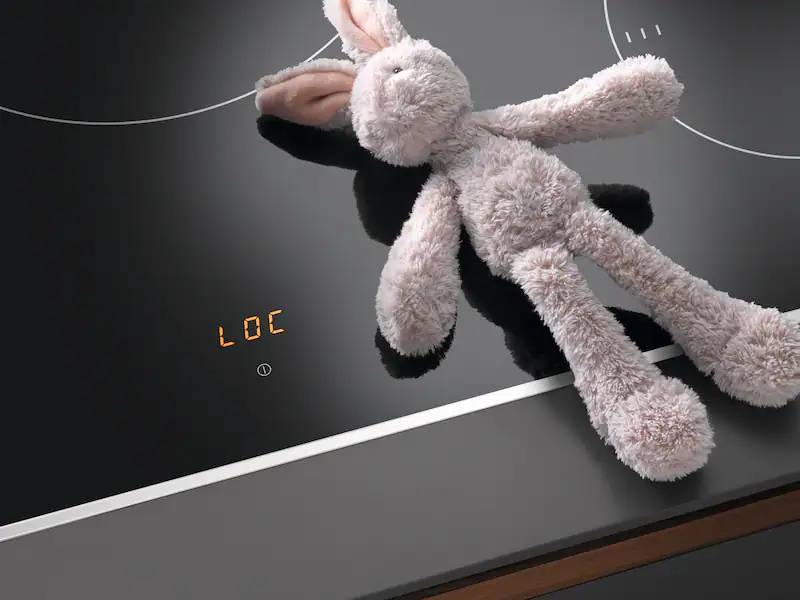

Providing the best protection in any situation, the system lock protects you against unauthorized or accidental switch-on. If a cooking zone is operated for an unusually long time at the same power level, or if there are no pots or pans on the cooktop when it’s switched on, the appliance switches off automatically. Another useful feature is the residual heat indicator, which reminds you not to touch the cooking zones when they are still hot.

TECHNICAL DATA
Voltage in V208-240
Dimensions in mm (width)30 3/8 (769)
Installation height incl. connection box in mm3 7/8 (98)
Dimensions in mm (depth)21 1/4 (538)
Internal cutout dimensions in mm (width) with flush installation749
Internal cutout dimensions in mm (depth) with flush installation518
External cutout dimensions in mm (width) with flush installation773
External cutout dimensions in mm (depth) with flush installation542
Weight in lbs (kg)​46 (21)
Total rated load in kW7.600
Frequency in Hz50-60
Length of power cable in m3 (1.2)
Dimensions in mm (height)3 1/8 (77)
Cutout dimension in mm (width) with surface-mounted installation​28 5/8 in (724 mm)
Cutout dimensions in mm (depth) with surface-mounted installation20 1/2 in (518 mm)
Cut-out dimensions (W x D) with surface-mounted installation in mm28 5/8 in (724 mm) x 20 1/2 in (518 mm)
Cut-out dimensions (W x D) with flush-fit installation in mm749/773 x 518/542
Dimensions (H x W x D) in mm3 1/8 (77) x 30 3/8 (769) x 21 1/4 (538)
