42" Kitchenaid 25.5 Cu. Ft. Built-In Panel-Ready Side-by-Side Refrigerator - KBSN742TPA
Literature
Book an Appointment with a KitchenAid Appliance Expert!
Caplan's can help choose the right products for your home. Request an appointment to visit our showrooms and be inspired.

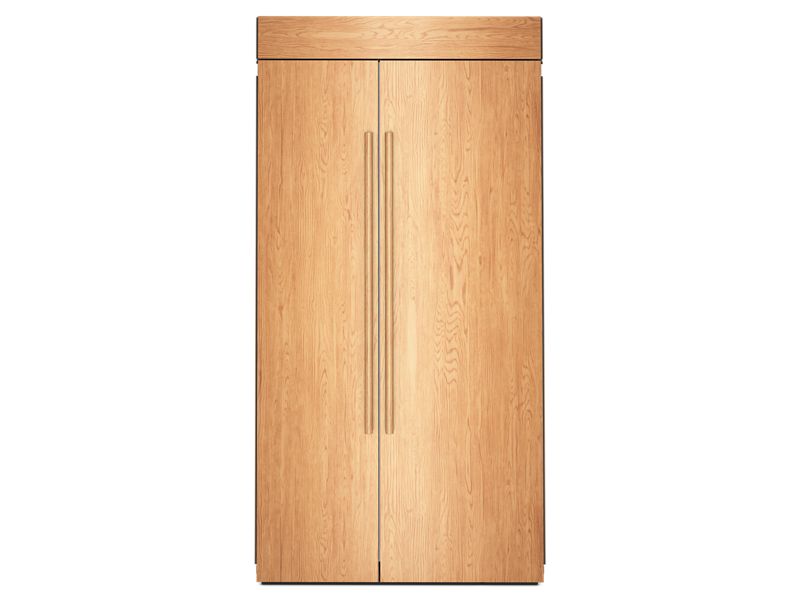

This Built-In Side-by-Side Refrigerator elevates your style with an Aesthetic Panel exterior. Multiple Installation Options allow you to choose between flush installation for an integrated look or proud for a prominent look. Signature Platinum Interior wows with wood-look trim and metallic accents, while the Under-Shelf Prep Zone utilizes unused space with included baking sheet and cake pan, designed to go directly from the refrigerator to the oven to the dishwasher.
| Dimensions | |
|---|---|
| Depth | 24.0 " |
| Width | 41.75 " |
| Height | 83.13 " |
| Carton Depth | 32.04 " |
| Carton Height | 86.57 " |
| Carton Width | 45.74 " |
| Gross Weight | 612.85 lbs |
| Net Weight | 582 lbs |
| Popular Height | 71 Inch Tall or Higher |
| Popular Width | 48 Inch Wide |
| Depth Closed Excluding Handles | 24.0 " |
| Depth With Door Open 90 Degree | 46.75 " |
| Cutout Width | 42.0 " |
| Cabinet Width | 42.0 " |
| Depth Excluding Doors | 22.38 " |
| Height To Top Of Cabinet | 83.13 " |
| Height To Top Of Door Hinge | 76.19 " |
| Height To Top Of Door Trim | 76.69 " |
| Freezer compartment | |
| Freezer Number Of Shelves | 2 Fixed Full-Width Wire 4 Adjustable Full-Width Wire |
| Door Bins | 5 Adjustable Full-Width |
| Door Type | Swing |
| Freezer Drawer Basket | 1 Fixed Full Width Upper 2 Full Width Lower |
| Light | Yes |
| Shelve | 2 Fixed Full-Width Wire 4 Adjustable Full-Width Wire |
| Exterior | |
| Cabinet Color | Grey |
| Cabinet Finish | Smooth |
| Door Finish | Smooth |
| Door Style | Flat |
| Hidden Hinge | Yes |
| Number Of Doors | 2 |
| Reversible Door | No |
| Filters | |
| Produce Preserver | No |
| Water Filter Location | Exterior |
| Water Filter Part Number | EDR3RXD1 |
| Dispenser | |
| Types Of Ice | Cubed |
| Dispenser Options | N/A |
| Dispenser Type | N/A |
| Icemaker | |
| Icemaker | Yes |
| Icemaker Location | Freezer |
| Refrigerator compartment | |
| Conventional Shelves | 1 Slide-Out - Wood Finish |
| Door Bins | 1 Full Width Non Adjustable Gallon 1 Full Width Non Adjustable Small Item 3 Adjustable Full-Width |
| Lighting | LED |
| Liner Finish | Platinum |
| Non Climate Control Drawers | 2 Full-Width |
| Number Of Interior Shelves | 4 |
| Spill Proof Glass Shelves | Yes |
| Supplementary Containers | 1 9x13 Cake Pan 1 9x13 Sheet Pan |
| Temperature Controlled Drawers | 1 Full-Width |
| AHAM Volumes And Shelf Area | |
| Refrigerator Volume Cu Ft | 16.31 |
| Freezer Volume Cu Ft | 9.21 |
| Total Capacity | 25.5 |
| Specifications | |
| Aesthetic | New Design |
| Customizable | Yes |
| Country Of Origin | USA |
| Extended Service Plan Parent | EW12IW1Y, EW12IW2Y, EW12IW4Y |
| Launch Date | March 2026 |
| Fingerprint Resistant | No |
| Certifications | |
| ADA Compliant | No |
| Cee Tier | Not Rated |
| Energy Star | No |
| UL | Yes |
| Star K Certified | Yes |
| CONTROLS | |
| Control Location | Interior Up Front |
| Control Lockout | N/A |
| Door Ajar Open Alarm | Yes |
| Max Cool Fast Cool | Yes |
| Sabbath Mode | Yes |
| Water Filter Indicator Reset | Yes |
| Electrical | |
| Amps | 15 |
| Volts | 120 |
| Configuration | |
| Installation | Built-In |
| Description | |
| Type Of Refrigerator | Side-by-Side |
| Details | |
| Cooling Type | Single Evaporator |
