42" KitchenAid 24.2 Cu. Ft. French Door Bottom Mount Refrigerator - KBFN542TPA

Caplan's can help choose the right products for your home. Request an appointment to visit our showrooms and be inspired.
Top Features

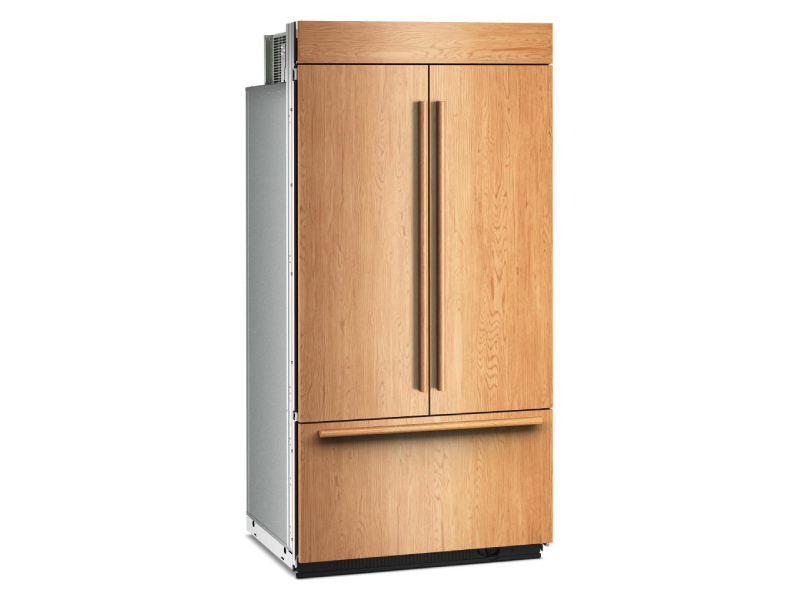

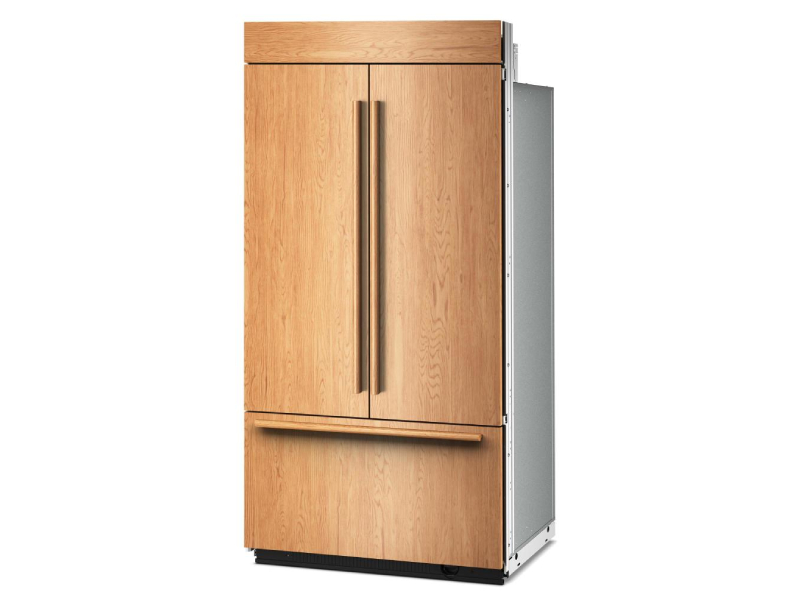

Multiple Installation Options
allow you to choose an installation style for your built-in based on your aesthetic preferences: overlay for a softly striking incorporated look or proud for a standout presence.

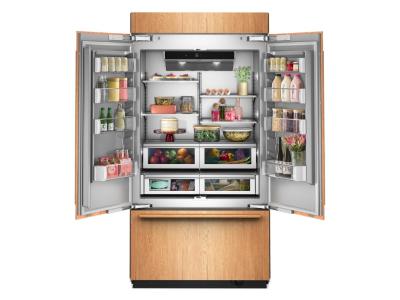

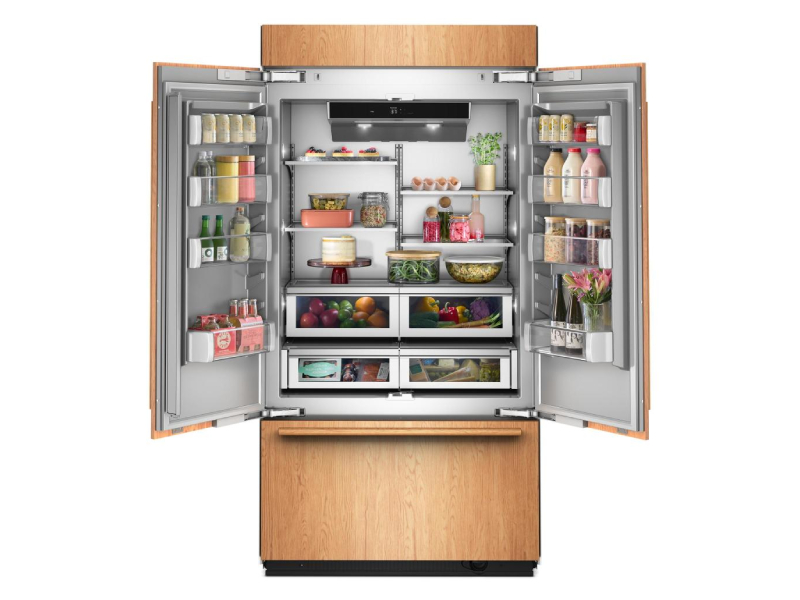

Signature Platinum Interior
wows from the inside out with premium craftsmanship and design. Metallic touchpoints, smoked crisper bins and ultra-bright LED lighting pop against the stunning silver-colored finish.

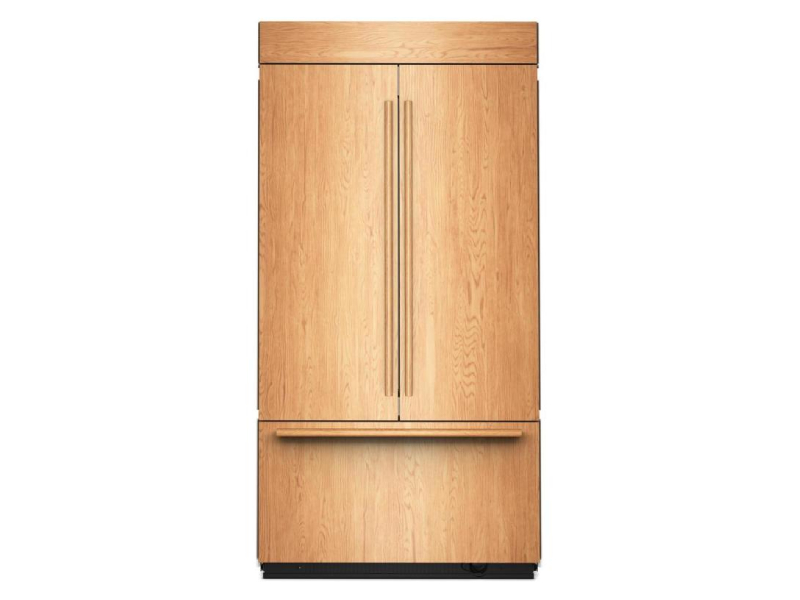

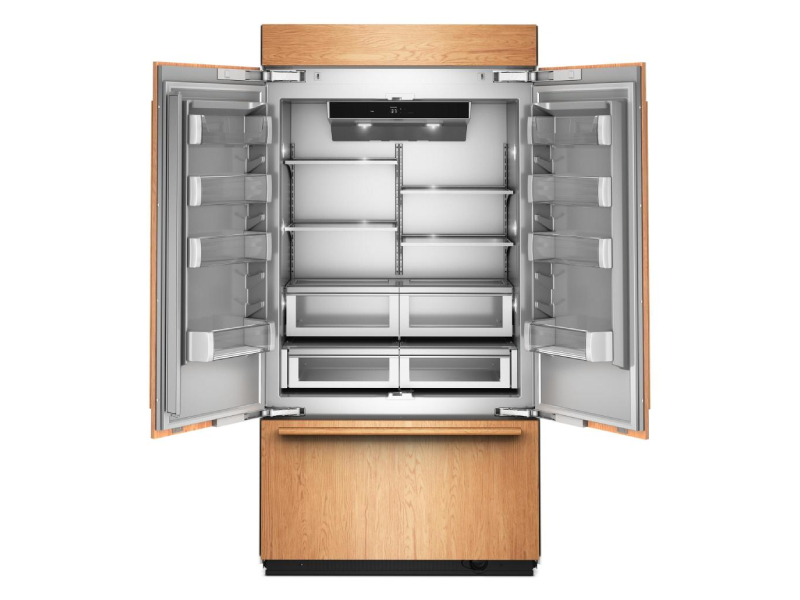

Panel-Ready Design
allows you to install custom front panels and handles over the refrigerator doors to create a seamless look with kitchen cabinetry. Panels and handles not included.
Additional Features
SatinGlide® Drawer System
adds a smooth experience to the crisper drawers. Its ball-bearing rollers enhance the opening and closing experience every time, whether it is nearly empty or fully loaded.
Adjustable Spill-Resistant Glass Shelves
feature premium glass, offering edge-to-edge storage for whatever you need. Plus, its nano-etched edges help prevent spills from overflowing into other parts of your refrigerator, and its design allows you to remove them for easy cleaning. Sleek metallic trim on the front edges adds a striking accent.
Personalized Door Stop
tailors your refrigerator to suit your space by setting the door to stop at 90°, 110° or 130°. This prevents the door from swinging open too widely, giving you the flexibility to load or find ingredients without hitting counters or handles.

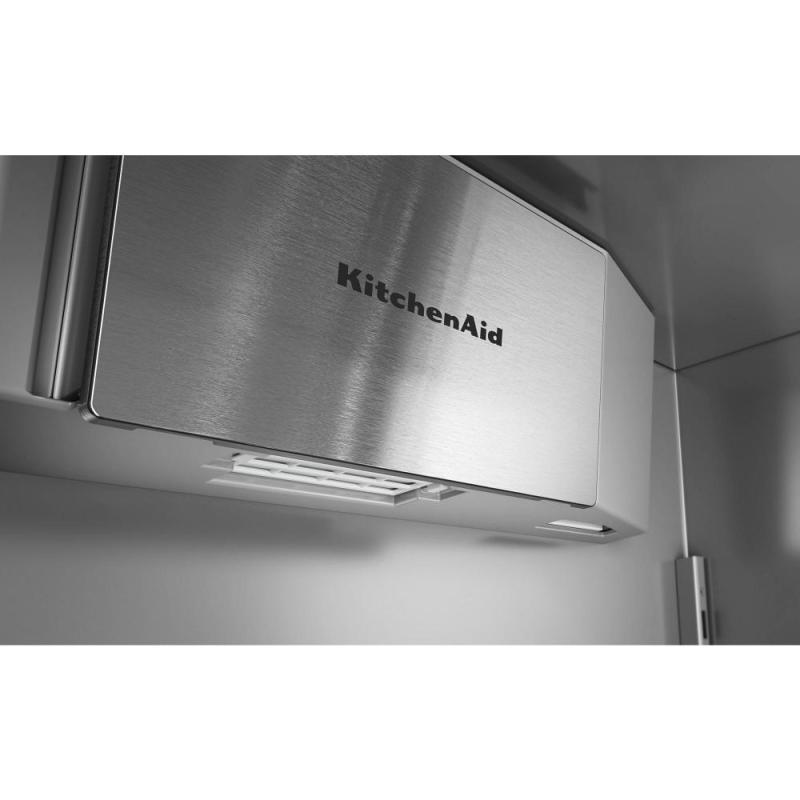

FreshFlowâ„¢ Air Filter
deodorizes 15x better than baking soda. The replaceable carbon-based filter neutralizes common food odors for up to 6 months.

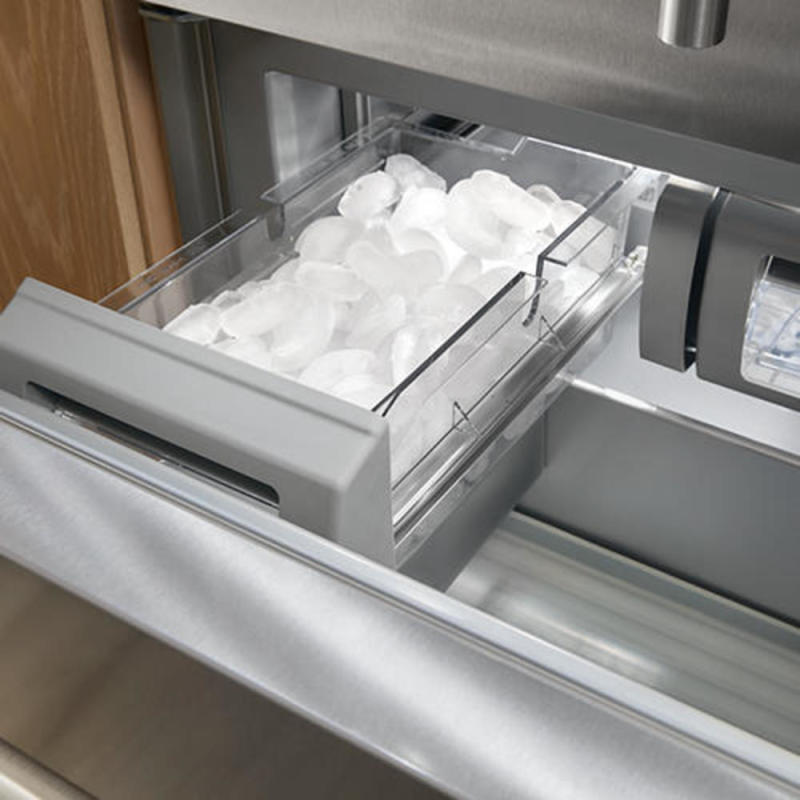

Automatic Ice Maker
ensures that you have a continuous supply of fresh, filtered ice for entertaining or everyday beverages and creations.
Ultra-Bright LED Lighting
gradually brightens to fully illuminate the freezer and refrigerator, making it easy to find what you need.
Max Cool
lets you use the touch of a button to drop refrigerator temperature to the coldest level, helping to chill groceries, beverages or ingredients for serving. After 24 hours, the temperature will automatically be restored to the previous setting.
Max Freeze
lets you use the touch of a button to drop freezer temperature to coldest level (-8F), so frozen goods can reach optimal temperatures. After 48 hours, the temperature will automatically be restored to the previous setting.

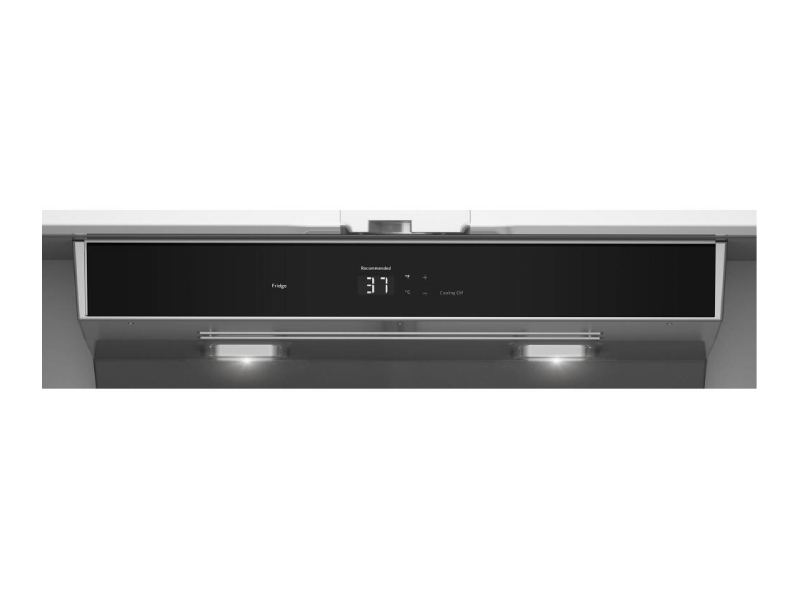

Intuitive Controls
provide an easy-to-use touch pad control system that puts every refrigerator function right at your fingertips. Up-Front Temperature Controls make it easy to choose temperature settings, control the ice maker and check the status of the water filter.
Produce Preserver
helps delay over-ripening to extend freshness of fruits and vegetables. This replaceable filter for crisper drawers absorbs the ethylene gas produced as part of the natural ripening process for up to 6 months.
Galloon Door Bins
maximize storage with thoughtfully designed and adjustable bins, accommodating gallon jugs, large containers and bulky items with ease.
| Dimensions | |
|---|---|
| Depth | 24.0 " |
| Width | 41.75 " |
| Height | 83.13 " |
| Carton Depth | 32.04 " |
| Carton Height | 86.57 " |
| Carton Width | 45.74 " |
| Gross Weight | 612.85 lbs |
| Net Weight | 552 lbs |
| Popular Height | 71 Inch Tall or Higher |
| Popular Width | 48 Inch Wide |
| Depth Closed Excluding Handles | 24.0 " |
| Depth With Door Open 90 Degree | 44.0 " |
| Cutout Width | 42.0 " |
| Cabinet Width | 42.0 " |
| Depth Excluding Doors | 22.38 " |
| Height To Top Of Cabinet | 83.13 " |
| Height To Top Of Door Hinge | 76.19 " |
| Height To Top Of Door Trim | 76.69 " |
| Freezer compartment | |
| Freezer Type | 2 Tier |
| Door Type | Pull-Out |
| Freezer Drawer Basket | 1 Full Width Lower Metal 1 Half Width Upper Plastic |
| Freezer Number Of Shelves | None |
| Light | Yes |
| Dispenser | |
| Types Of Ice | Cubed |
| Dispenser Type | N/A |
| Exterior | |
| Cabinet Color | Grey |
| Cabinet Finish | Smooth |
| Door Finish | Smooth |
| Door Style | Flat |
| Hidden Hinge | Yes |
| Number Of Doors | 3 |
| Reversible Door | No |
| Filters | |
| Fresh Flow Air Filter Included | Yes |
| Produce Preserver | No |
| Water Filter Location | Exterior |
| Water Filter Part Number | EDR3RXD1 |
| Icemaker | |
| Icemaker | Yes |
| Refrigerator compartment | |
| Door Bins | 2 Half-Width Gallon 4 Adjustable Half-Width |
| Lighting | LED |
| Liner Finish | Platinum |
| Non Climate Control Drawers | 4 Half-Width |
| Number Of Interior Shelves | 4 |
| Spill Proof Glass Shelves | 4 Adjustable Half-Width |
| AHAM Volumes And Shelf Area | |
| Freezer Volume Cu Ft | 6.45 |
| Refrigerator Volume Cu Ft | 17.6 |
| Total Capacity | 24.1 Cu Ft |
| Specifications | |
| Aesthetic | New Design |
| Customizable | Yes |
| Country Of Origin | USA |
| Extended Service Plan Parent | EW12IW1Y, EW12IW2Y, EW12IW4Y |
| Launch Date | March 2026 |
| Fingerprint Resistant | No |
| Certifications | |
| ADA Compliant | No |
| Cee Tier | Tier I |
| Energy Star | No |
| UL | Yes |
| CONTROLS | |
| Control Location | Interior Up Front |
| Control Lockout | N/A |
| Door Ajar Open Alarm | Yes |
| Max Cool Fast Cool | Yes |
| Sabbath Mode | Yes |
| Water Filter Indicator Reset | Yes |
| Electrical | |
| Amps | 15 |
| Volts | 120 |
| Configuration | |
| Installation | Built-In |
| Description | |
| Type Of Refrigerator | French Door |
| Details | |
| Cooling Type | Dual Evaporator |
