24" Miele Wall-Mounted Ventilation Hood in Stainless Steel - DAP 1627
Caplan's can help choose the right products for your home. Request an appointment to visit our showrooms and be inspired.
Caplan’s Picks
Product Information

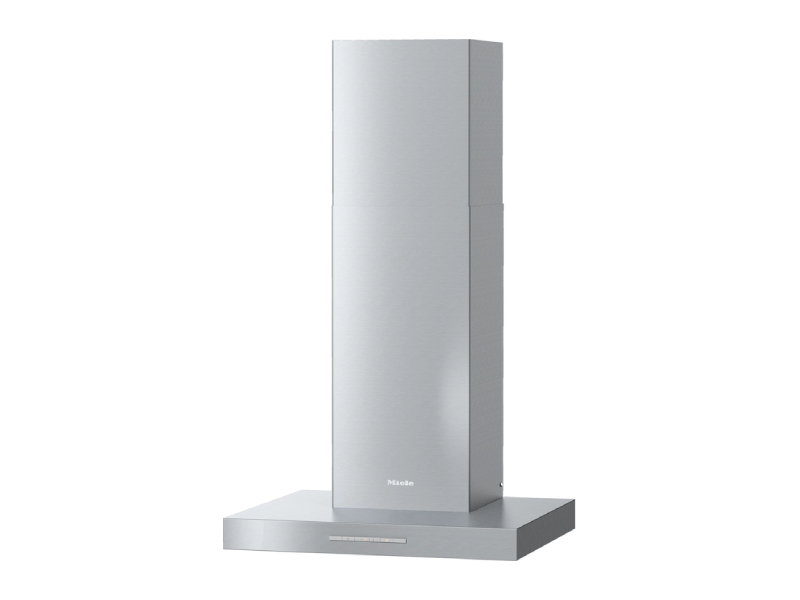

24-inch wall-mounted ventilation hood with EasySwitch light-touch switches for convenient operation and LED lighting
- Timeless design – canopy 23 5/8 (598) in (mm) wide
- Powerful – ?? in Booster level
- Efficient filtration - 10-ply stainless-steel grease filter
- Safe and easy to clean - Miele CleanCover
- Suitable for every home - with extraction or recirc. abilities
- Stainless steel grease filters (10-layer). Easy to use and effective against grease. Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
- Miele CleanCover. Convenience and safety in detail. Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Your exclusive advantages
Features

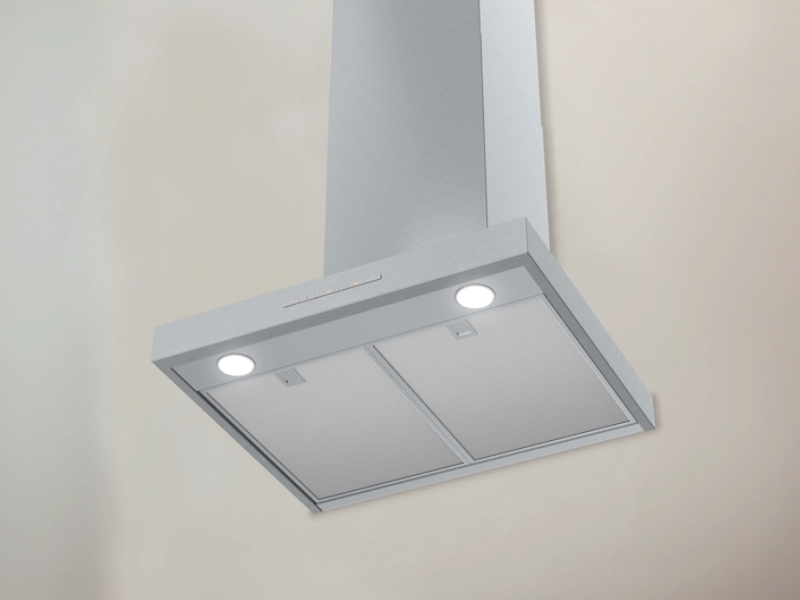

Stainless steel grease filters (10-layer)
Easy to use and effective against grease
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher. Miele Ventilation Hoods are equipped with a 10-ply stainless-steel grease filter and ensure that a large proportion of the grease is separated. When it is removed, the integrated fall protection system means that it can be handled safely and protects your cooktop from damage. The top layer and filter frame are made of high-quality stainless steel so that they do not discolour when washed in the dishwasher and continue to look good long term.
Miele CleanCover
Convenience and safety in detail
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor. Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. It is particularly easy to clean and protects you from coming in contact with cables and motor components. Miele attention to detail - for your convenience and safety.
Safety
Safety switch-off
Always on the safe side
Sensible, even in case of operating errors: the ventilation hood switches off automatically after 10 hours. The ventilation hood will switch off automatically after 10 hours. This ensures maximum safety even in case of operating errors.
| CONSTRUCTION TYPE | |
|---|---|
| Wall-mounted ventilation hood | • |
| DESIGN | |
| Colour | Stainless steel |
| Operating modes | |
| Recirculation conversion kit (order separately) | DUW 20 |
| Type of air guide | Can be retrofitted |
| Active charcoal filter (order separately) | DKF12-900P |
| USER CONVENIENCE | |
| EasySwitch | • |
| Operation | EasySwitch |
| Electronic controls | • |
| Power levels (excluding booster level) | 3 |
| Booster levels | 1 |
| Easy-to-clean CleanCover hood liner | • |
| Filter system | |
| Number of dishwasher-safe stainless steel grease filters (10-ply) | 2 |
| LIGHTING | |
| Number x W | 2 x 3 W |
| Light intensity in Lx | 330 lx |
| Colour temperature in K | 3000 Kelvin |
| Fan | |
| Dual-action fan | • |
| Vented system | |
| Air throughput and sound emissions | Values upon request |
| Air throughput in CFM in Booster | 510 |
| SAFETY | |
| Safety shut-off | • |
| TECHNICAL DATA | |
| Max. overall hood height for vented and external in mm | 39 5/8 (1005) |
| Max. overall hood height for recirculation in mm | 44 3/4 (1135) |
| Min. overall hood height for vented and external in mm | 27 (685) |
| Min. overall hood height for recirculation in mm | 32 1/8 (815) |
| Canopy width in mm | 23 5/8 (598) |
| Canopy height in mm | 2 1/2 (62) |
| Canopy depth in mm | 19 3/4 (500) |
| Net weight in kg | 47 (21.0) |
| Length of power cable in m | 4 (1.5) |
| Standard plug fitted | • |
| Total rated load in kW | 0.356 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Frequency in Hz | 60 |
| Number of phases | 1 |
| Installation notes | |
| Vent connection at top | • |
| Vent connection at top and rear | • |
| Diameter of exhaust duct in mm | 6 (150) |
| Telescopic chimney | • |
| ACCESSORIES SUPPLIED | |
| Non-return flap | • |
