36" Miele Stainless steel Built-In Insert Hood - DA 2390
Caplan's can help choose the right products for your home. Request an appointment to visit our showrooms and be inspired.
Caplan’s Picks
Product Information

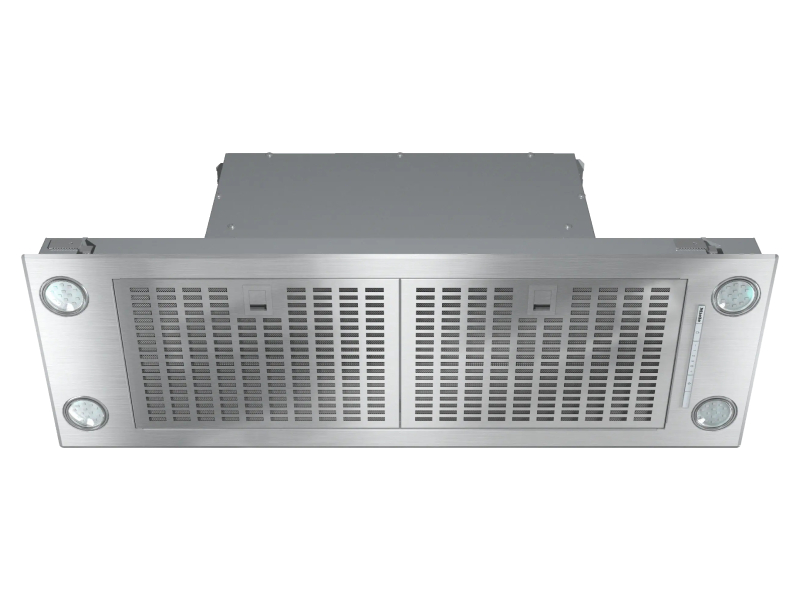

Extractor unit with energy-efficient LED lighting and light-touch switches for easy use.
- Customized kitchen design - fully integrated in 34 7/8 (884) in (mm) width
- Space saving - suitable for narrow upper cabinets over 30 cm deep
- Powerful – 488.52 (830) ft³/min (m3/h) m3/h in Booster level
- Efficient filtration - 10-ply stainless-steel grease filter
- Safe and easy to clean - Miele CleanCover
- Stainless steel grease filters (10-layer). Easy to use and effective against grease. Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
- Miele CleanCover. Convenience and safety in detail. Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Your exclusive advantages
Features

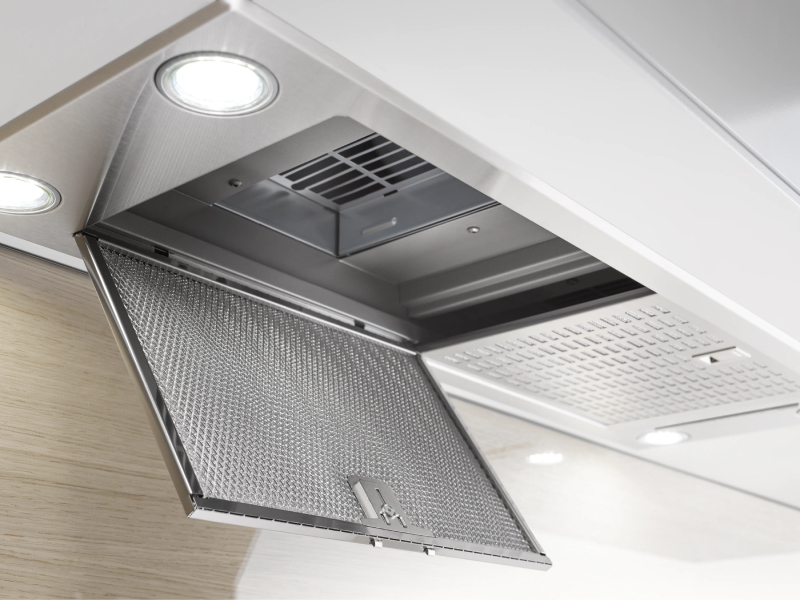

Stainless steel grease filters (10-layer)
Easy to use and effective against grease
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher. Miele Ventilation Hoods are equipped with a 10-ply stainless-steel grease filter and ensure that a large proportion of the grease is separated. When it is removed, the integrated fall protection system means that it can be handled safely and protects your cooktop from damage. The top layer and filter frame are made of high-quality stainless steel so that they do not discolour when washed in the dishwasher and continue to look good long term.
Miele CleanCover
Convenience and safety in detail
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor. Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. It is particularly easy to clean and protects you from coming in contact with cables and motor components. Miele attention to detail - for your convenience and safety.
Safety
Safety switch-off
Always on the safe side
Sensible, even in case of operating errors: the ventilation hood switches off automatically after 10 hours. The ventilation hood will switch off automatically after 10 hours. This ensures maximum safety even in case of operating errors.
| CONSTRUCTION TYPE | |
|---|---|
| Extractor unit | • |
| Operating modes | |
| Recirculation conversion kit (order separately) | DUU 151 |
| Type of air guide | Can be retrofitted |
| Active charcoal filter (order separately) | DKF 19-P |
| USER CONVENIENCE | |
| Electronic controls | • |
| Power levels (excluding booster level) | 3 |
| Easy-to-clean CleanCover hood liner | • |

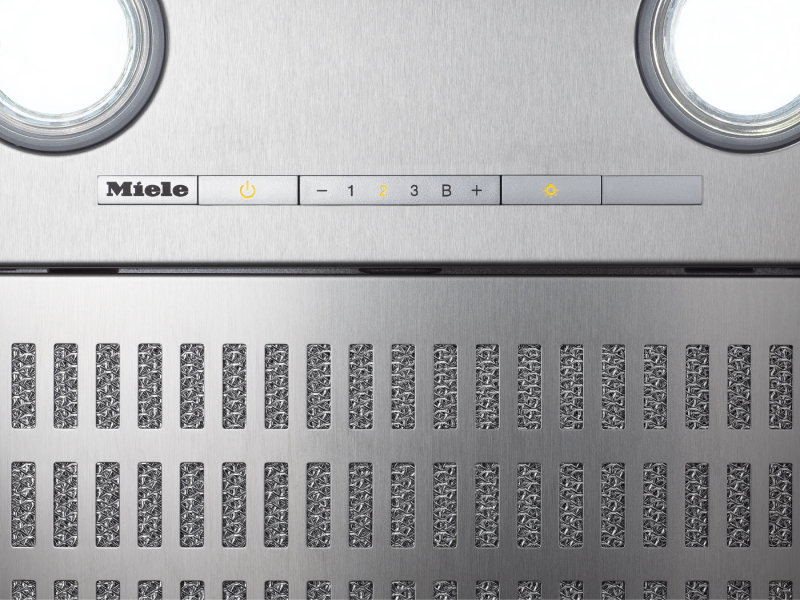

| Operation | Light-touch switches with LEDs |
| Booster levels | 1 |
| LIGHTING | |
| Number x W | 4 x 3 W |
| Light intensity in Lx | 500 lx |
| Colour temperature in K | 3000 Kelvin |
| Fan | |
| Dual-action fan | • |
| Vented | |
| Air throughput and sound emissions | Values upon request |
| SAFETY | |
| Safety shut-off | • |
| TECHNICAL DATA | |
| Standard plug fitted | • |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Number of phases | 1 |
| Canopy width in mm | 34 7/8 (884) |
| Canopy height in mm | 2 1/2 (63) |
| Canopy depth in mm | 11 3/4 (297) |
| Minimum height above electric cooktops in mm | 24 1/8 (610) |
| Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm | 26 (660) |
| Net weight in kg | 29 (13.0) |
| Length of power cable in m | 4 (1.5) |
| Total rated load in kW | 0.362 |
| Frequency in Hz | 60 |
| Installation notes | |
| Vent connection at top | • |
| Vent connection at top and rear | • |
| Diameter of exhaust duct in mm | 6 (150) |
| ACCESSORIES SUPPLIED | |
| Non-return flap | • |
| Filter system | |
| Number of dishwasher-safe stainless steel grease filters (10-ply) | 2 |
| DESIGN | |
| Colour | Stainless steel |
| Vented system | |
| Air throughput with Booster level 1 (m³/h) according to EN 61591 | 488.52 (830) ft³/min (m3/h) |
| Air throughput in CFM in Booster | 489 |
