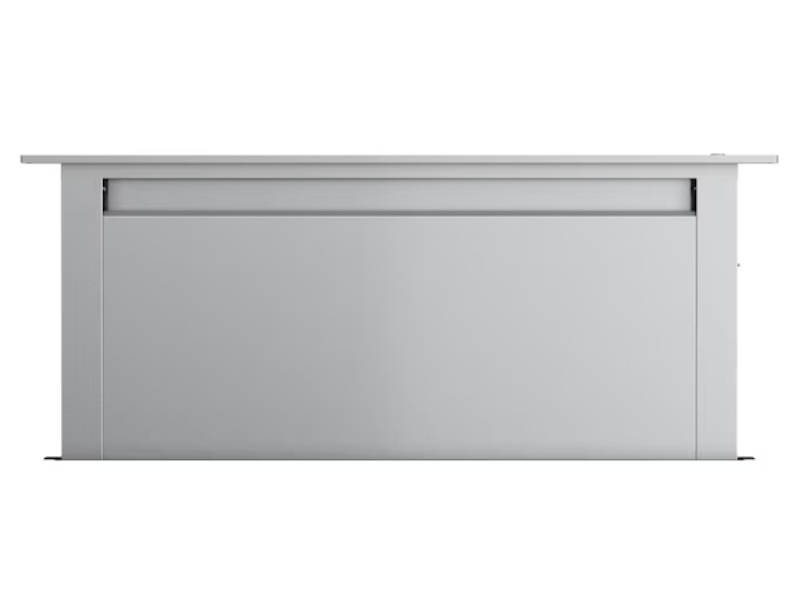

36" Zephyr Treviso Downdraft Ventilation - ZTV-E36AS
Literature
Book an Appointment with a Zephyr Appliance Expert!
Caplan's can help choose the right products for your home. Request an appointment to visit our showrooms and be inspired.
Similar Colours and Options :
Caplan’s Picks

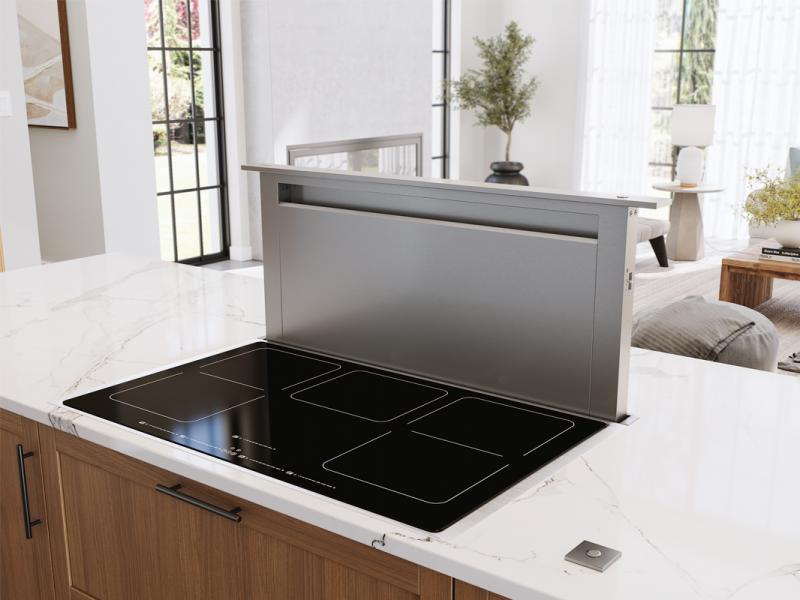

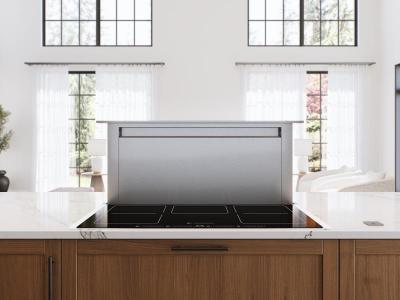

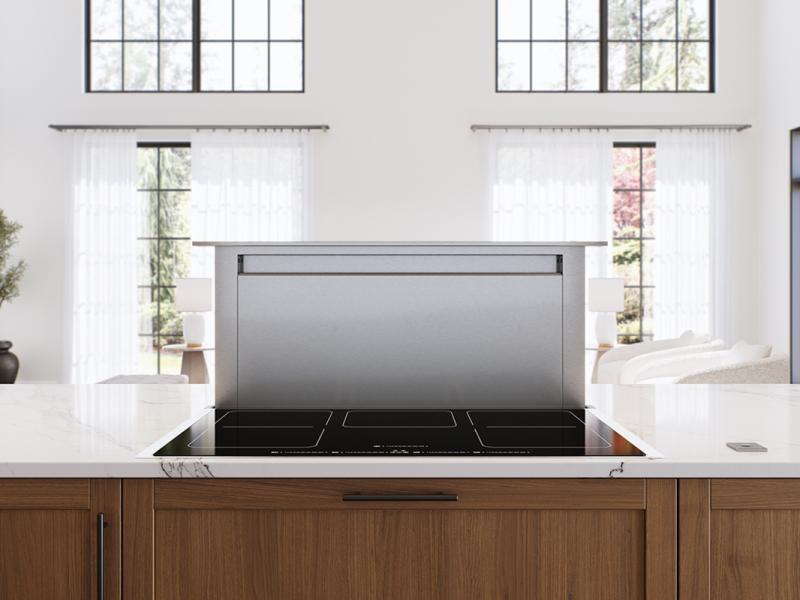

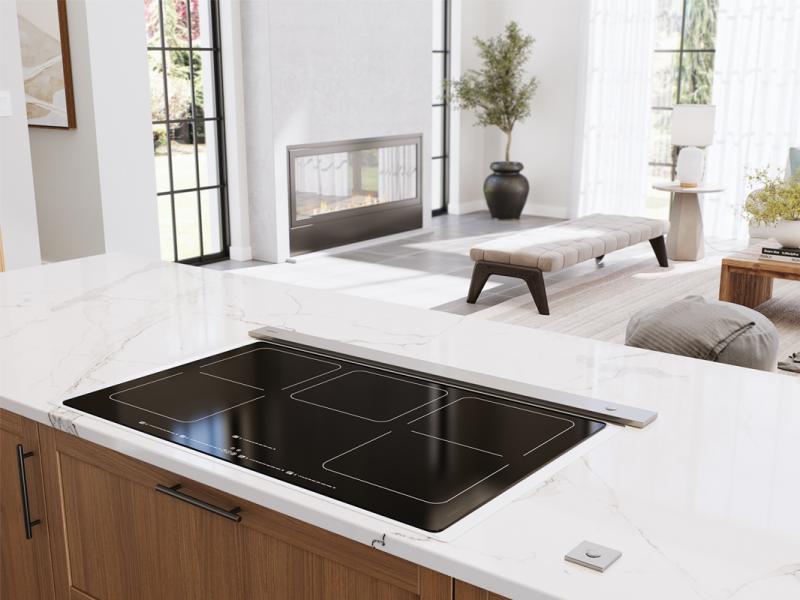

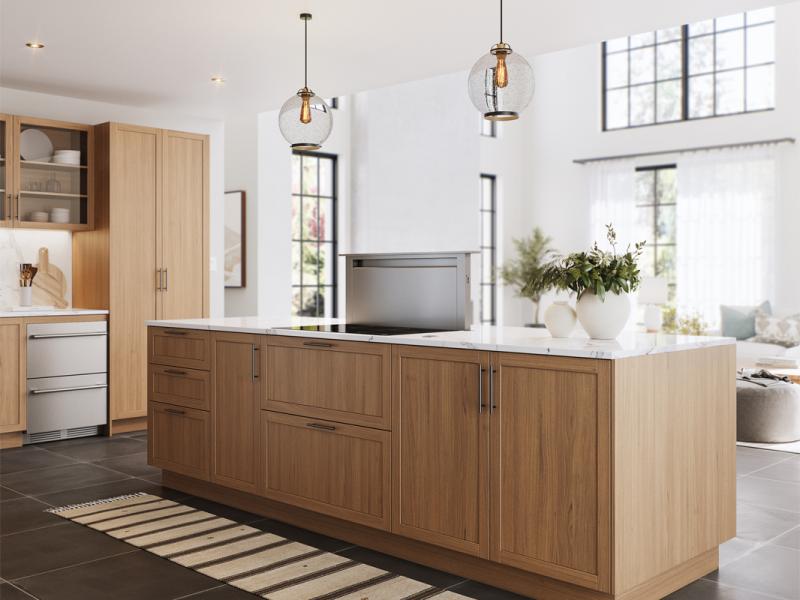

The Treviso Downdraft is chic, simple, and simply spectacular. Out of sight when not in use for those coveted open kitchen sightlines, this one-and-done hidden downdraft has everything you need, and nothing you dont. A sleek, efficient louver makes this a very visually pleasing solution for nearly any kitchen.
Features
- 14" Chimney Rise
- 3-Way Ducting
- Reversible Blower Housing
- 3-Speed Mechanical Slide Controls
- Auto On/Off
- Airflow Control Technology (ACT)

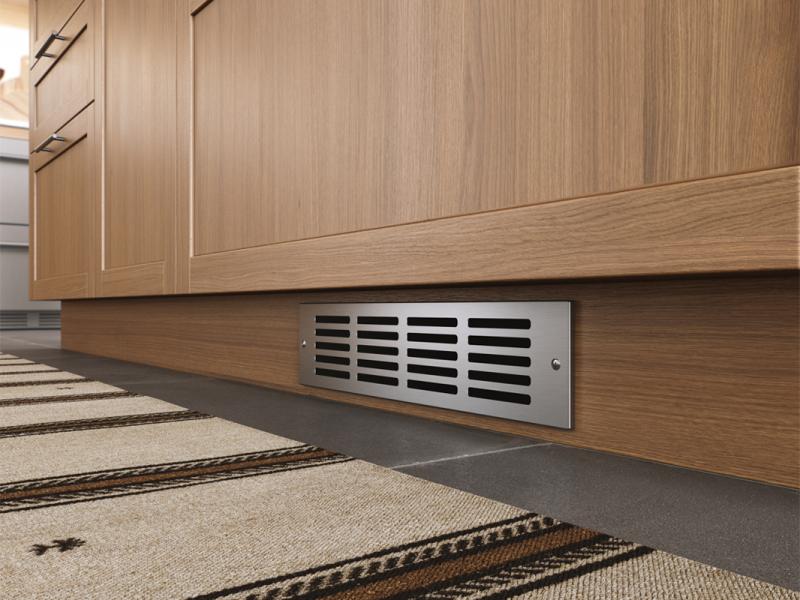

- Optional Recirculating Kit
- Optional ADA-Compliant Up/Down Remote Control
| Specification | |
|---|---|
| Auto On/Off** | Yes |
| Speed Levels3* | 3* |
| Controls | Mechanical Slide |
| ACT 390 CFM (Min. - Max.) | 200 - 390 |
| Size | 36” |
| Lighting | No |
| Filters | Stainless Steel Mesh x2 |
| 14” Chimney Rise | Yes |
| Reversible Blower Housing*** | Yes |
| 3-Way Ducting | Yes |
| Recirculating Option | Yes |
| WARRANTY | 2 years parts, 1 year labor |
| Size | 36” |
| Color | Stainless Steel |
| Features | |
| ACT™ Technology | 390 |
| BLOWER PERFORMANCE | |
| Sones (Min. - Max.) | 2 - 6 |
| Blower CFM (Min. - Max.) | 200 - 600 |
| DUCT SPECIFICATIONS | |
| Left/Right Ducting | 6” Round |
| Bottom Ducting | 6” Round |
| AC POWER | 120V, 60Hz at Max. 3.2A |
