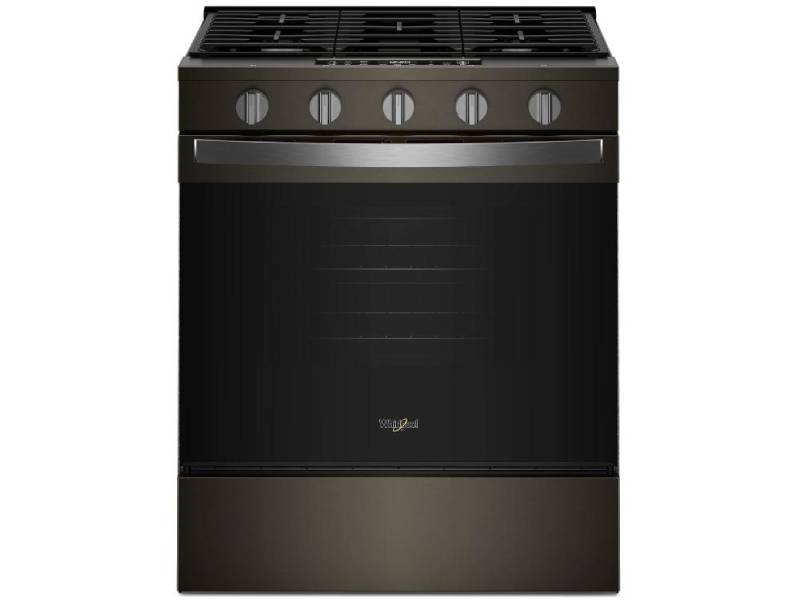

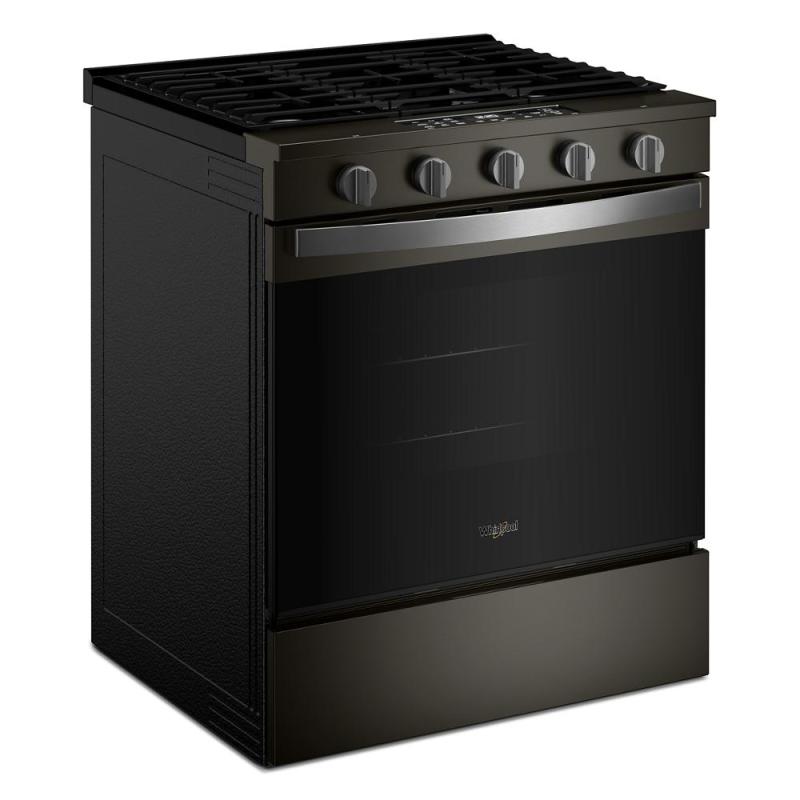

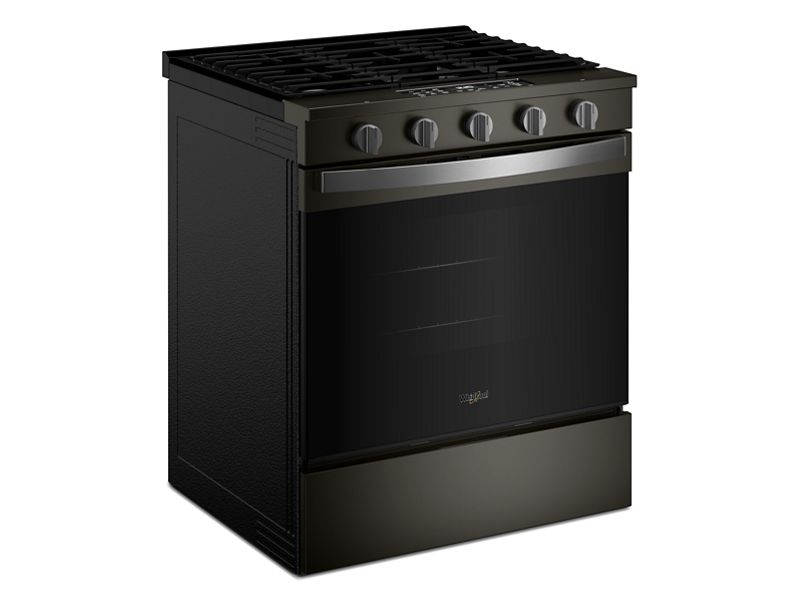

30" Whirlpool Gas Range with Air Cooking Technology - WSGS5030SV

Caplan's can help choose the right products for your home. Request an appointment to visit our showrooms and be inspired.
Similar Colours and Options :
Caplan’s Picks
Top Features

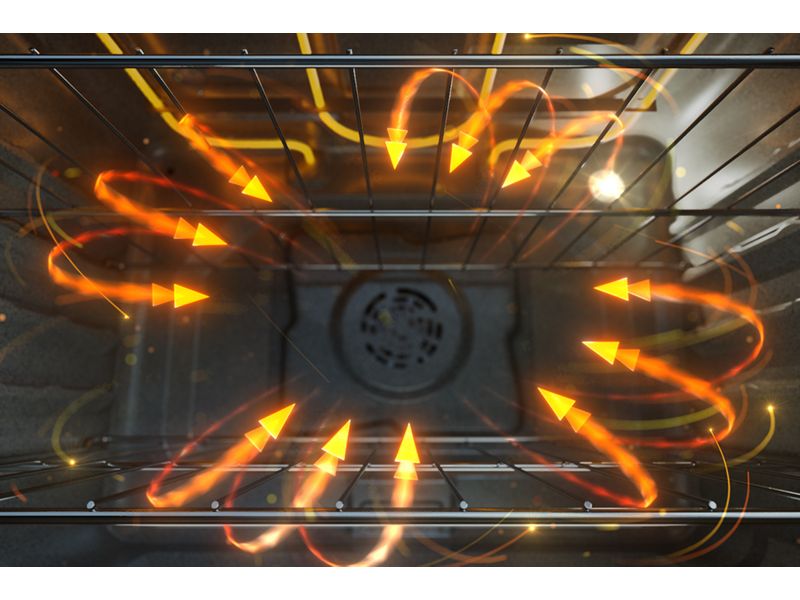

Air Cooking technology
Experience the difference with the dynamic air flow and intense heat of Air Fry and Air Baking
No Preheat Air Fry
Save time* with No Preheat Air Fry. Get the right heat at the right time with our most advanced Air Fry mode. Get fast, crispy results on chicken wings and mozzarella sticks without the guilt.
*Compared to YWFE550S0LZ
Air Baking
Go from gooey to golden and get even results when baking on multiple racks with Air Baking. Our high-speed fan optimizes air flow and drives consitent heat throughout the oven. Get golden results on breads, pastries and more.
Additional Features

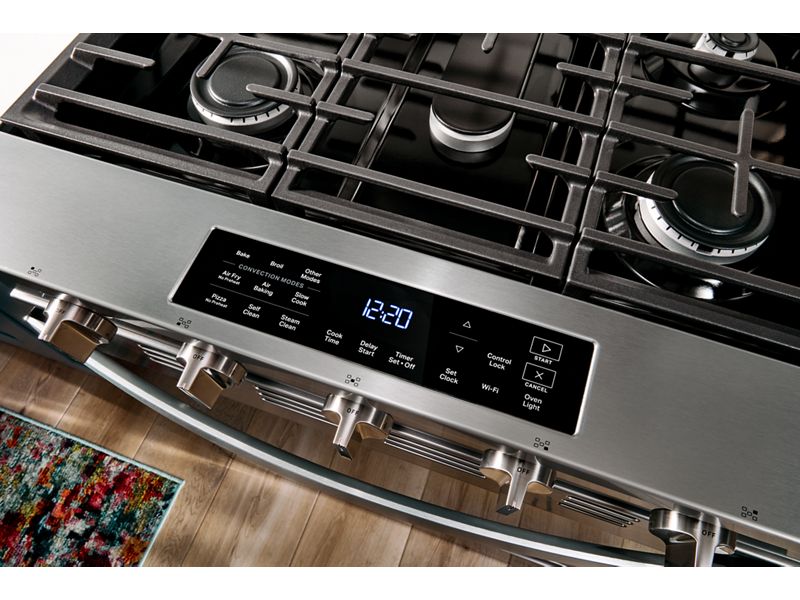

Cooking Modes
Take your favourite meals from fresh, fridge or freezer to fabulous with No Preheat Air Fry, Air Baking, No Preheat Mode, Bake, Slow Cook, Broil, and Keep Warm Cooking Modes.
Griddle Zone
Maximize your cooking space for a variety of mealtime options with Griddle Zone. Two individual heating elements combine to form one larger one, making it easy to cook up all that delights, all at once.
High Speed Preheat
Cook for a crowd and get dinner going quickly with our High Speed Preheat Oven. Our specially designed oven preheats in under 8 minutes* and fits large dishes like a full-sized 20 pound turkey with your side dishes. Get food on the table with our fastest preheat available.
*Using rapid preheat bake cycle to 350 degrees when cooktop is not in use.
SpeedHeat™ Burner
Use the SpeedHeat™ Burner to boil 20% faster* with high heat, so you can get dinner to the table quickly.
*Compared to 10K burner on the same model
Air Reheat
Connect your range to skip microwaving and add crispness to leftovers with Air Reheat. Our high-speed fan delivers the right heat at the right time to quickly bring food up to temp. Add life back to leftovers like pizza and more with Air Reheat.
*Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.ca/connect.
Air Roast
Seal in flavours and juices for meat and poultry with Air Roast. Our high-speed fan drives air flow to optimize heat through longer cook times. Enjoy the full flavour of hearty dishes like pot roast and whole chicken.
Air Broil
Melt, char and sear in a snap with Air Broil. Our high-speed fan drives air flow to drives intense heat directly to the top of the oven. Prepare juicy chops, crispy vegetables and gooey s'mores with the added power of intense air-driven heat.

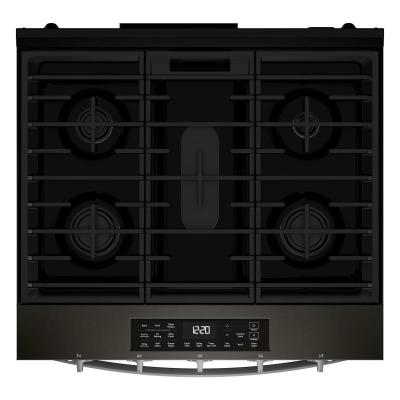

Edge-to-Edge Grates

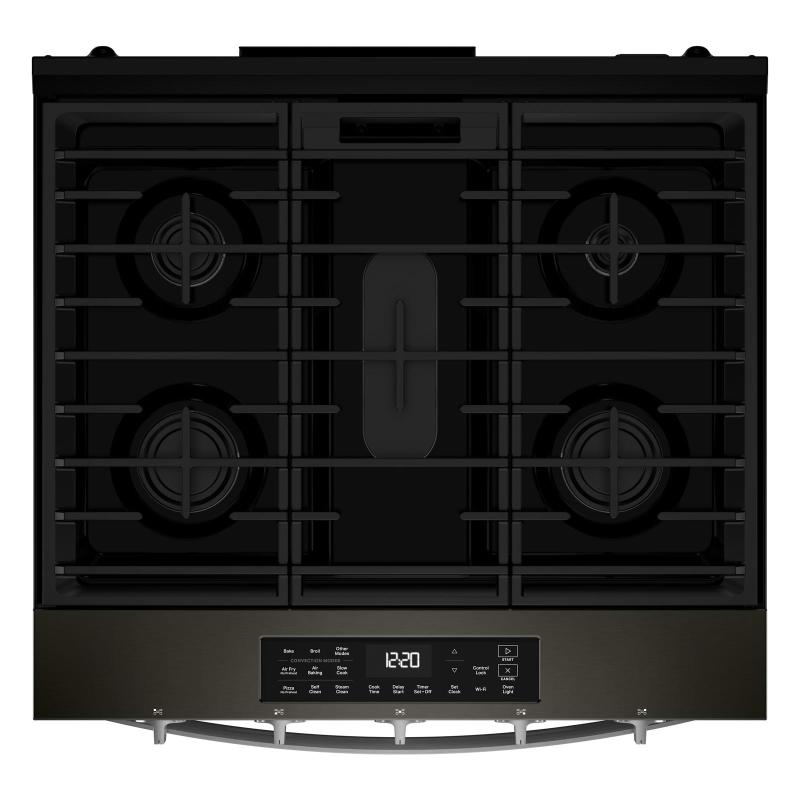

Enjoy plenty of space to sauté, boil and simmer with Edge-to-Edge Cast-Iron Grates and the flexibility of a cooktop with a range of burner sizes and power levels.
Smart Range
When you’re busy elsewhere, use your smartphone to get dinner started by remotely preheating the oven. Or, when your hands are full, use your compatible voice-enabled device to adjust the cook time or temperature with a voice command.*
*Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.ca/connect.
Smart Feature Updates
Stay on top of the latest cooking features and unlock new ones over time. Explore more ways to cook with updates through the Whirlpool app. *Appliance must be connected. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.ca/connect.
Steam & Self Clean Cycles
Easily clean your oven with the adjustable Self Clean cycle that can be customized based on the amount of spills and splatters. For lighter messes, use the Steam Clean setting to quickly and easily loosen residue inside the oven without harsh chemicals or cleaners—just add water, run the cycle and wipe away.
No Preheat Mode
Take preheating off your plate and cook up frozen faves with No Preheat Mode. Simply press a few buttons and let your oven calculate the proper cooking time.
Broil
Redefine mealtime with Broil to make crispy-melty nachos, juicy-seared meat, toasty grilled cheese and more.
Warm Zone
Use the designated Warm Zone to keep your food warm on the cooktop as you prep the rest of your meal.
Keep Warm Setting
Use the Keep Warm setting in the oven to help your dishes stay warm until your family is ready to dig in.
Cooktop Flexibility
Easily cook multiple dishes at once with a flexible cooktop that offers a range of element sizes and power levels.

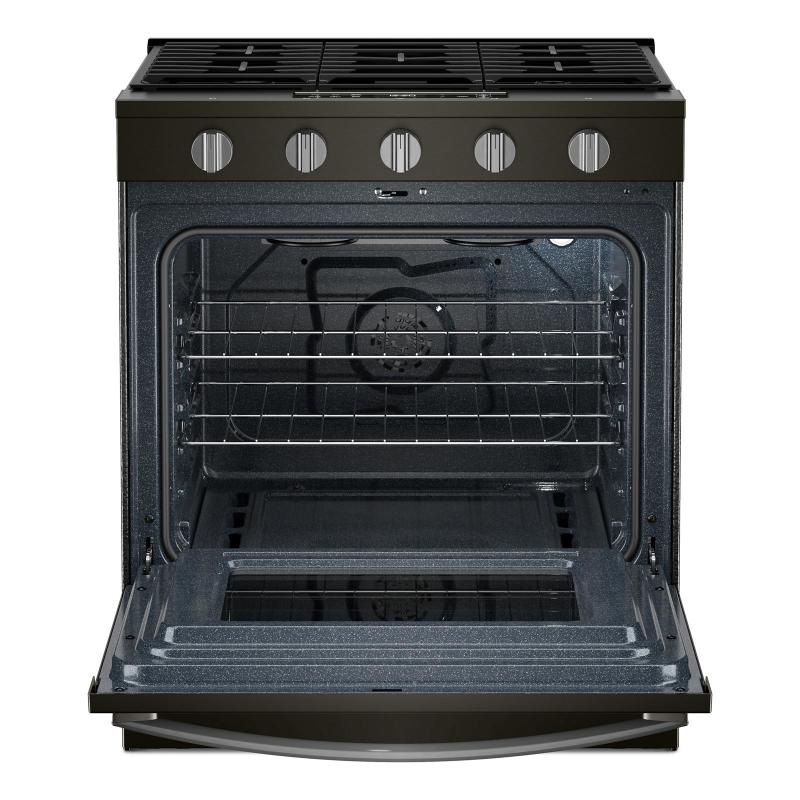

Large Capacity Oven
Cook for a crowd and fit large dishes, like a full-sized turkey, into the spacious Large Capacity 5.0 cu. ft. oven.
Storage Drawer
A Storage Drawer in the bottom of your range allows easy access to the items you use most and opens up space elsewhere.
Sabbath Mode
Sabbath mode keeps the oven in Bake mode until it can be shut off, allowing you to cook and warm food during the Sabbath. All other oven settings, including temperature displays, sounds, changes in light status and cleaning cycles will be disabled.
Dimensions | |
---|---|
Depth | 25.4 " |
Width | 29.9 " |
Height | 36.6 " |
Carton Depth | 31.0 " |
Carton Height | 43.0 " |
Carton Width | 32.0 " |
Gross Weight | 205.0 lbs |
Net Weight | 189 lbs |
Depth With Door Open 90 Degree | 47.7 " |
Maximum Height | 42.1 " |
Minimum Height | 36.6 " |
Cutout Depth | 24.0 " |
Cutout Height | 36.0 " |
Cutout Width | 30.0 " |
Capacity FT3 (cubic feet) | 5.0 |
Depth Closed Excluding Handles | 27.4 " |
Depth Closed Including Handles | 29.1 " |
Details | |
Oven Control Location | Front Control |
Rack Guide Type | Embossed |
Oven Rack Type | 2 Standard |
Oven Light Type | Halogen |
Oven Light Switch Location | Oven Control |
Oven Interior Width In Inches | 24.2 |
Oven Interior Depth In Inches | 19.0 |
Oven Cooking System | Convection |

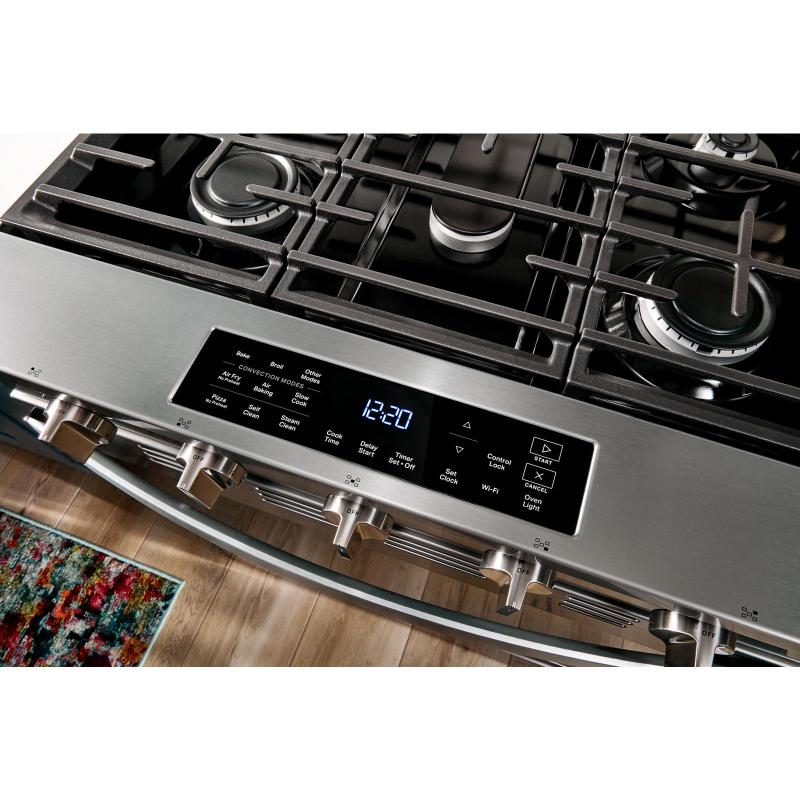

Oven Control Type | Tap Touch |
Oven Control Knob Type | N/A |
Oven Cleaning Type | Steam Clean |
Number Of Rack Guides | 5 |
Number Of Oven Racks | 2 |
Number Of Oven Lights | 1 |
Interior Color | Blue |
Hidden Bake Element | Hidden |
Cooktop Surface Material | Porcelain Coated Steel |
Convection Functions | No |
Convection Element Type | Fan |
Broiler Location | Top Center |
Broiler Element Power | 1300WElectricBroil |
Bake Element Power | 16500BTU |
Electrical | |
Hz | 60 |
Amps | 15 |
Power Cord Included | Yes |
Watts | 1400 |
Volts | 120 |
Features | |
Heating Element On Indicator Light | Yes |
Total Gas Btus Oven S | 16,500 |
Total Gas Btus Cooktop | 60,000 |
Power Outage Compatible | Yes |
Natural Gas Convertible | No |
LP Convertible | Yes |
Hot Surface Indicator Light | Yes |
Griddle | No |
Automatic Convection Conversion Temperature Adjust | No |
Cooktop Details | |
Center Rear Element Burner Size | N/A |
Grate Details | Dishwasher Safe Matte Finish Porcelain Coated Steel Grates |
Cooktop Element Style | Sealed Burners |
Cooktop Control Type | Knobs |
Cooktop Control Location | Front |
Cooktop Configuration | All Burners |
Center Rear Element Burner Type | Sealed Burner |
Center Rear Element Burner Power | 12000BTU |
Auto Re Ignition | Yes |
Right Front Element Burner Power | 18000BTU |
Right Rear Element Burner Type | Simmer |
Right Rear Element Burner Size | N/A |
Right Rear Element Burner Power | 5000BTU |
Right Front Element Burner Type | Extra Large |
Right Front Element Burner Size | N/A |
Number Of Grates | 3 |
Number Of Cooking Element Burners | 5 |
Left Rear Element Burner Type | Standard |
Left Rear Element Burner Size | N/A |
Left Rear Element Burner Power | 10000BTU |
Left Front Element Burner Type | Large |
Left Front Element Burner Size | N/A |
Left Front Element Burner Power | 15000BTU |
Ignition Type | Direct Spark Ignition |
CONTROLS | |

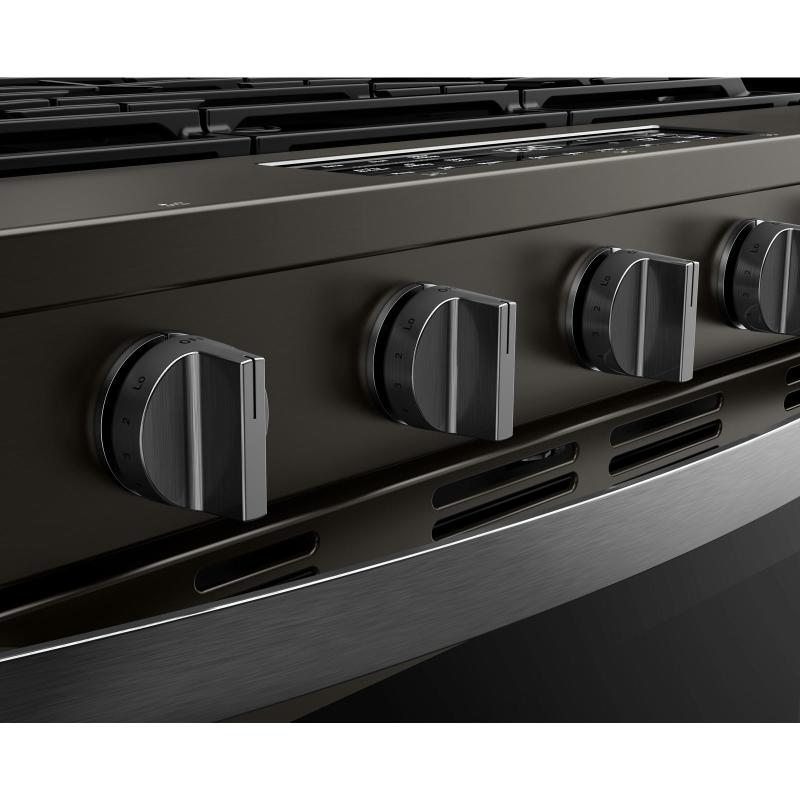

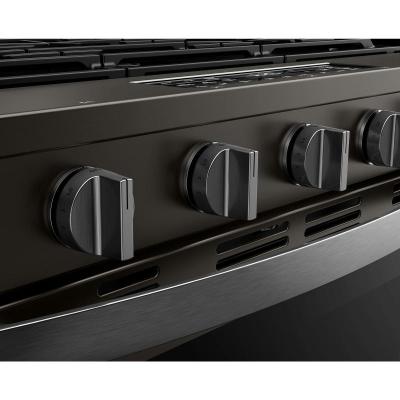

Control Type | Knobs |
Knob Type | Weighted |
Knob Color | Black Stainless |
Specifications | |
Extended Service Plan Parent | EW07IW1Y, EW07IW2Y, EW07IW4Y |
Optional Accessories | 4396096RB, W11692811 |
Matte Finish Vs Satin Finish | Matte Finish |
Dishwasher Safe | Yes |
Cast Iron Vs Porecelain | Porcelain Coated Grates |
Country Of Origin | USA |
Exterior | |
Handle Type | Reach-Through Handle |
Handle Material | Metal |
Handle Color | Black Stainless |
Drawer Type | Storage Drawer |
Door Removable | Yes |
Configuration | |
Range Configuration | Slide-In |
Oven Configuration | Single Oven |
Configuration and Overview | |
Fuel Type | Gas |
Compatibility | |
Works With | Amazon Alexa Android Google Assistant Nest iOS |
Connectivity | App Bluetooth Remote Access Voice Controlled WiFi |
Certifications | |
UL | Yes |
Star K Certified | Star K Certified |
CUL | Yes |
ADA Compliant | No |
Description | |
Size In | 30 |
Range Type | Slide-in |
