24" KitchenAid Undercounter Wine Cellar with Full-Extension Metal-Front Racks - KUWL324SSB

Caplan's can help choose the right products for your home. Request an appointment to visit our showrooms and be inspired.
Key Features
- Fully Flush Installation with Hidden Hinges
- 46 Standard Wine Bottle Capacity
- Temperature Monitoring System
Overview

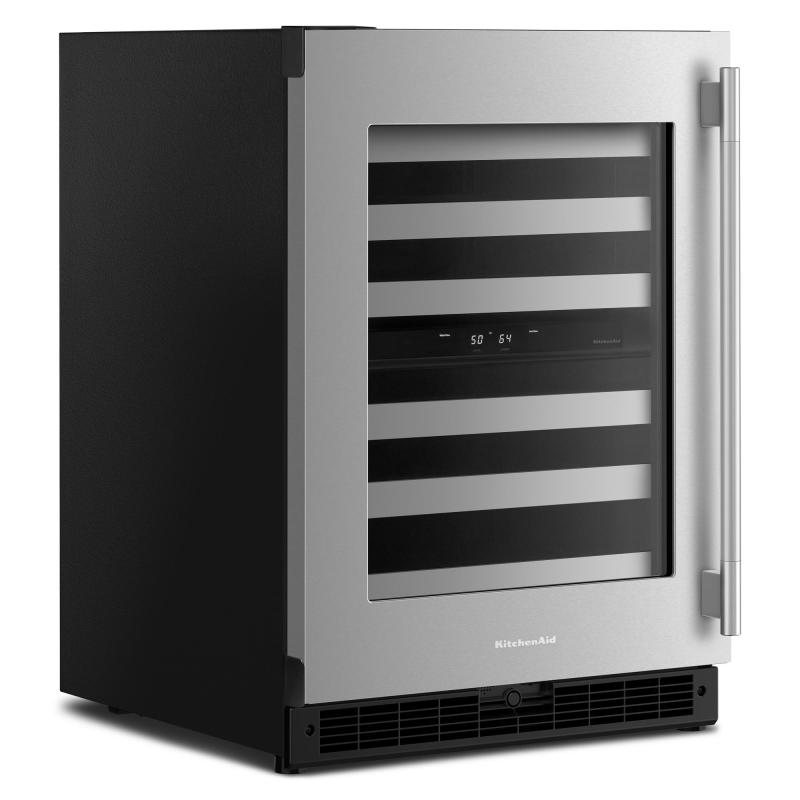

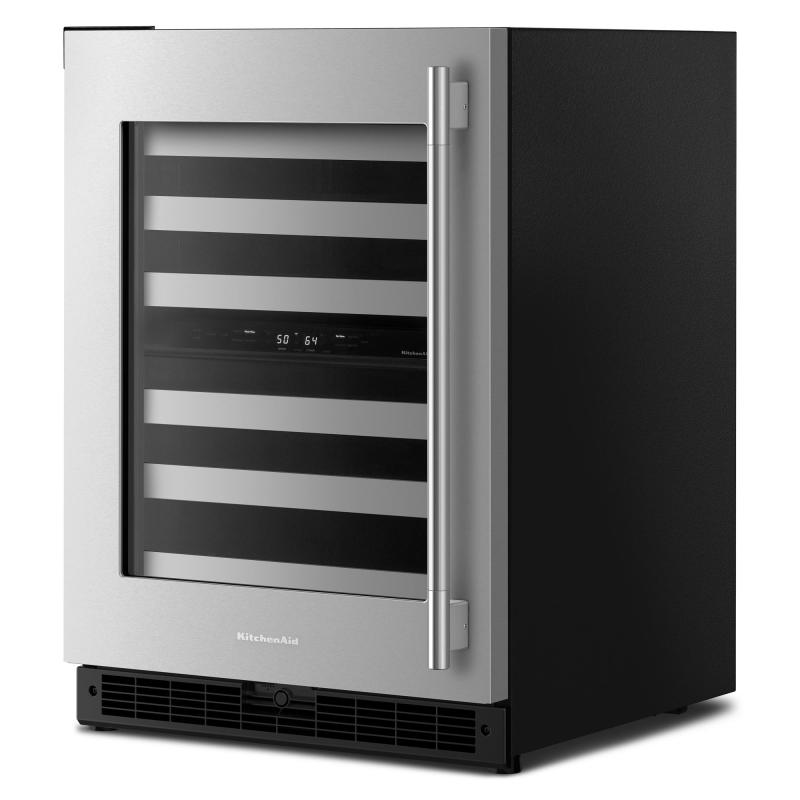

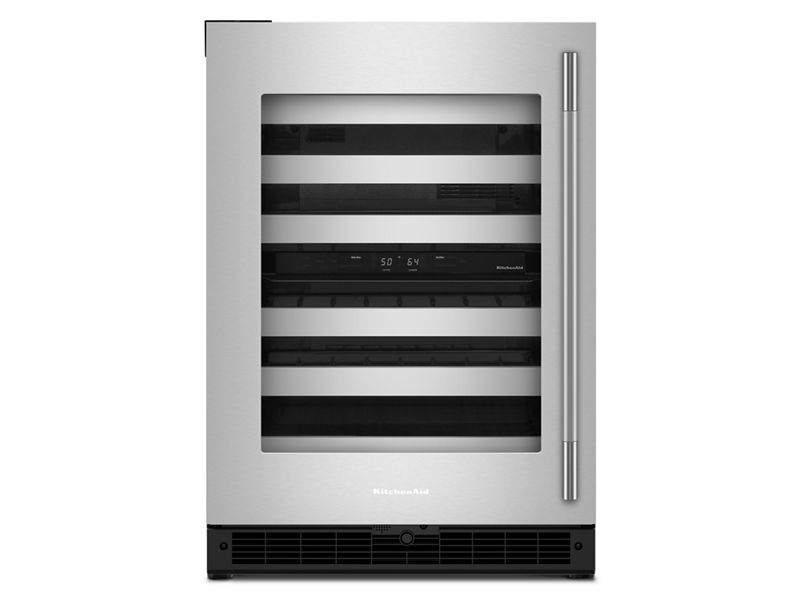

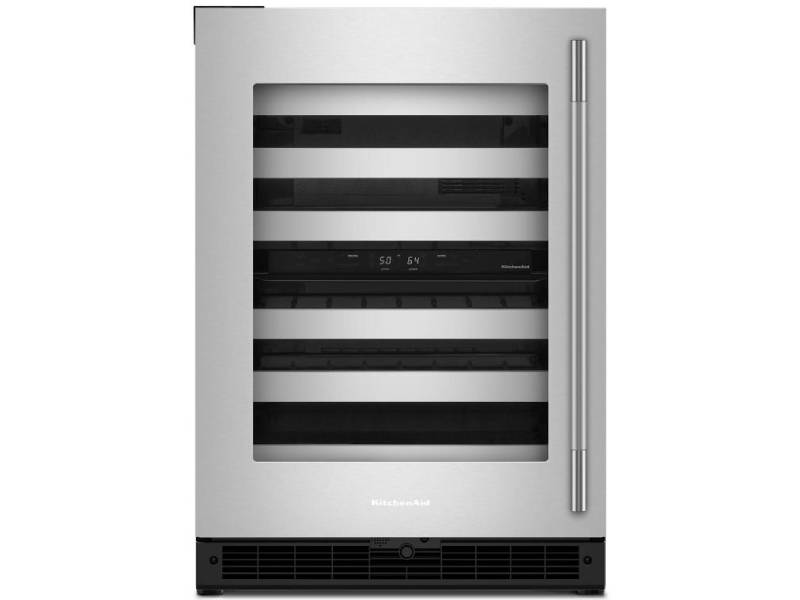

24" Undercounter Wine Cellar with Full-Extension Metal-Front Racks
This 24" Undercounter Wine Cellar with Full-Extension Metal-Front Racks stores up to 46 standard Bordeaux-size bottles. Motion-Activated LED Lighting turns on as you approach, making it easy to see what’s inside. Fully Flush Installation with Hidden Hinges provides a built-in look within cabinetry.
Features
Fully Flush Installation with Hidden Hinges
provides a built-in look within a standard 24" base cabinet, so the wine cellar seamlessly blends in, letting your style stand out. Hidden hinges allow the wine cellar door to sit flush with surrounding cabinet fronts when closed yet easily swing open a full 115°.

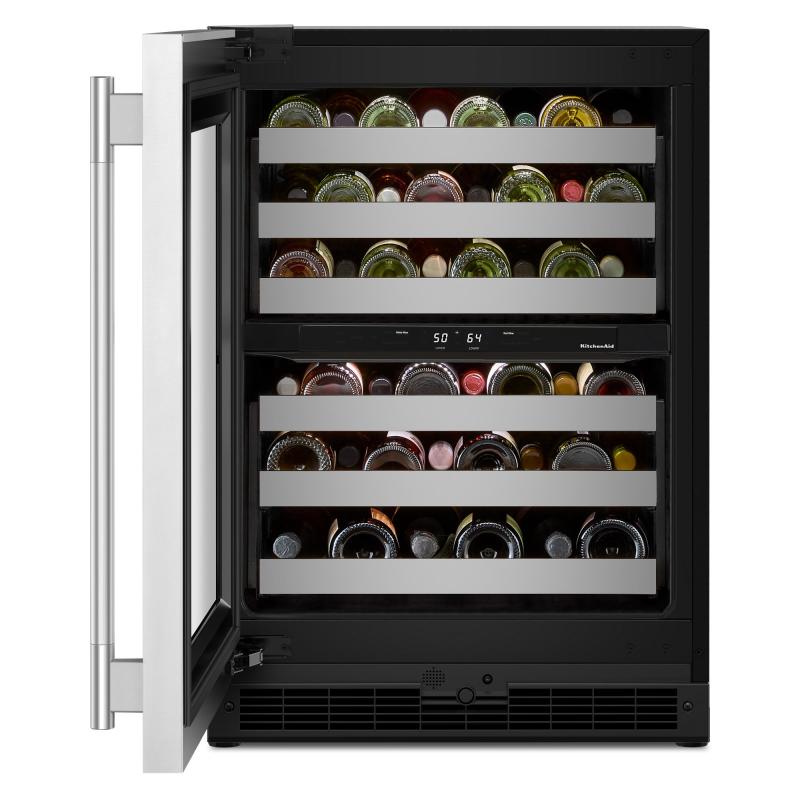

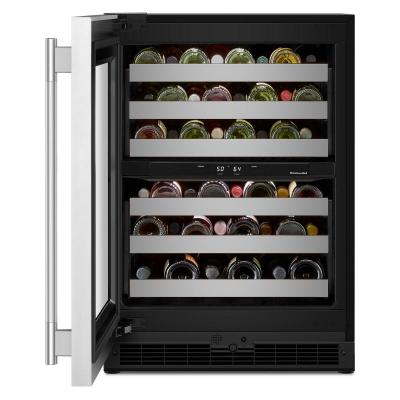

46 Standard Wine Bottle Capacity
so you can store all your favorite wines easily. Six wine racks hold up to 46 standard Bordeaux-size bottles, including five upper racks to store 8 Bordeaux-size bottles and a lower rack to store 6 Champagne-style bottles.
Temperature Monitoring System
uses sensors to monitor temperatures inside the wine cellar for added peace of mind. If the system detects temperatures above 70°F for more than 4 hours, an over-temp alarm and indicator light will alert you that service is needed.

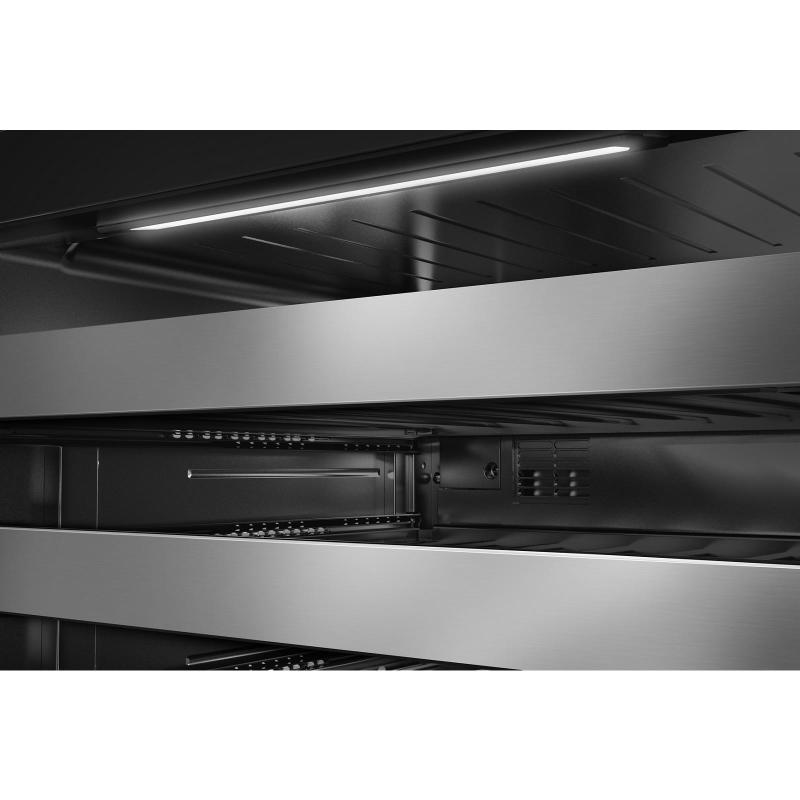

Motion-Activated LED Lighting
turns on inside as you approach, so you can see what's inside without opening the door. Lights will gradually dim and turn off when not in use.
Two Temperature-Controlled Zones
let you separate reds and whites to store and serve at your ideal temperature. Adjust the top zone from 42–54°F for whites and the bottom zone from 42–64°F for reds.
SatinGlide® Full-Extension Metal-Front Racks
pull all the way out, making it easy to restock bottles and find just the one you want when serving. Metal fronts let you coordinate with your home decor.

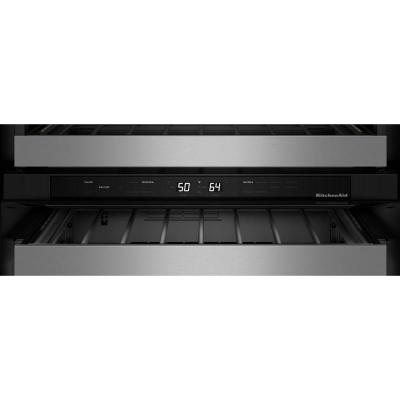

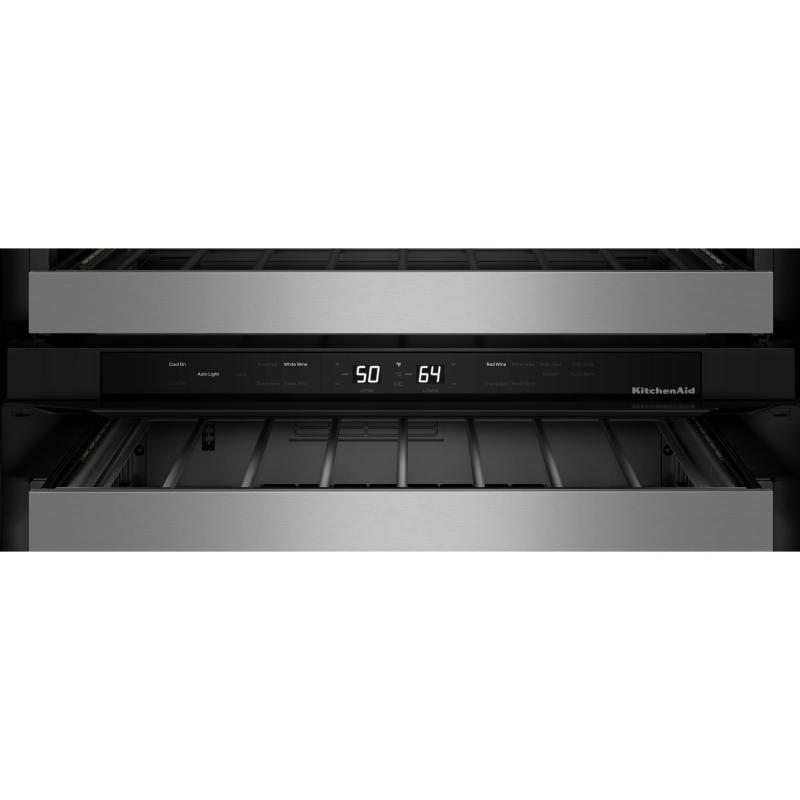

Backlit Touch Controls
make it easy to choose settings for what you're storing. Located on the divider between the two temperature zones, the lighted control panel displays current temperatures for each zone and other status alerts.
Door Alarm
alerts you if the door has been left open for five minutes or more and repeats every two minutes until you close the door or touch the controls.
UV-Protected Thermal Glass Door
filters UV rays to help protect your favorite wines from the damaging effects of heat and light.
Sabbath Mode (Star-K Certified)
disables automatic lights and alarm tones to meet kosher requirements for use on the Jewish Sabbath and other religious holidays.
| Certifications | |
|---|---|
| ADA Compliant | No |
| Star K Certified | Yes |
| Exterior Details | |
| Cabinet Finish | Textured |
| Door Opening Direction | Left |
| Handle Location | Vertical |
| Reversible Door | No |
| Window | N/A |

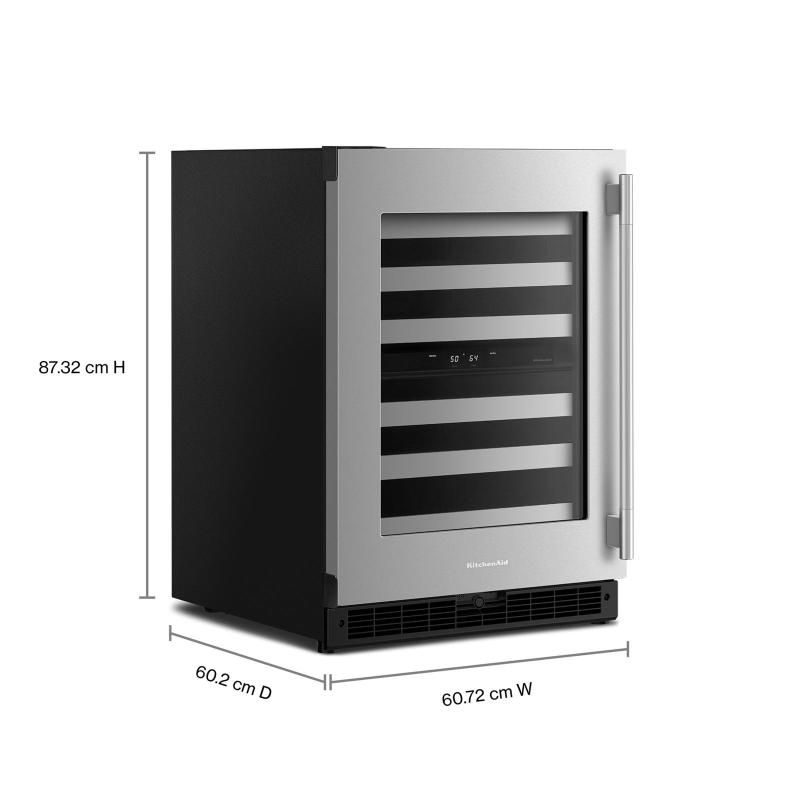

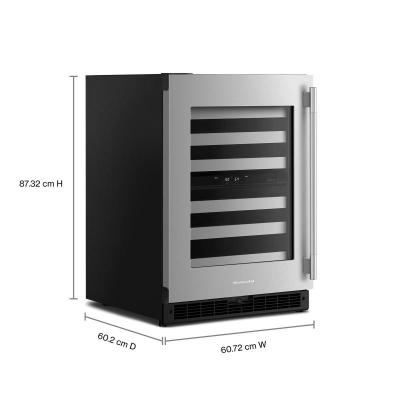

| Dimensions | |
| Cutout Depth | 60.96 cm, 24 in |
| Cutout Height | 87.63 cm, 34-1/2 in |
| Cutout Width | 60.96 cm, 24 in |
| Depth | 60.01 cm, 23-5/8 in |
| Depth Closed Excluding Handles | 59.99 cm, 23-31/50 in |
| Depth Closed Including Handles | 67.13 cm, 26-43/100 in |
| Depth Excluding Doors | 55.07 cm, 21-17/25 in |
| Depth With Door Open 90 Degree | 121.92 cm, 48 in |
| Height | 87.31 cm, 34-3/8 in |
| Height To Top Of Cabinet | 86.82 cm, 34-9/50 in |
| Height To Top Of Door Hinge | 87.30 cm, 34-37/100 in |
| Width | 60.64 cm, 23-7/8 in |
| CONTROLS | |
| Automatic Defrost | Yes |
| Control Lockout | Yes |
| Cooling On/Off | Yes |
| Door Ajar/Open Alarm | Yes |
| Max Cool/Fast Cool | Max Cool |
| Sabbath Mode | Yes |
| Temperature Range | 42F to 64F |
| Details | |
| Ice Maker On/Off | No |
| Number of Racks | 6 |
| Rack Front Material | Metal |
| Rack Type | Wine |
| Bottle Capacity | 46 |
| Refrigerator Type | Wine Cellar |
| Zone 1 Capacity | 24 Bottles |
| Zone 1 Description | Upper |
| Zone 1 Temperature Range | 42F to 54F |
| Zone 2 Capacity | 22 Bottles |
| Zone 2 Description | Lower |
| Zone 2 Temperature Range | 42F to 64F |
| Refrigerator Details | |
| Number of Temperature Controlled Zones | 2 |
| Filter Details | |
| Water Filter Indicator/Reset | No |
| INTERIOR DETAILS | |
| Interior Light | LED |
