30" KitchenAid Combination Microwave Wall Oven with Air Fry Mode - KOEC530PWH

SKU : KOEC530PWH


Literature
Book an Appointment with a KitchenAid Appliance Expert!

Caplan's can help choose the right products for your home. Request an appointment to visit our showrooms and be inspired.

Key Features

  • Air Fry Mode
  • Dishwasher-Safe Air Fry Basket
  • Even-Heat™ True Convection
  • Integrated Meat Thermometer

Product Overview

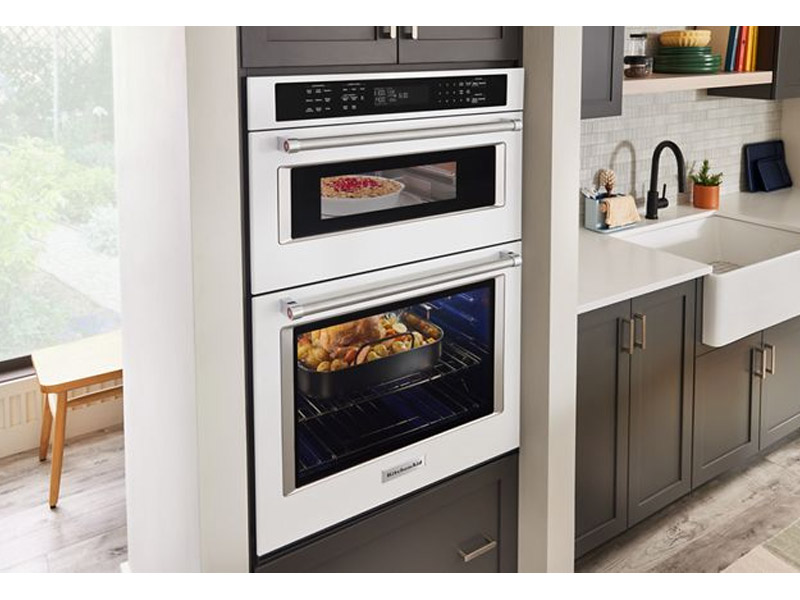

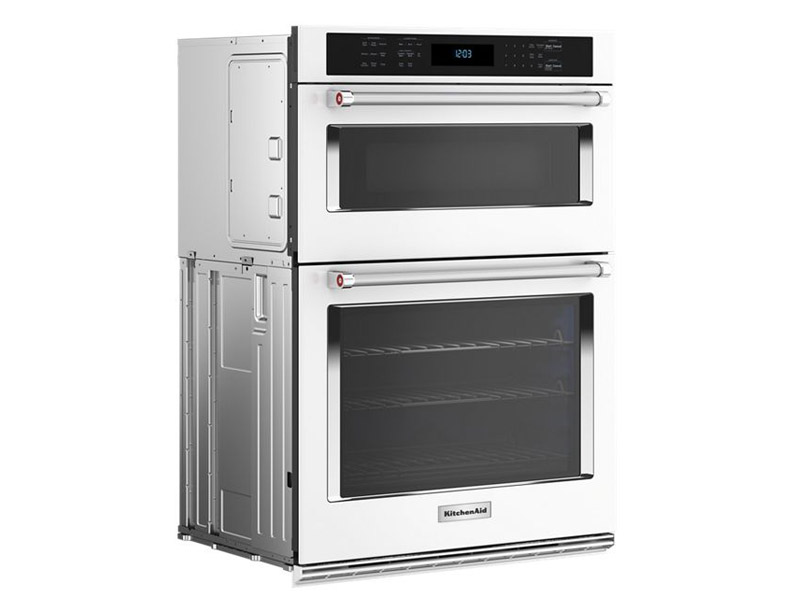

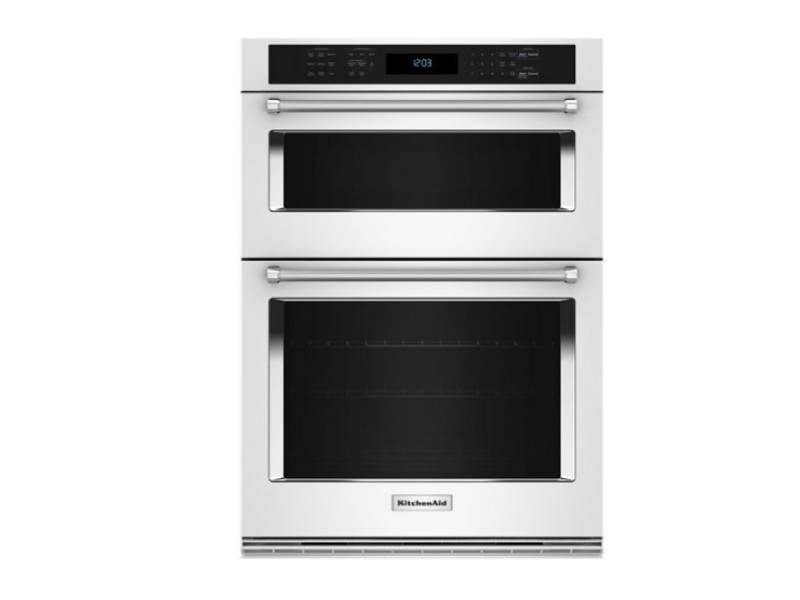

KitchenAid® 30" Combination Microwave Wall Oven with Air Fry Mode

Get the crisp you crave, right from your oven. This 30" Combination Microwave Wall Oven with Air Fry Mode circulates hot air around the included basket to cook with less oil.* Microwave convection cooking turns the microwave into a second oven for small batch bakes like cookies, madeleines and cakes.*When compared to deep frying.



Air Fry Mode

Uses triple heating elements and a fan to circulate hot air around the included air fry basket, crisping and browning food with less oil.*



Even-Heat™ True Convection

Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures for delicious baked goods, juicy roasts and flavorful vegetables.



Integrated Meat Thermometer

Takes the guesswork out of roasting meat just the way you like, from rare to well done. It continuously monitors cooking progress and automatically turns the oven off when your desired temperature is reached.



SatinGlide™ Roll-Out Extension Rack

Makes it easy to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.



SatinGlide™ Roll-Out Extension Rack

Makes it easy to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.



Additional Features

Uses triple heating elements and a fan to circulate hot air around the included air fry basket, crisping and browning food with less oil.**When compared to deep frying.

Allows air to circulate around food as it cooks for crisping and browning and is dishwasher-safe for easy cleanup.

Integrated Meat Thermometer

Takes the guesswork out of roasting meat just the way you like, from rare to well done. It continuously monitors cooking progress and automatically turns the oven off when your desired temperature is reached.

EasyConvect™ Conversion System

Automatically adjusts conventional baking temperatures and cook times to their convection equivalents, making it easy to use convection with recipes of all kinds.

4,000-Watt Broil Element

Uses high heat to give foods a crispy, golden brown finish. Use Broil to sear meat, grill fish, char vegetables, toast bread, melt cheesy toppings and more.

Self-Close Doors

Feature specialized hinges that make it easy to shut the oven when your hands are full. Just give either door a nudge, and it will gently close itself.

Certifications
ULYes, Yes, Yes
ADA CompliantNo, No, No
CULYes, Yes, Yes
Star K CertifiedStar K Certified, Star K Certified, Star K Certified
Details
Fuel TypeElectric, Electric, Electric
Convection Power1,200 W, 1,200 W, 1,200 W, 1,200 W
Flush Installation ApprovedYes, Yes, Yes
GrillYes, Yes, Yes
TurntableYes, Yes, Yes
Microwave Details
Turntable Diameter Size35.88 cm, 14-1/8 in
Door ReleaseHandle, Handle, Handle
GrillYes
Grill Power1,600 W, 1,600 W, 1,600 W, 1,600 W
Microwave Capacity39.62 l, 39.62 l, 39.62 l, 1.4 cu. ft., 1.4 cu. ft., 1.4 cu. ft.
Microwave Interior Depth41.91 cm, 16-1/2 in
Microwave Interior Height20.96 cm, 8-1/4 in
Microwave Interior LightHalogen
Microwave Interior Width44.77 cm, 17-5/8 in
Sensor CookingYes - Microwave, Yes - Microwave, Yes - Microwave

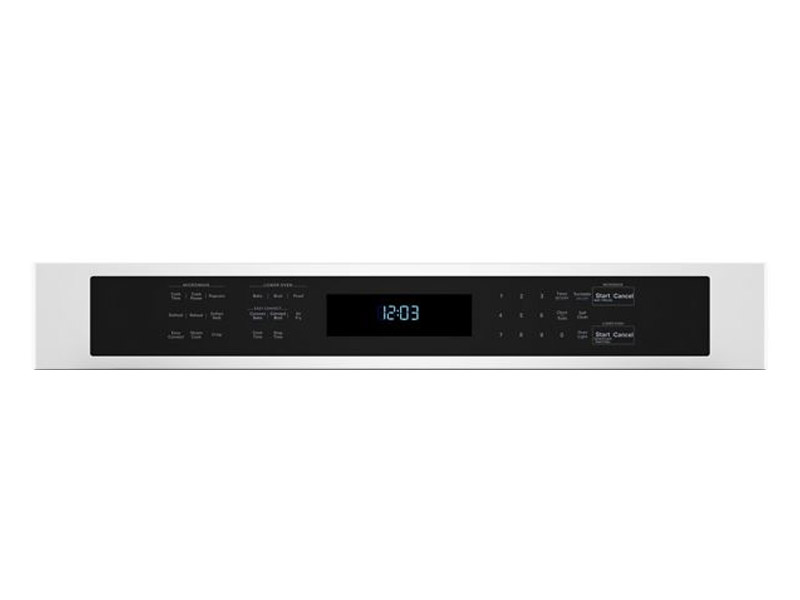

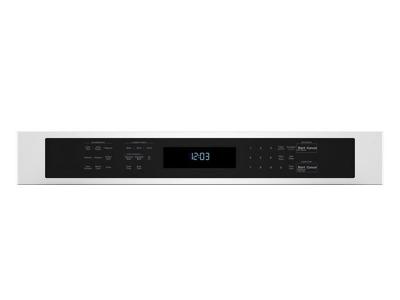

CONTROLS
Microwave SelectionsAdd A Minute, Control Lock, Convect, Cook, Cook Power, Cook Time, Crisp Pan, Defrost, Easy Convect, End of Cycle Signal, Off/Cancel, Popcorn, Reheat, Soften/Melt, Sound On/Off, Steam, Time Cook, Timer, Add A Minute, Control Lock, Convect, Cook, Cook Power, Cook Time, Crisp Pan, Defrost, Easy Convect, End of Cycle Signal, Off/Cancel, Popcorn, Reheat, Soften/Melt, Sound On/Off, Steam, Time Cook, Timer, Add A Minute, Control Lock, Convect, Cook, Cook Power, Cook Time, Crisp Pan, Defrost, Easy Convect, End of Cycle Signal, Off/Cancel, Popcorn, Reheat, Soften/Melt, Sound On/Off, Steam, Time Cook, Timer
Control TypeElectronic Touch, Electronic Touch, Electronic Touch
Display ColorWhite, White, White
DisplayDigital
Language ConversionEnglish/French/Spanish, English/French/Spanish, English/French/Spanish
Dimensions
Oven Interior Width63.50 cm, 25 in
Width75.56 cm, 29-3/4 in
Oven Interior Height45.72 cm, 18 in
Oven Interior Depth48.26 cm, 19 in
Oven Capacity141.50 l, 141.50 l, 141.50 l, 5 cu. ft., 5 cu. ft., 5 cu. ft.
Net Weight89-7959/10000 kg, 89-7959/10000 kg, 89-7959/10000 kg, 89-7959/10000 kg, 198 kg, 198 kg, 89-7959/10000 kg, 89-7959/10000 kg, 89-7959/10000 kg, 89-7959/10000 kg, 89-7959/10000 kg, 89-7959/10000 kg, 198 kg, 198 kg, 89-7959/10000 kg, 89-7959/10000 kg
Cutout Depth60.96 cm, 24 in
Cutout Width72.39 cm, 28-1/2 in
Cutout Height104.94 cm, 41-313/1000 in
Depth68.90 cm, 27-1/8 in
Depth With Door Open 90 Degree118.74 cm, 46-3/4 in
Depth Closed Including Handles68.90 cm, 27-1/8 in
Depth Closed Excluding Handles62.23 cm, 24-1/2 in
Gross Weight99-77/100 kg, 99-77/100 kg, 99-77/100 kg, 99-77/100 kg, 220 kg, 220 kg, 99-77/100 kg, 99-77/100 kg, 99-77/100 kg, 99-77/100 kg, 99-77/100 kg, 99-77/100 kg, 220 kg, 220 kg, 99-77/100 kg, 99-77/100 kg
Height107.95 cm, 42-1/2 in

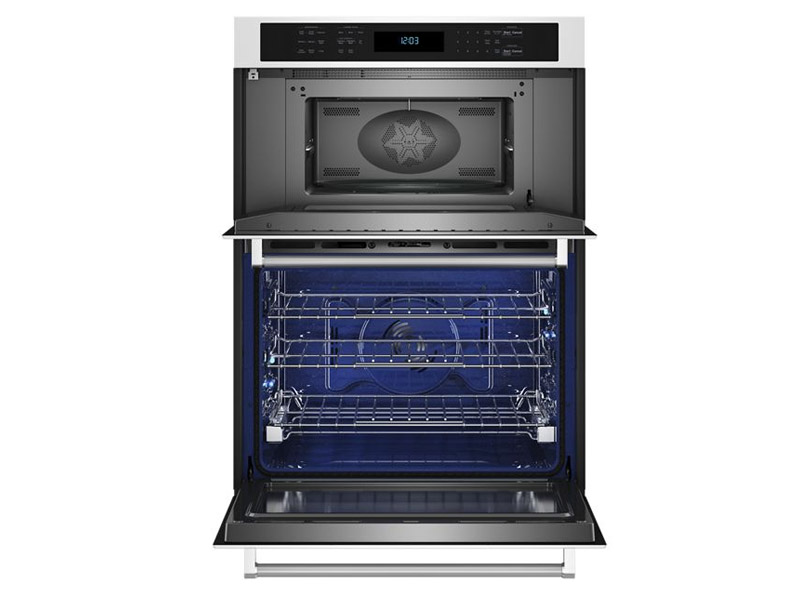

Oven Cavity Details
Convection FunctionsBake, Broil, Convection Conversion, Bake, Broil, Convection Conversion, Bake, Broil, Convection Conversion
ConvectionYes, Yes, Yes
Broiler LocationTop of Oven, Top of Oven, Top of Oven
Broiler Element Power4000W, 4000W, 4000W
Bake Element Power2800W, 2800W, 2800W
Oven Convection Cooking SystemTrue Convection, True Convection, True Convection
Cooking Power900 W, 900 W, 900 W, 900 W
Convection Element Power3200 W, 3200 W, 3200 W, 3200 W
Hidden Bake ElementYes, Yes, Yes
Door LockYes
Door Broil PositionClosed, Closed, Closed
Interior CoatingPorcelain, Porcelain, Porcelain
Interior ColorBlue, Blue, Blue
Number of Oven Lights2, 2, 2
Number of Rack Guides6, 6, 6
Oven Racks3, 3, 3
Cleaning TypeSelf-Cleaning, Self-Cleaning, Self-Cleaning
Oven Light TypeHalogen
Self-Cleaning Oven RacksNo, No, No
Exterior Details
Door TypeMetal & Glass, Metal & Glass, Metal & Glass
Door LockYes, Yes, Yes
Handle ColorStainless Steel, Stainless Steel, Stainless Steel
Handle MaterialMetal, Metal, Metal
Smart Compatibility
ConnectivityNo, No, No
Works WithNo, No, No
Electrical
Power Cord IncludedNo
