30" KitchenAid 5 Burner Dual Fuel Double Oven Convection Range - KFDD500ESS
Caplan's can help choose the right products for your home. Request an appointment to visit our showrooms and be inspired.
Key Features
- Steam Rack
- Professionally-Inspired Design
- Even-Heat™ True Convection
Overview
Product Description

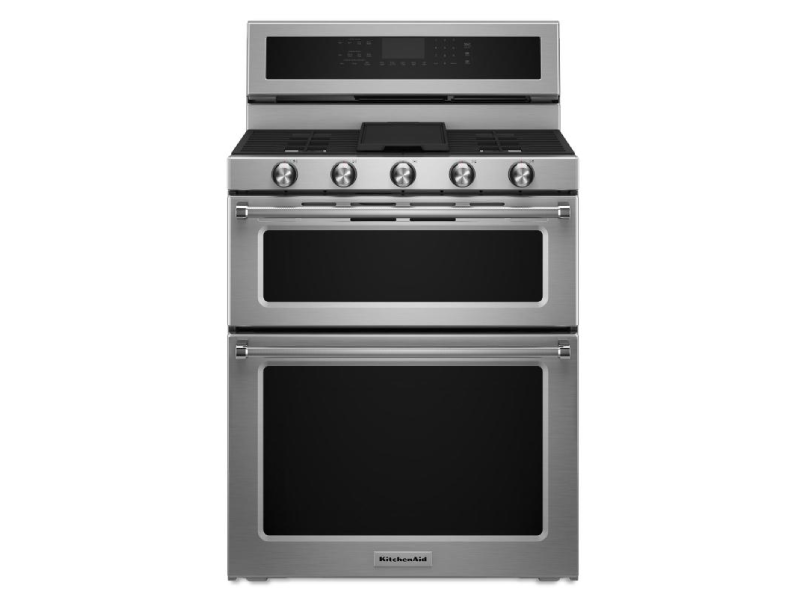

30-Inch 5 Burner Dual Fuel Double Oven Convection Range
This beautiful gas double oven range produces flawless cooking results with Even-Heat™ True Convection. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature. The oven is a combined 6.0 cu ft., providing a large capacity that’s perfect for preparing multiple dishes at once. The cooktop has 5 burners ranging from 5,000 to17,000 BTU, letting you go from a rolling boil to a delicate simmer.
Features
Steam Rack
Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
Professionally-Inspired Design
combines a bold blend of professionally-inspired styling with sleek touches for the home. This double oven range features Satin Textured Handles and the KitchenAid® Badge, a symbol of uncompromised quality.

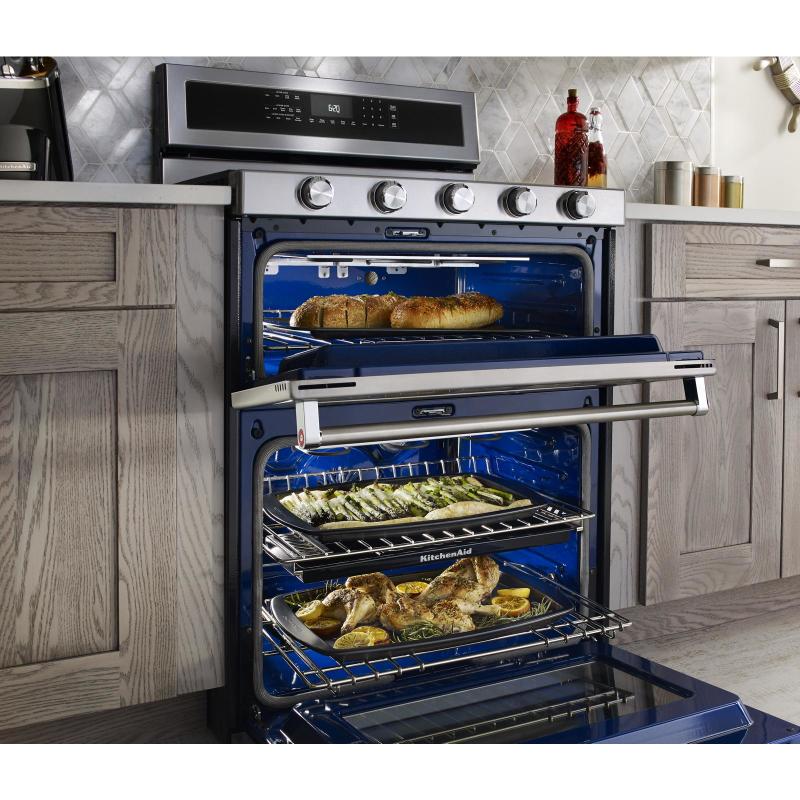

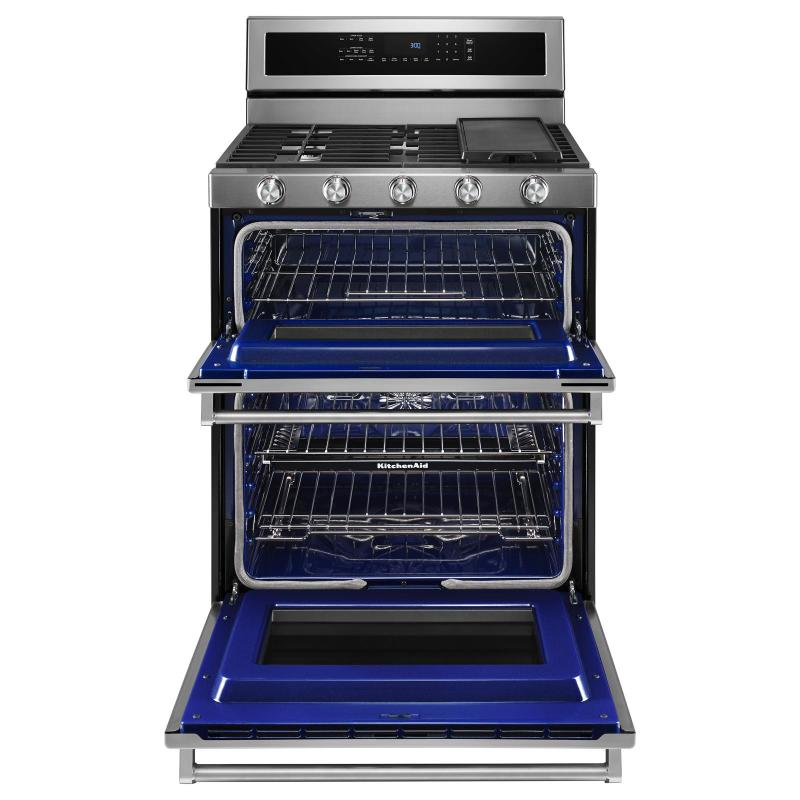

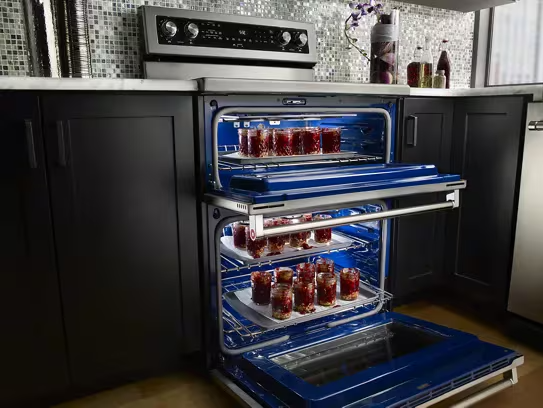

6.7 cu Ft. Total Capacity
Provides an extra-large combined cooking capacity for preparing multiple dishes at once and gives you the flexibility of separate temperature zones.
Additional Features
Even-Heat™ True Convection
Produces flawless results. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature.

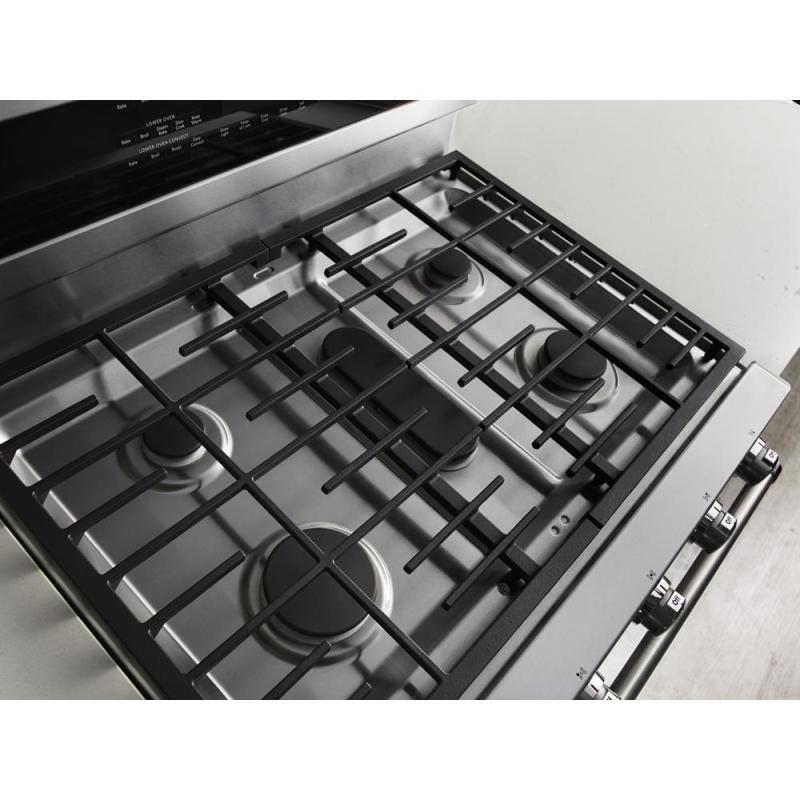

5 Burners (17k, 10k, 7.3k, 5k, 5k)
Provides the perfect range of cooking power from 5,000 to16,000 BTU, so you can go from a rolling boil to a delicate simmer.
EasyConvect™ Conversion System
Takes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.

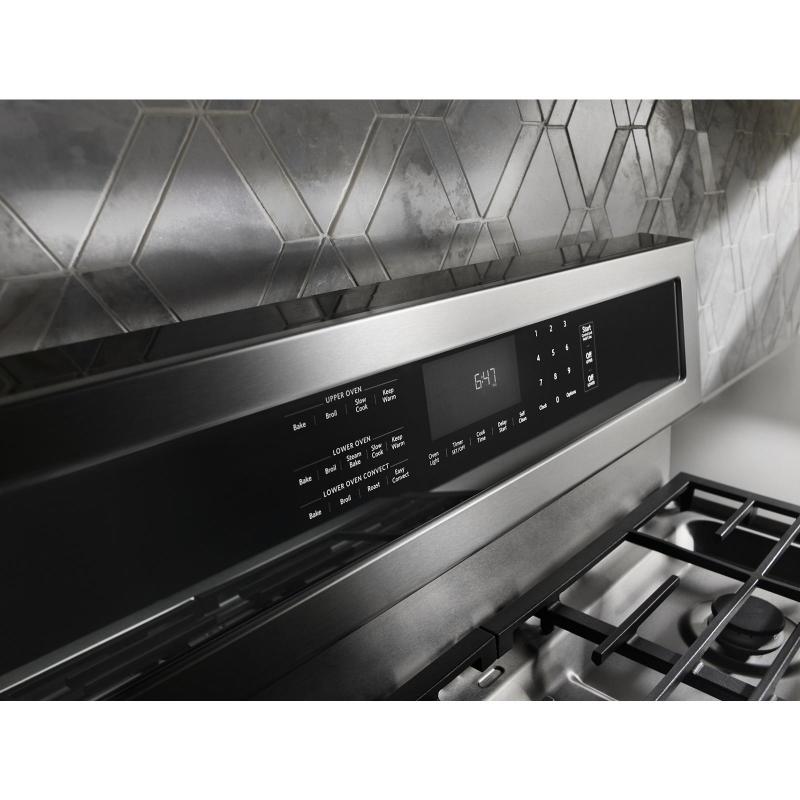

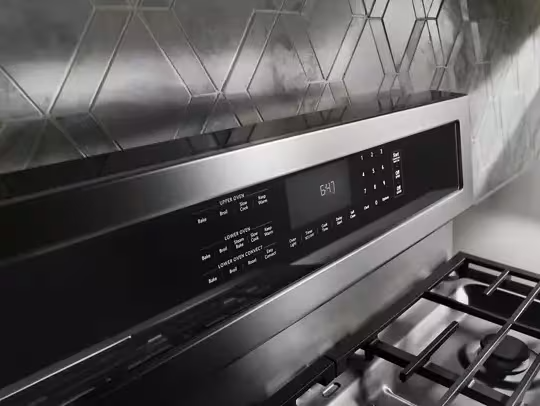

Glass touch controls
Offer an intuitive, easy-to-use touch screen experience.

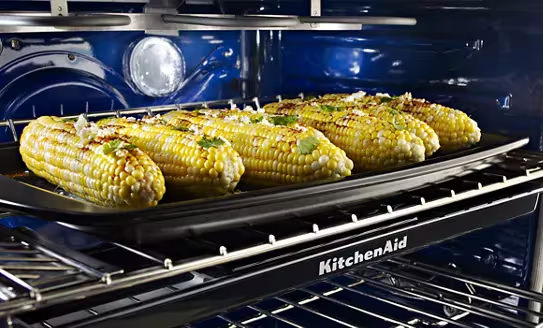

SatinGlide® Rack
Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
| Certifications | |
|---|---|
| UL | Yes |
| Oven Cavity Details | |
| Automatic Convection Conversion Temperature Adjust | Yes |
| Bake Element Power | 2000W Both |
| Broiler Element Power | 3600W Both |
| Broiler Location | Top of Oven |
| Convection Element Power | 1600 W, 1600 W, 1600 W, 1600 W |
| Convection Element Type | Single-Fan |
| Convection Functions | Bake, Broil, Roast |
| Hidden Bake Element | Yes |
| Interior Color | Blue |
| Lower Oven Capacity | 118.86 l, 4.2 cu. ft. |
| Number of Oven Lights | 1 |
| Number of Oven Racks | 1 Upper-2 Lower |
| Number of Rack Guides | 2 Upper-5 Lower |
| Cleaning Type | AquaLift® Self Clean |
| Oven Cooking System | Thermal Upper-Convection Lowe |
| Oven Light Type | Incandescent |
| Oven Rack Type | 1 Gliding Roll-Out, 2 Heavy Duty |
| Upper Oven Capacity | 70.75 l, 2.5 cu. ft. |
| Exterior Details | |
| Door Type | Metal & Glass |
| Handle Color | Stainless Steel |
| Handle Material | Metal |
| Oven Control Location | Backguard |
| Oven Control Type | Electronic Touch |
| Oven Window Size | Large |
| Cooktop Details | |
| Cooktop Control Knob Color | Stainless Steel |
| Cooktop Control Knob Type | Metal |
| Cooktop Control Location | Front |
| Cooktop Control Type | Knobs |
| Cooktop Surface Color | Stainless |
| Cooktop Surface Material | Stainless Steel |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Dimensions | |
| Capacity | 189.61 l, 6.7 cu. ft. |
| Common Size | 76.20 cm, 30 in |
| Depth | 72.39 cm, 28-1/2 in |
| Depth Closed Including Handles | 72.39 cm, 28-1/2 in |
| Depth With Door Open 90 Degree | 114.30 cm, 45 in |
| Gross Weight | 117.93 kg, 260 lbs |
| Height | 120.33 cm, 47-3/8 in |
| Lower Oven Interior Depth | 47.62 cm, 18-3/4 in |
| Lower Oven Interior Height | 40.64 cm, 16 in |
| Lower Oven Interior Width | 63.50 cm, 25 in |
| Net Weight | 108.68 kg, 239-3/5 lbs |
| Upper Oven Interior Depth | 48.90 cm, 19-1/4 in |
| Upper Oven Interior Height | 21.59 cm, 8-1/2 in |
| Upper Oven Interior Width | 63.50 cm, 25 in |
| Width | 76.04 cm, 29-15/16 in |
| Element/Burner Details | |
| Center Rear Element-Burner Power | 7350 BTU |
| Center Rear Element-Burner Type | Oval Burner |
| Cooktop Element Style | Gas Burner |
| Left Front Element-Burner Power | 17,000 BTU |
| Left Front Element-Burner Type | Burner |
| Left Rear Element-Burner Power | 5000 BTU |
| Left Rear Element-Burner Type | Burner |
| Number of Burner | 5 |
| Number of Grates | 2 |
| Right Front Element-Burner Power | 10,000 BTU |
| Right Front Element-Burner Type | Burner |
| Right Rear Element-Burner Power | 5000 BTU |
| Right Rear Element-Burner Type | Burner |
| Details | |
| Fuel Type | Dual Fuel |
| Oven Configuration | Double Oven |
| Oven Selections | Delay Start, Easy Convect Conversion, Sabbath Mode |
| Power On Indicator Light | Yes |
| Power Outage Compatible | No |
| Configuration | Double Oven |
| Range Type | Freestanding Double Oven |
| Grate Details | |
| Grate Details | Cast Iron Grates, Continuous, Dishwasher Safe, Matte Finish |
| CONTROLS | |
| Display Color | Red, White |
| Electronic Display Type | Digital |
| Electrical | |
| Amps | 40 |
| Power Cord Included | Yes |
| Volts | 240 |
