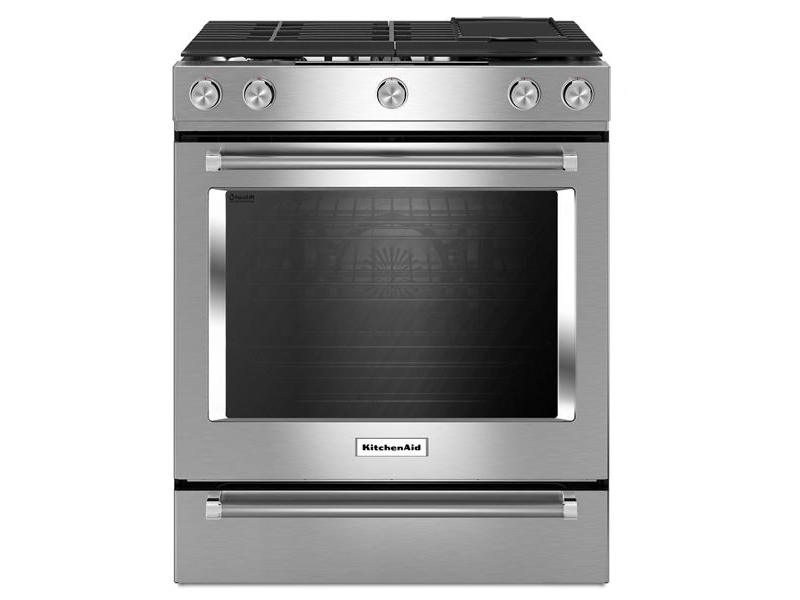

30" KitchenAid 7.1 Cu. Ft. 5 Burner Dual Fuel Convection Front Control Range With Baking Drawer - YKSDB900ESS

Caplan's can help choose the right products for your home. Request an appointment to visit our showrooms and be inspired.
Key Features
- Baking drawer
- Even-Heat™ True Convection
- Steam Rack
Overview
Product Description

KitchenAid® 30-Inch 5-Burner Dual Fuel Convection Front Control Range with Baking Drawer
This versatile dual fuel range provides a Baking Drawer that adds more options to the oven. The separate compartment allows you to bake at a different temperature. This range features flawless cooking results from Even-Heat™ True Convection. The unique bow-tie design and convection fan ensure the entire oven is heated to, and stays at, the perfect temperature.
*Max Capacity Rack sold separately, W10554006. Griddle sold separately, W10432544
Features

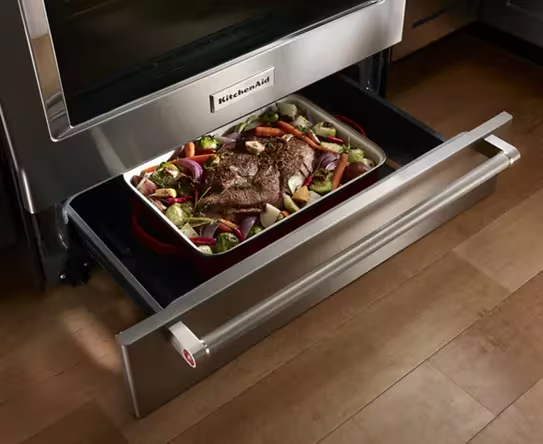

Baking drawer
Adds more cooking options to the oven. The separate compartment allows you to keep warm, slow cook or bake at a different temperature and keep dishes

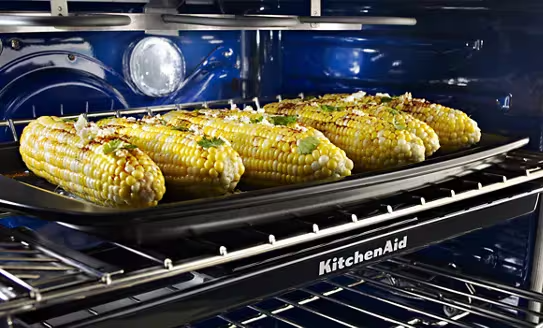

Steam Rack
Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
Additional Features
Even-Heat™ True Convection
Produces flawless results. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature.

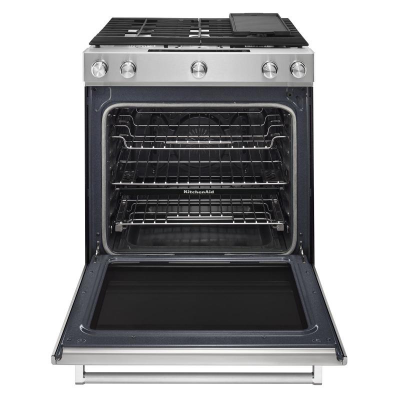

7.1 cu ft total capacity
This electric freestanding range provides an extra-large cooking capacity in the oven for multiple dishes at once and gives you the flexibility of a separate temperature zone in the baking drawer.

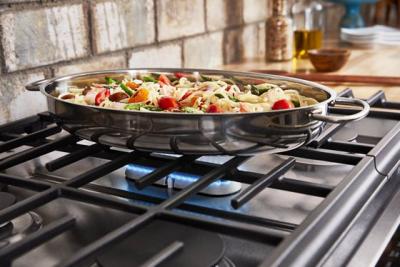

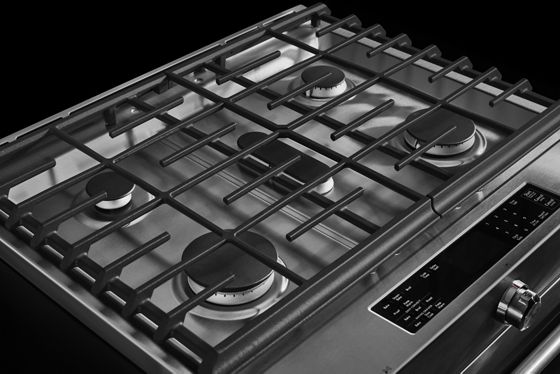

5 burners (5k, 8k, 9.2k, 15k and 19k)
Provides the perfect range of cooking power from 5,000 to 19,000 BTU, so you can go from a rolling boil to a delicate simmer.
EasyConvect™ Conversion System
Takes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.
Aqualift®
Cleans your oven in less than an hour without odours and at a temperature below 200°F. This innovative system combines low heat with water to release baked-on spills.

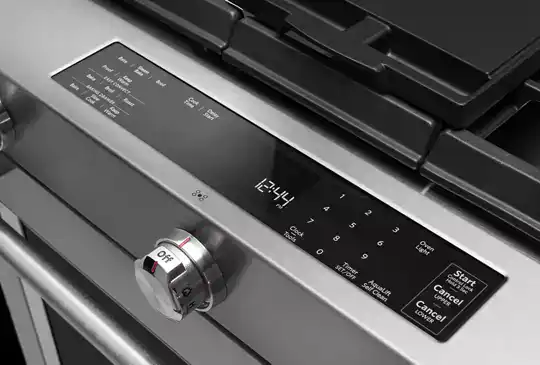

Glass Touch Controls
Offer an intuitive, easy-to-use touch screen experience.
Side Trim Accessory Kit
This optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.
| Certifications | |
|---|---|
| ADA Compliant | ADA Height and Operation Compliant |
| UL | Yes |
| Cooktop Details | |
| Auto Re-ignition | No |
| Cooktop Surface Color | Color Coordinated |
| Griddle Included | No |
| Ignition Type | Électroniques |
| Exterior Details | |
| Door Type | Metal & Glass |
| Handle Color | Stainless Steel |
| Handle Material | Metal |
| Handle Type | Towel Bar |

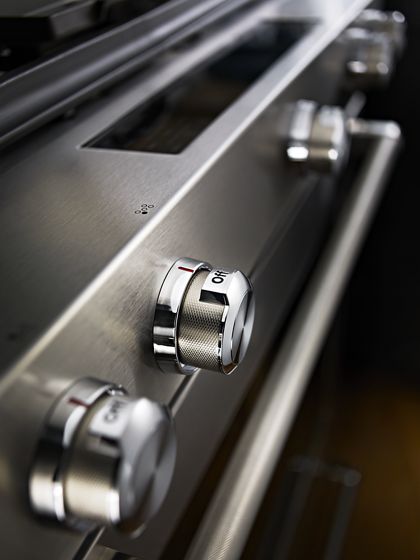

| Knob Color | Stainless Steel |
| Knob Type | Metal |
| Oven Control Type | Electronic Touch |
| Oven Window Size | Large |
| Dimensions | |
| Capacity | 200.93 l, 7.1 cu. ft. |
| Common Size | 76.20 cm, 30 in |
| Depth | 73.34 cm, 28-7/8 in |
| Depth Closed Excluding Handles | 66.99 cm, 26-3/8 in |
| Depth Closed Including Handles | 73.34 cm, 28-7/8 in |
| Gross Weight | 90.72 kg, 200 lbs |
| Height | 91.44 cm, 36 in |
| Net Weight | 82.55 kg, 182 lbs |
| Oven Interior Depth | 51.12 cm, 20-1/8 in |
| Oven Interior Height | 56.20 cm, 22-1/8 in |
| Oven Interior Width | 61.28 cm, 24-1/8 in |
| Width | 75.88 cm, 29-7/8 in |
| Oven Cavity Details | |
| Automatic Convection Conversion Temperature Adjust | Yes |
| Bake Element Power | 3600W |
| Broiler Element Power | 4000W |
| Broiler Location | Top of Oven |
| Convection Element Power | 3200 W, 3200 W, 3200 W, 3200 W |
| Convection Element Type | Single-Fan |
| Convection Functions | Bake, Broil, Roast |
| Hidden Bake Element | Yes |
| Interior Color | Grey |
| Number of Oven Lights | 2 |
| Number of Oven Racks | 2 |
| Number of Rack Guides | 7 |
| Cleaning Type | AquaLift® Self Clean |
| Oven Cooking System | Convection |
| Oven Light Type | Incandescent |
| Oven Rack Type | 1 Steam Rack, 1 Gliding Roll-out Rack |
| Element/Burner Details | |
| Center Front Element-Burner Power | 8000 BTU |
| Center Rear Element-Burner Size | 6in. |
| Left Front Element-Burner Power | 19,000 BTU |
| Left Front Element-Burner Size | 12in./9in./6in. |
| Left Rear Element-Burner Power | 5000 BTU |
| Left Rear Element-Burner Size | 6in. |
| Number of Burner | 5 |
| Number of Grates | 2 |
| Right Front Element-Burner Power | 15,000 BTU |
| Right Front Element-Burner Size | 10in. |
| Right Rear Element-Burner Power | 9200 BTU |
| Right Rear Element-Burner Size | 6in. |
| Details | |
| Fuel Type | Dual Fuel |
| Oven Configuration | Single Oven |
| Power On Indicator Light | Yes |
| Power Outage Compatible | No |
| Range Configuration | Slide-In |
| Range Type | Slide-in |
| CONTROLS | |
| Display Color | Red, White |
| Electronic Display Type | Digital |
| Grate Details | |
| Grate Details | Cast Iron Grates, Continuous, Dishwasher Safe, Matte Finish |
| Number of Grates | 2 |
| Electrical | |
| Amps | 40 |
| Hz | 60 |
| Volts | 240 |
