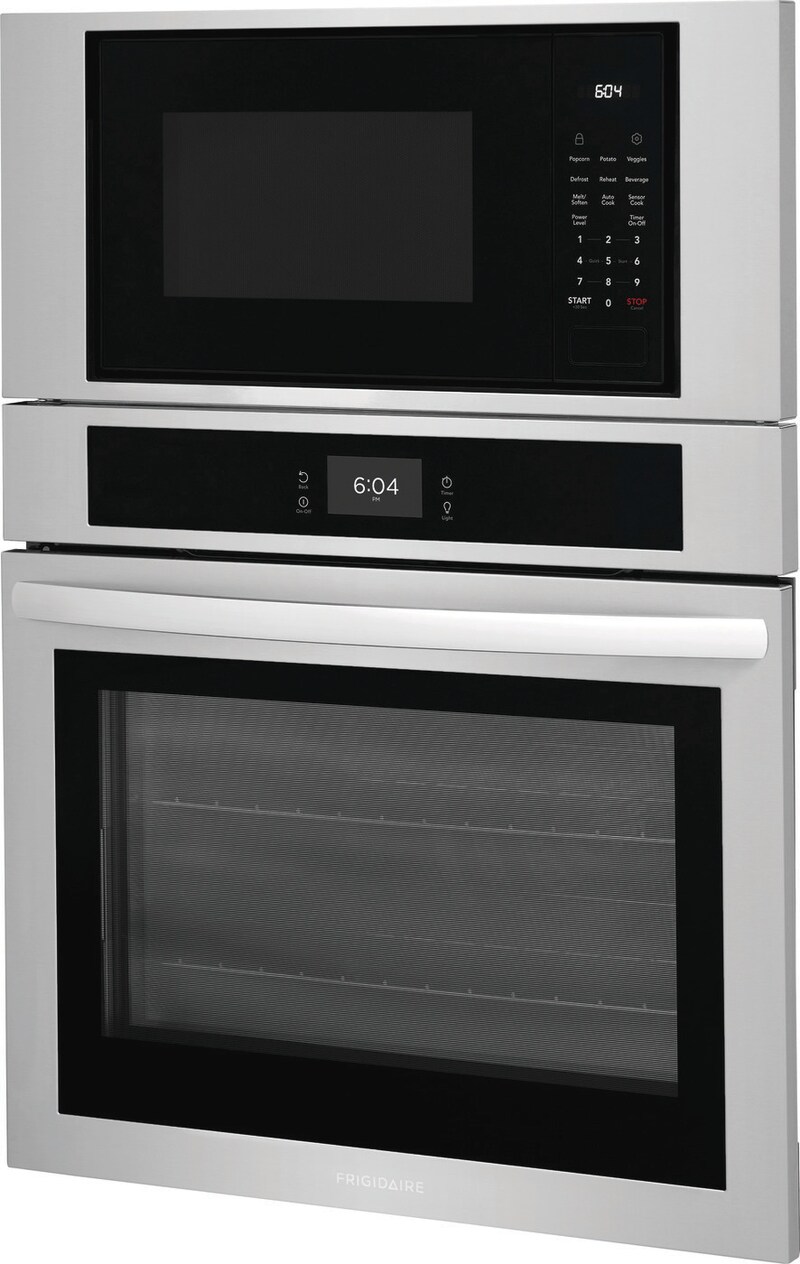

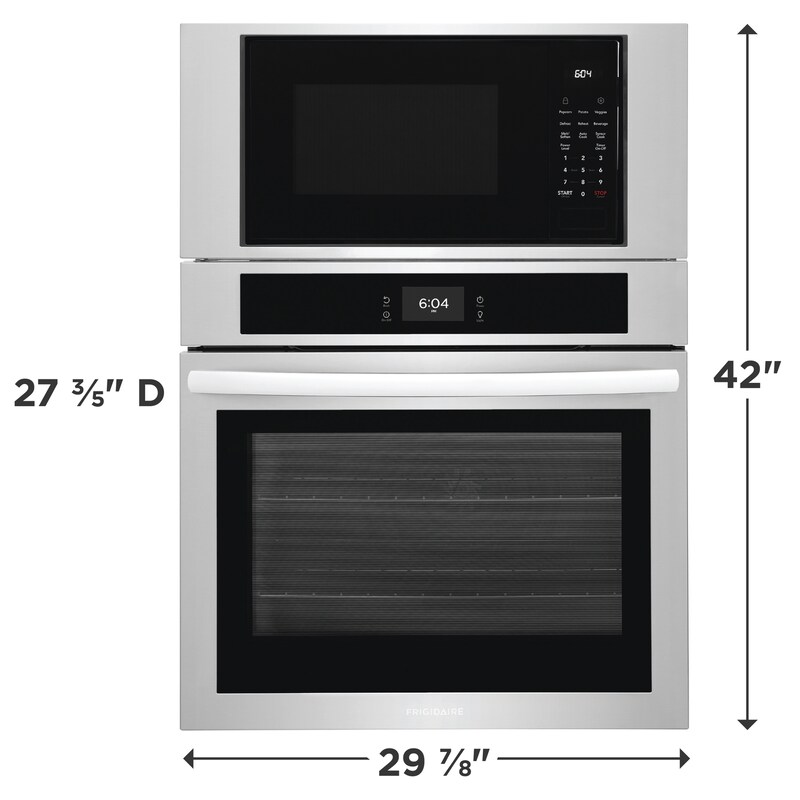

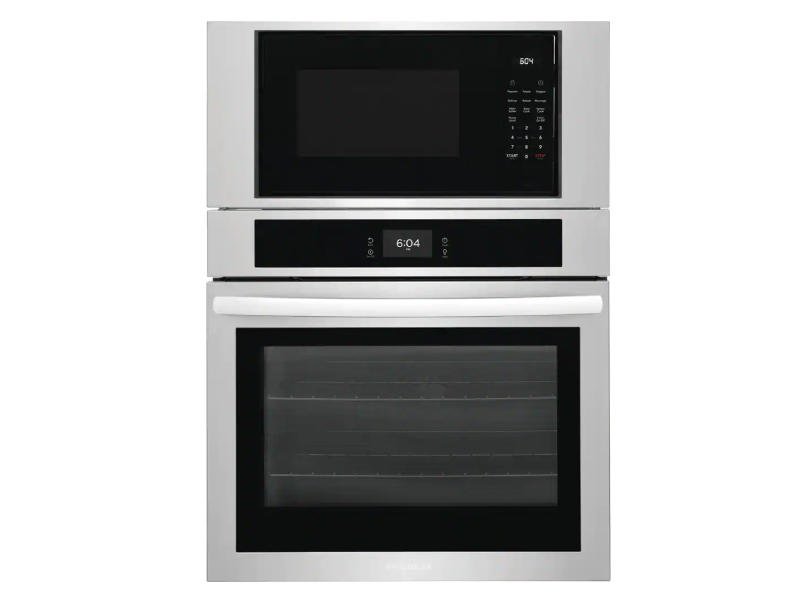

30" Frigidaire Combination Electric Wall Oven and Microwave - FCWM3027AS
Caplan's can help choose the right products for your home. Request an appointment to visit our showrooms and be inspired.
Caplan’s Picks
Overview & Features

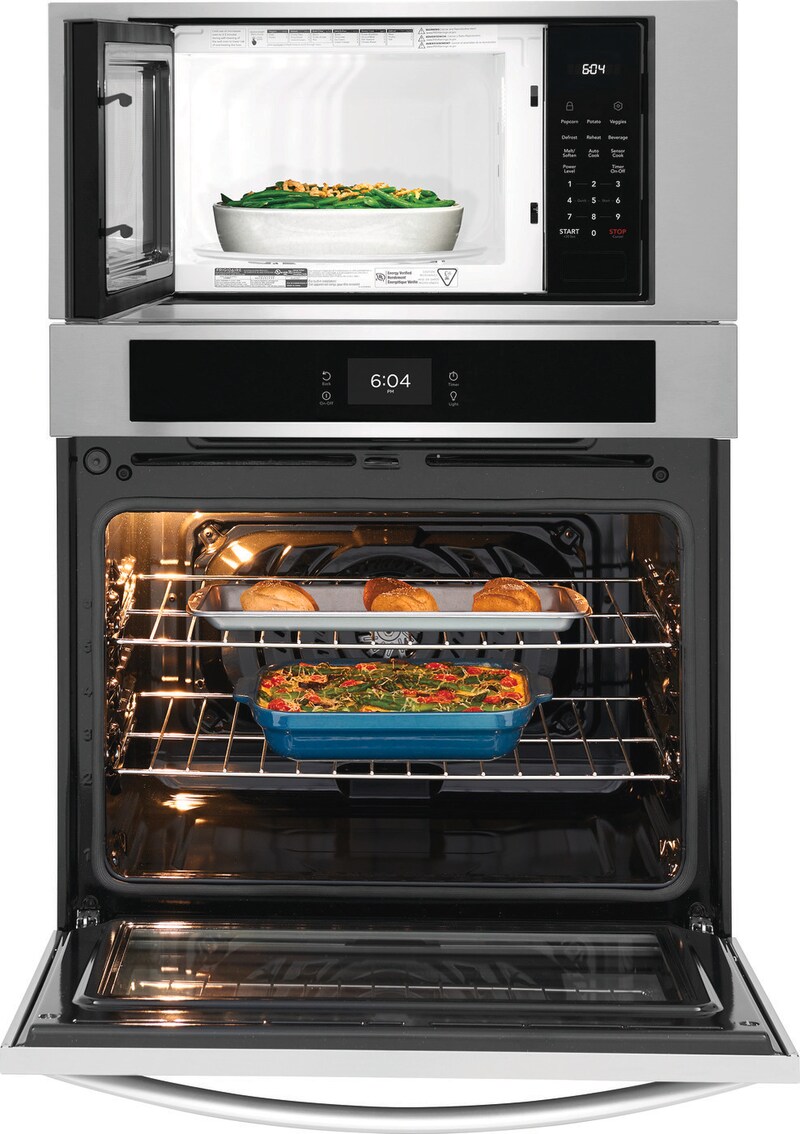

This double wall oven features a large, 5.3 cu. ft. oven with Convection Baking, which allows you to achieve faster, more even multi-rack baking results.
- Fan Convection
- Sensor Cook Technology
- Custom Broil Temp Setting
- Convenient Cook Time Setting
- Keep Warm Setting
- Premium Touch Screen Control Panel
- Self Clean Oven
- Extra Large Oven Capacity
Why you'll love it

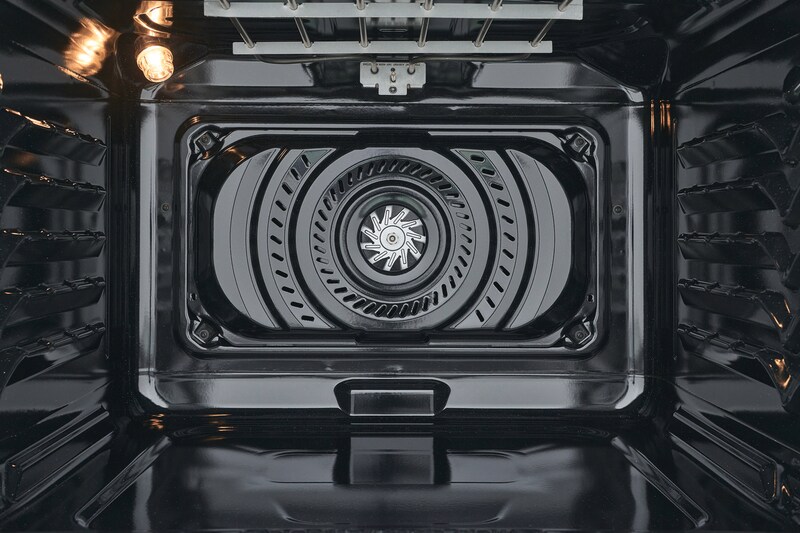

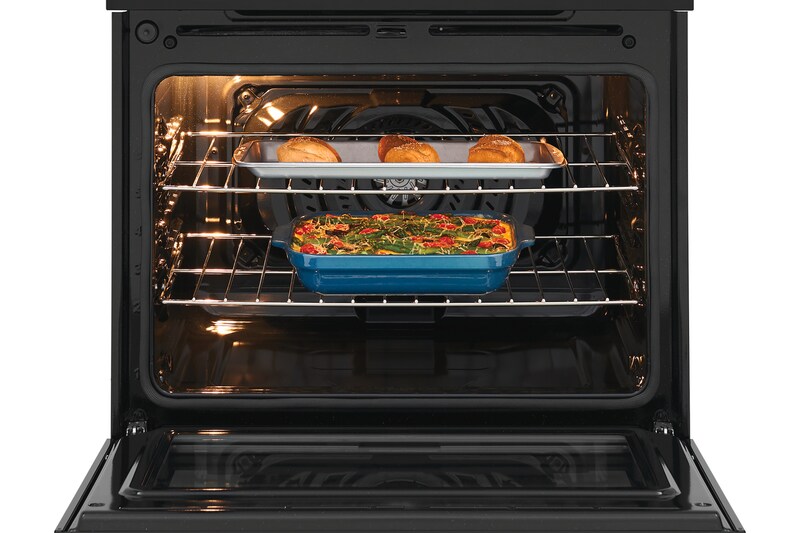

Fan Convection
Get faster, more even multi-rack baking results with Fan Convection.
Self Clean Oven
Self clean options available in convenient 2, 3 and 4-hour cycles.

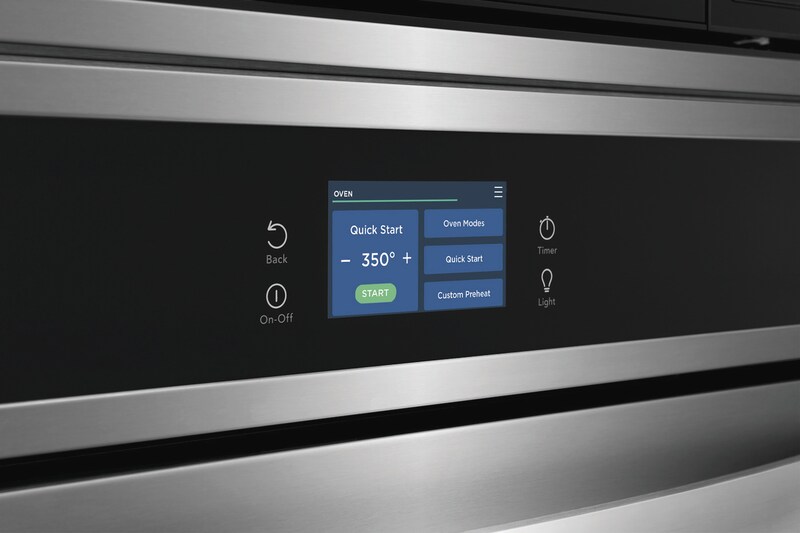

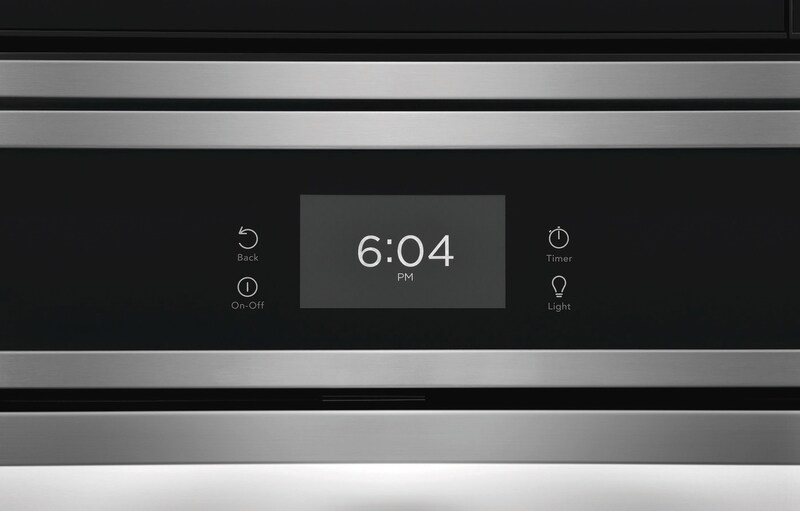

Premium Touch Screen Control Panel
Features a responsive 4.3 inch, full color, capacitive touch digital oven control panel.
Extra Large Oven Capacity
Cook more at once with our extra large, 5.3 cu.ft. capacity oven.
Custom Broil Temp Setting
Allows you to choose the specific broil temperature you want, ranging anywhere between 400 - 550 degrees.
Sensor Cook Technology
Microwave sensors detect and automatically adjust power levels and cooking times for a variety of items, providing great-tasting results every time.
Convenient Cook Time Setting
Allows you to program the amount of time you want your oven to cook and then turn off.
Keep Warm Setting
Meals stay warm and are ready to serve when you are, using the Keep Warm setting.
| CONTROLS | |
|---|---|
| Control Lock | Yes |
| Sabbath Mode | Yes |
| Cooking Controls | |
| Bake | Yes |
| Bake Time | Yes |
| Broil | Yes |
| Cancel | Yes |
| Clock | Yes |
| Convection Bake | Yes |
| Cook Time | Yes |
| Delay Start | Yes |
| Kitchen Timer | Yes |
| Light | Yes |
| Off | Yes |
| Oven Light | Yes |
| Preheat | Yes |
| Self Clean | Yes |
| Start | Yes |
| Temperature Display | Yes |
| Timer On / Off | Yes |
| Cooking Controls Function | |
| Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
| Program Fahrenheit or Celsius | Yes |
| Silent Control Panel | Yes |
| Certifications and Approvals | |
| CSA Listed | Yes |
| RoHS | Yes |
| Star-K Certification | Yes |
| UL Listed | Yes |
| ELECTRICAL SPECIFICATIONS | |
| Amps @ 240 Volts | 40 Amps |
| Connected Load @ 240V | 7.9 kW |
| Minimum Circuit Required | 40 Amps |
| Voltage Rating | 240 V |
| General Specifications | |
| Frigidaire Fit Promise | Yes |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| AB-1200 | Information available at frigidaire.com/en/ab1200 |
| Installation | |
| Power Supply Connection Location | Top Left |
| Internal Specifications | |
| Interior Color | White |
| Interior Light Quantity | 1 |
| Interior Light Type | Halogen |
| Interior Light Wattage | 25 Watts |
| Rack | Yes |
| Turntable Diameter | 13 1/2" |
| Turntable Material | Glass |

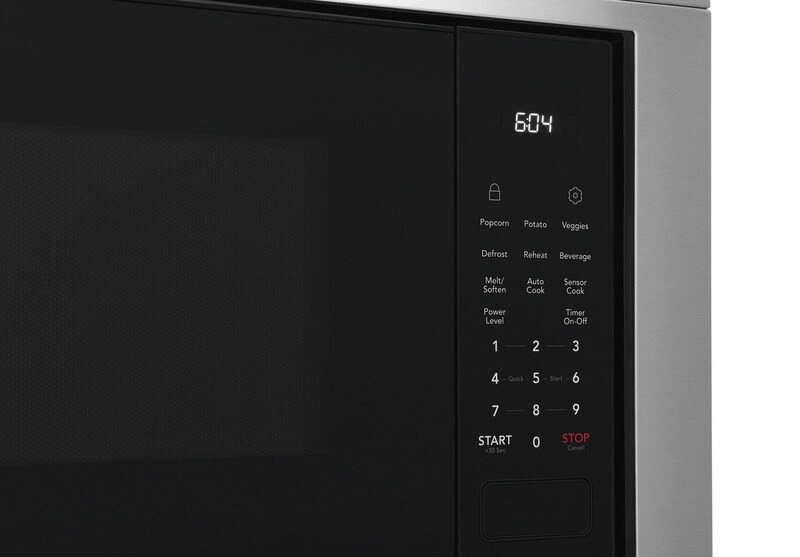

| Microwave Cooking | |
| Auto Cook | Yes |
| Beverage | Yes |
| Defrost | Yes |
| Melt / Soften | Yes |
| Popcorn | Yes |
| Potato | Yes |
| Reheat | Yes |
| Sensor Cooking | Yes |
| Veggies | Yes |
| OVEN | |
| Bake Element | 2600 Watts |
| Bake Element Pass | 4 |
| Bake Element Type | Hidden |
| Broil Element | 4000 Watts |
| Broil Element Pass | 6 |
| Cleaning System | Yes |
| Convection | Yes |
| Convection Type | Fan |
| Number of Convection Fans | 1 |
| Number of Rack Positions | 6 |
| Oven Interior Color | Midnight Black |
| Oven Light Quantity | 1 |
| Oven Light Type | Halogen |
| Oven Light Watts | 40 Watts |
| Rack Position Type | Embossed |
| Rack Type 1 | Flat |
| Rack Type 1 Quantity | 2 |
| Microwave Control Features | |
| + 30 Seconds | Yes |
| Display | |
| Display Interface Color | White |
| Display Light Color | White |
| Display Type | Membrane |
| Accessories | |
| Optional Trim Kit Part Number | WOMC3TRIMSS, WOMC3TRIMDSS, WOMC3TRIMBLK |
