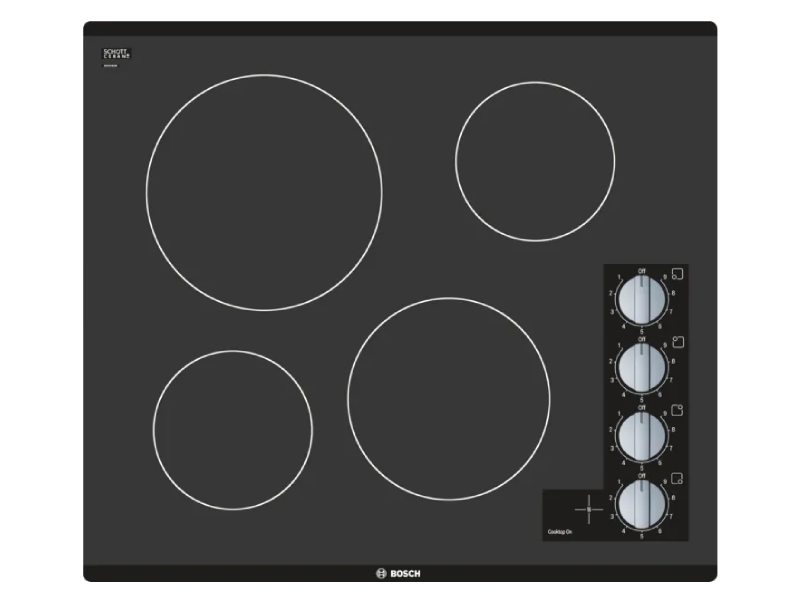

23" Bosch 500 Series Electric Cooktop With Black Frameless - NEM5466UC

Caplan's can help choose the right products for your home. Request an appointment to visit our showrooms and be inspired.
Caplan’s Picks
Highlights
Select your ideal temperature
The precise temperature selection results in consistent, perfect results whether you’re searing a steak, grilling salmon or veggies, or delicately melting chocolate.
Ceremic Glass
Ceramics glass is much more slim and durable with better vertical conduction.

Know when the surface is hot
For added safety, the control panel also has a heat indicator to let you know which sections are still hot after you finish cooking. Once the surface reaches a safe temperature, the indicator turns off.
Compact for small spaces
This compact size is ideal for any small space kitchen with a premium look & feel.
Special Features
- Precise Temperature Control:select your ideal temperature for precise cooking control.
- Ceramic Glass:this smooth surface makes cooking and cleaning especially easy.

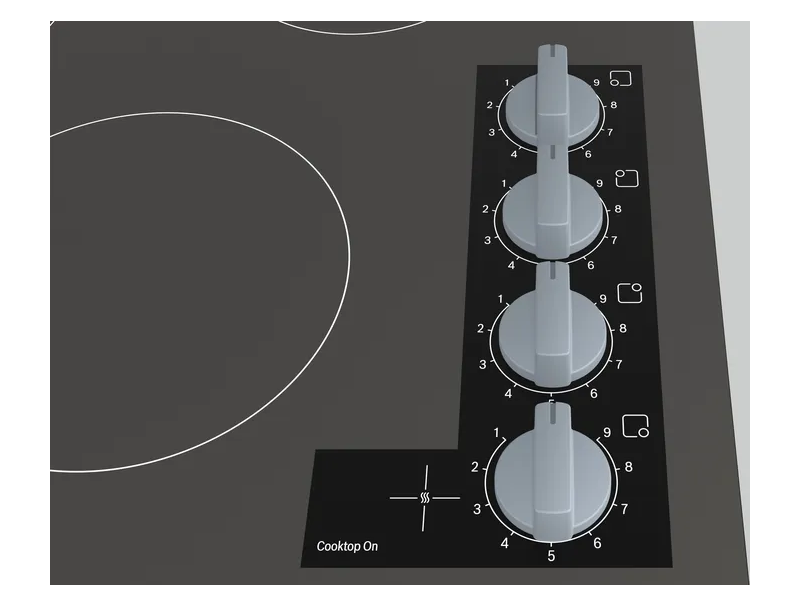

- Push-to-turn control knobs.
Connection | |
---|---|
Frequency (Hz) | 60 Hz |
Energy source | Electric |
Watts (W) | 7,100 W |
Power cord length (cm) | 96 cm |
SAFETY | |
Main on/off switch | No |
Residual heat indicator | Separate |
Power on indicator | No |
Cooking zone 9 | |
Location of 9th heating element | front centre/cent |
Cooking zone 8 | |
Location of 8th heating element | front middle / central |
Cooking zone 7 | |
Type of 7th heating element | Radiant heating |
Power of 7th heating element (kW) | 1.8 kW |
Location of 7th heating element | front right |
Dimension of 7th heating element (mm) | 180 mm |
Cooking zone 6 | |
Location of 6th heating element | center right |
Cooking zone 5 | |
Type of 5th heating element | Radiant heating |
Power of 5th heating element (W) | 1.2 kW |
Location of 5th heating element | back right |
Dimension of 5th heating element (mm) | 145 mm |
Cooking zone 4 | |
Location of 4th heating element | middle back |
Cooking zone 3 | |
Type of 3rd heating element | Radiant heating |
Power of 3rd heating element (W) | 2.2 kW |
Location of 3rd heating element | back left |
Dimension of 3rd heating element (mm) | 210 mm |
Cooking zone 2 | |
Location of 2nd heating element | center left |
Cooking zone 1 | |
Type of heating element | Radiant heating |
Power of heating element (W) | 1.85 kW |
Location of 1st heating element | front left |
Dimension of heating element (mm) | 145 mm |
Size and Weight | |
Net weight (kg) | 8.8 kg |
Overall appliance dimensions (HxWxD) (mm) | 102 x 596 x 526 mm |
CONSTRUCTION TYPE | |
Number of electric warming zones | 0 |
Number of radiant elements | 4 |
Total number of cooktop burners | 4 |
Installation Type | Built-in |
Number of halogen elements | 0 |
Number of gas burners | 0 |

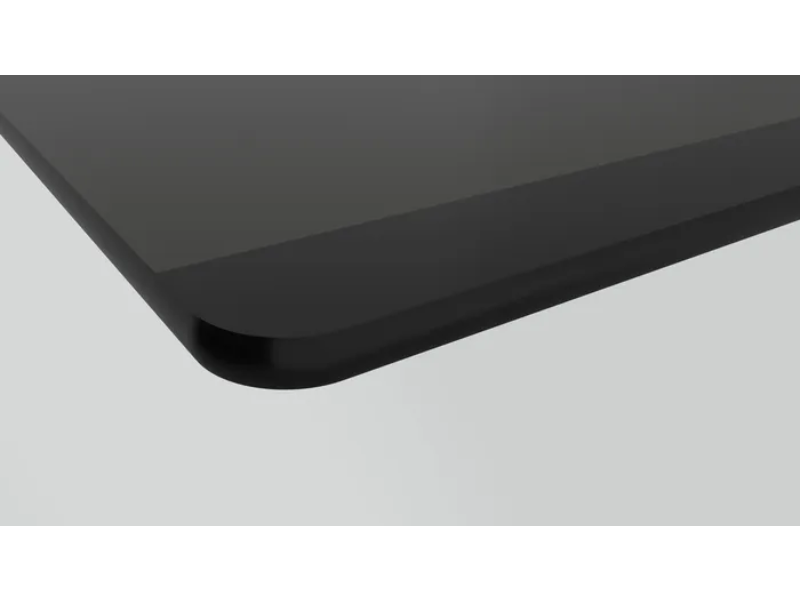

Type of frame | Frameless |
Number of electric cooking zones | 4 |
Number of electric elements | 0 |
Design - line | Frameless |
Construction type | Built-in |
Color of surface | Black |
Certifications | |
Home Connect | No |
General | |
Type of control | Fixed, right, Sword knobs |
Energy source | Electric |
