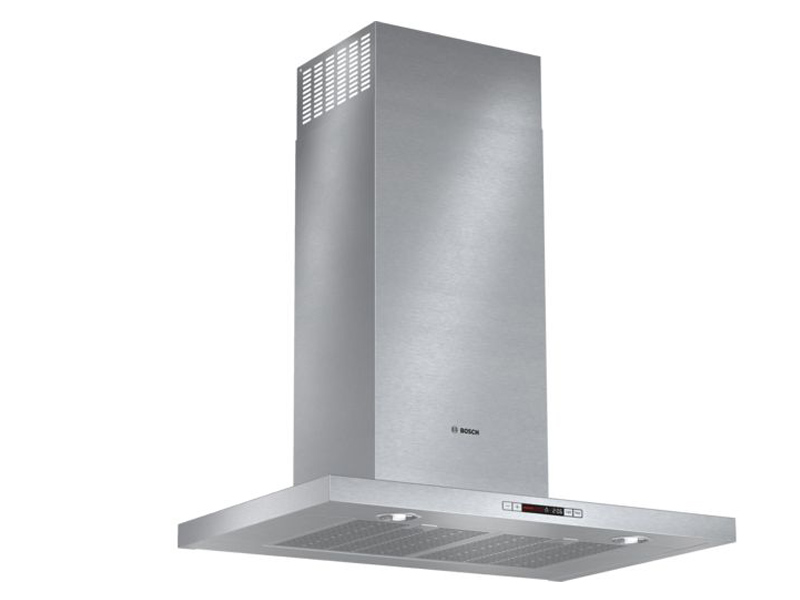

30" Bosch 500 Series Box Canopy Chimney Hood Stainless Steel - HCB50651UC
Literature
Book an Appointment with a Bosch Appliance Expert!
Caplan's can help choose the right products for your home. Request an appointment to visit our showrooms and be inspired.
Caplan’s Picks
Wall Mounted Chimney Hoods Add Style and Sophistication to the Kitchen and Gives You Greater Freedom in Your Kitchen Planning

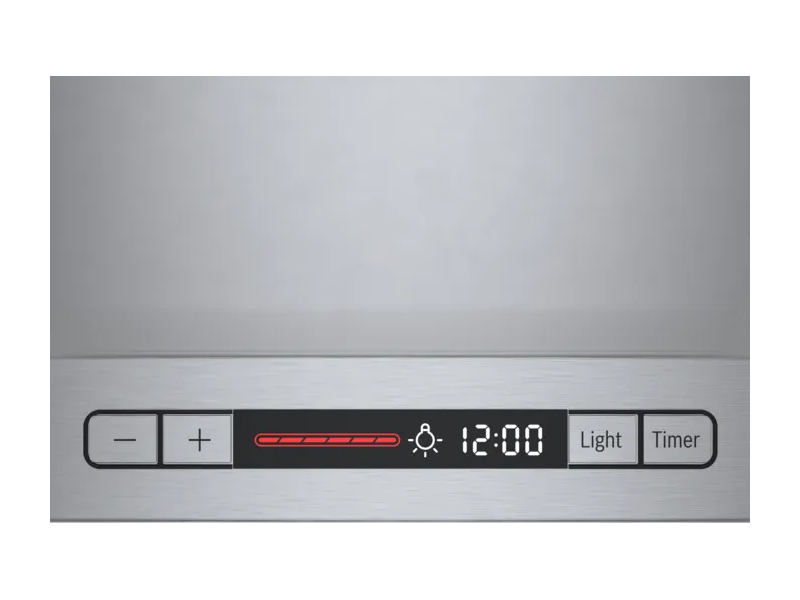

- Touch Controls with LCD Display
- 600 CFM Centrifugal Integrated Blower Included
- Four Speed Touch Controls with LCD Display
- Dishwasher Safe Filters with Stainless Steel Covers

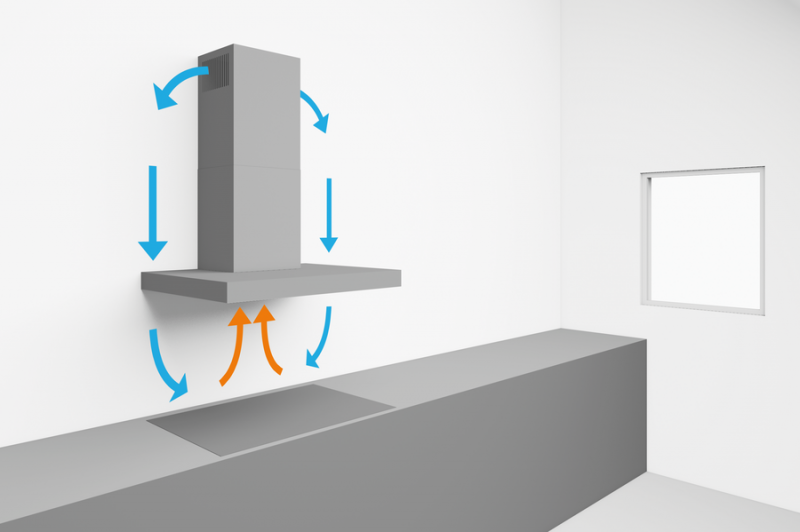

- Converts to Recirculation Mode with Accessory Kit (Separate Purchase Required)
Design
- Duct Extension Accessory Kit Available for 9' to 12' Ceilings
Performance
- 2 Halogen Lights - 12 Volt, 20 Watt max., G-4 Base

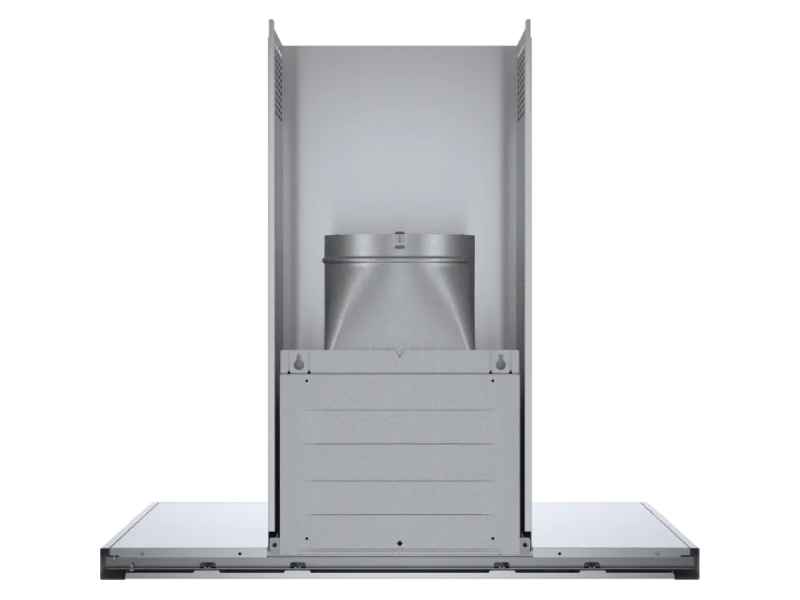

- 8" round duct at discharge.
Efficiency
- Blower will automatically turn on at high speed if excessive heat is sensed in the control area.
- Absorb odors with charcoal replacement filters.
Convenience
- Convenient timer built into control from 1-60 minutes.
- Signal on LCD display will illuminate as a reminder to check filters for cleaning.
- Audible tone when select controls are pressed.
| Connection | |
|---|---|
| Volts (V) | 110 V |
| Total output power of the motors | 450 W |
| Total power of the lamps (W) | 40 W |
| Frequency (Hz) | 60 Hz |
| Power cord length (cm) | 0 cm |
| Watts (W) | 530 W |
| CONSTRUCTION TYPE | |
| Typology | Chimney |
| Operating Mode | Convertable: Ducted / Recirculating |
| Number of motors | 1 |
| Material chimney | Stainless steel |
| Material | Stainless steel |
| Installation Type | Wall-mounted |
| Grease filter type | Multilayer cassette |
| Grease filter material | Washable stainless steel |
| Color chimney | Stainless steel |
| Color body | Stainless steel |
| Diameter of air duct (mm) | 200 mm |
| Certifications | |
| Home Connect | No |
| General | |
| Type of control | LCD, Push buttons |
| Maximum output recirculating air | 457 |
| Operating Mode | Convertable: Ducted / Recirculating |
| Construction type | Built-in |
| Depth of the product | 500 mm |
