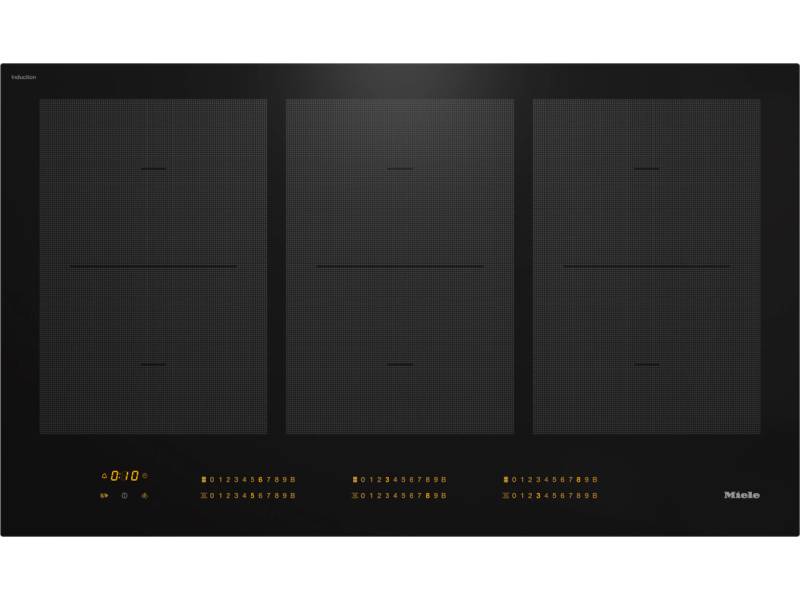

36" Induction Cooktop operated with its own controls with 3 PowerFlex - KM 7745 FL

Caplan's can help choose the right products for your home. Request an appointment to visit our showrooms and be inspired.
Caplan’s Picks
Product Information
36-inch induction cooktop, operated with its own controls with 3 PowerFlex cooking areas for maximum performance
- Intuitive quick selection via number sequences - Smart Select
- 6 cooking zones incl. 3 powerful PowerFlex cooking areas

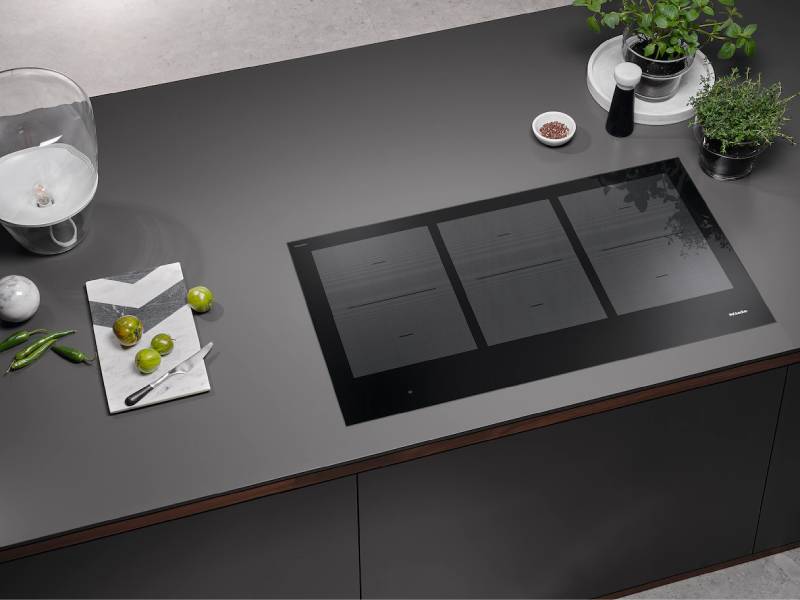

- 35 7/8 (909) in (mm) wide for surface-mounted or flush installation
- Shortest heating-up times - TwinBooster
- Communication with the ventilation hood – automatic Con@ctivity function
- Con@ctivity 3.0. Smart control. Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.
- PowerFlex. Ideal for large pots . Unbeatably fast and versatile: the booster output of up to 7.3 kW.
Your exclusive advantages
SETUP/FUNCTION

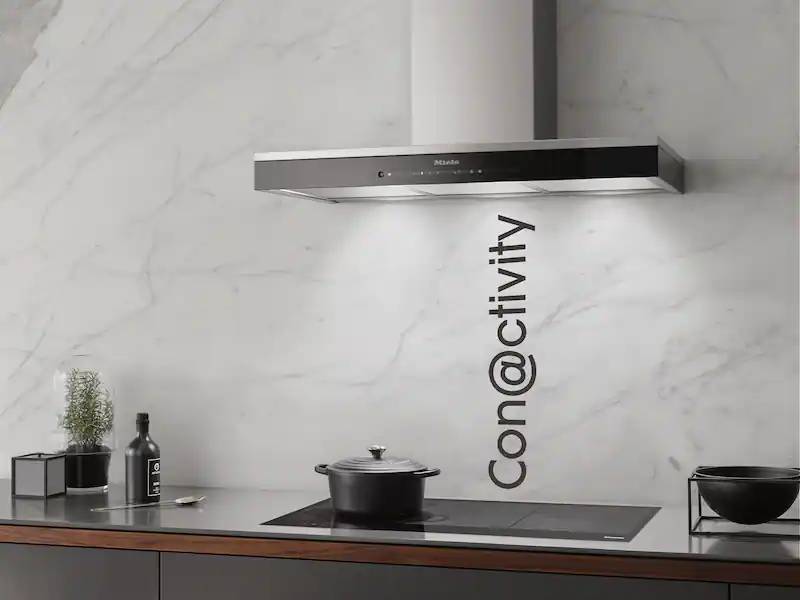

Con@ctivity 3.0
Smart control
Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.
Concentrate fully on cooking: With Con@ctivity 3.0, your ventilation hood always knows exactly what to do. When the cooktop is switched on or off, the ventilation hood reacts automatically, adapting the suction power to what’s happening on the cooktop and thus maintaining a pleasant room climate. The appliances communicate with each other via Wi-Fi. Con@ctivity 3.0 allows you to integrate the ventilation hood and cooktop into Miele@home.

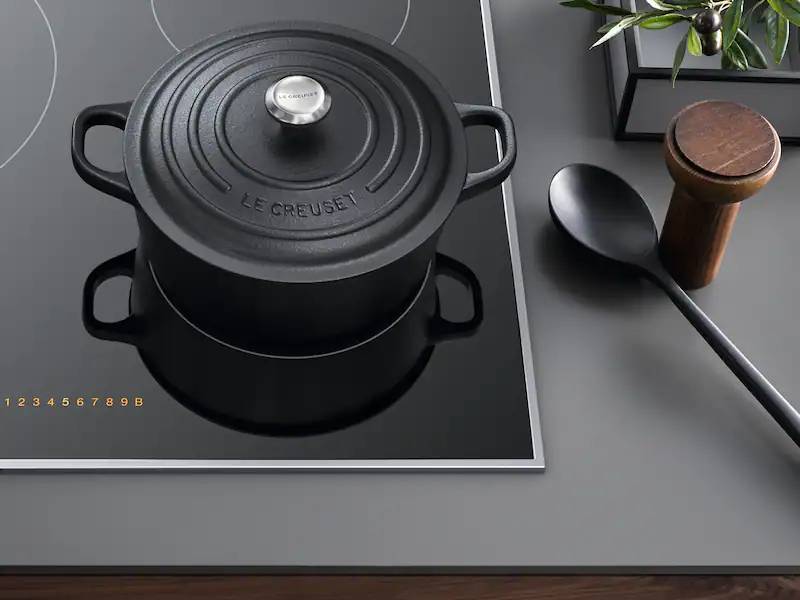

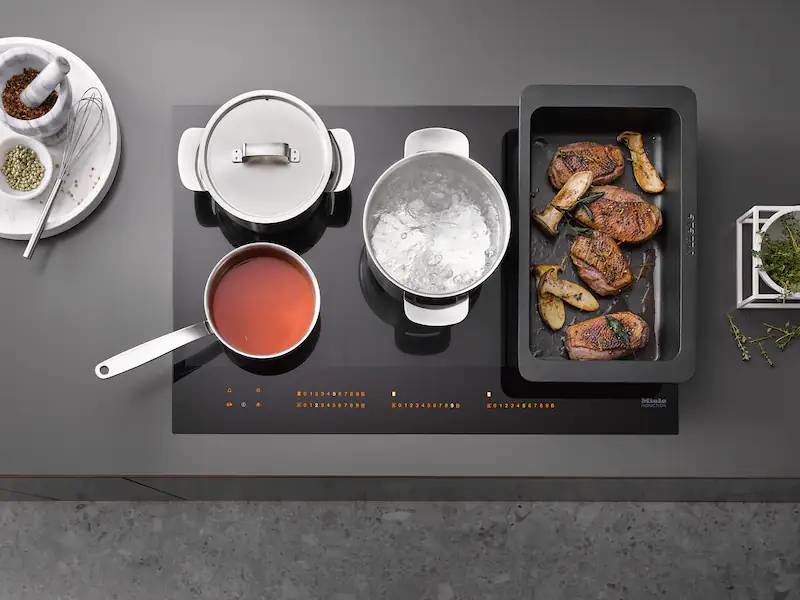

PowerFlex
Ideal for large pots
Unbeatably fast and versatile: the booster output of up to 7.3 kW.
Our PowerFlex cooking zones are incredibly versatile, and can be used for a wide variety of applications with no problems, no matter whether you’re using individual pans, large pots, or oven dishes. You can also save a great deal of time with a booster power of up to 7.3 kW, used to heat food with unrivalled speed.

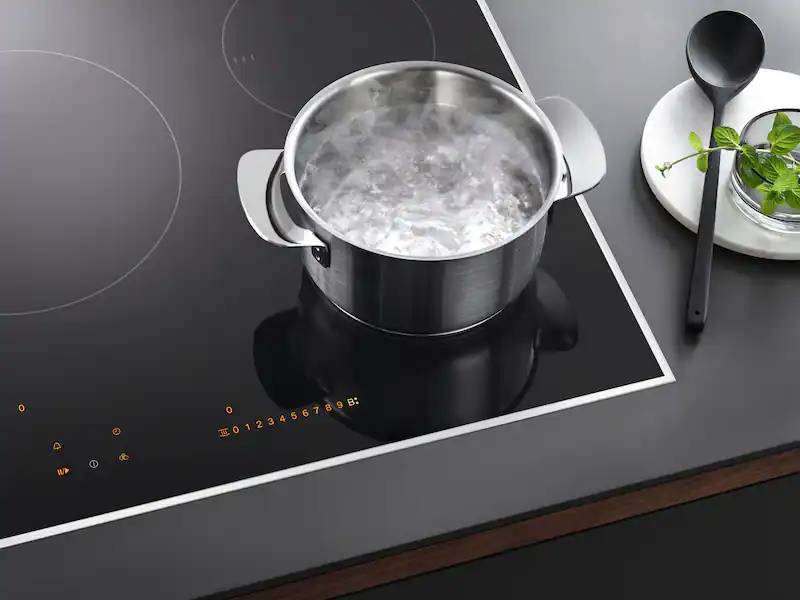

TwinBooster
Booster function for rapid heating
With our versatile system, the induction power can be distributed as needed or focused on just one cooking zone.
For quick heating, you can use Miele’s exclusive TwinBooster function to combine the power of two cooking zones into one zone when needed. Alternatively, you can distribute the induction power as needed for flexible cooking performance.

Convenient additional features
For greater convenience
A range of additional functions such as Stop & Go and the timer make your kitchen routine a breeze.
With the convenient Stop & Go feature, all cooking zones can be reduced to power level 1 at the touch of a single button, allowing you to leave the cooktop unattended for a short time. The automatic keeping-warm function keeps food at the perfect serving temperature. Another plus: When you set the timer, the cooking zone switches off automatically after this time has elapsed. The recall function also saves your settings for 10 seconds.

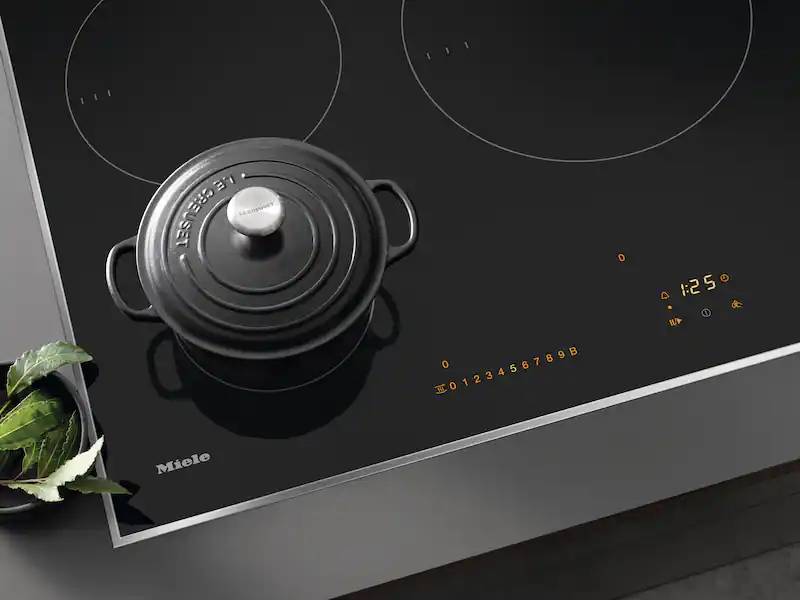

Constant pan recognition
Simply place the pan and start cooking
Automatic activation of control elements: When turned on, pots which are already on a cooking zone are detected.
All you have to do is switch on the cooktop – if cookware has already been placed on a cooking zone, the corresponding control element is activated automatically, so you don’t need to start the cooking zones manually. And to provide additional energy efficiency, the appliance also automatically detects the size of the pan.
USER CONVENIENCE

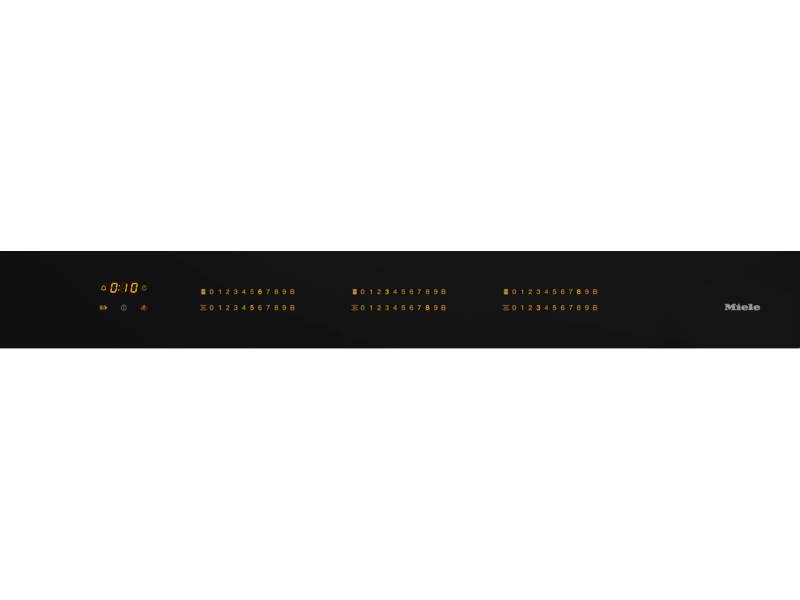

SmartSelect
Easy control with SmartSelect
Quick and intuitive: Power levels and times can be directly selected for each cooking zone.
With SmartSelect, it’s remarkably easy to adjust power settings and timings in no time. Each cooking zone is controlled by a numerical display with yellow backlighting, which is easy to read from any angle. What’s more, the three-digit timer is much easier to set thanks to SmartSelect, which allows you to select the timer and the safety shut-off separately.
SAFETY

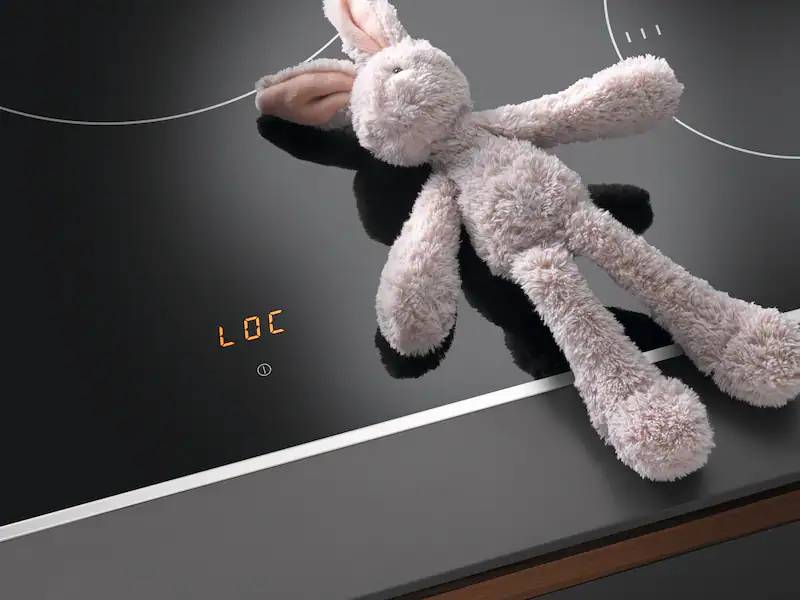

Safety features
For greater peace of mind
With our safety features you can deal with life’s little surprises, even when your thoughts are elsewhere.
Providing the best protection in any situation, the system lock protects you against unauthorized or accidental switch-on. If a cooking zone is operated for an unusually long time at the same power level, or if there are no pots or pans on the cooktop when it’s switched on, the appliance switches off automatically. Another useful feature is the residual heat indicator, which reminds you not to touch the cooking zones when they are still hot.
HEATING TYPE | |
---|---|
Heating type | Induction |
DESIGN | |
Ceramic surface colour | Black |
Flush-fit installation | • |
Surface-mounted installation | • |
Elegant glass ceramic surface | • |
COOKING ZONE DETAILS | |
Number of cooking zones | 6 |
Number of cooking areas | 3 |
Maximum number of pans | 6 |
USER CONVENIENCE | |
Operation via sensor controls | Smart Select |
Display colour | Yellow |
Pan and pan size recognition | • |
Safety shut-off | • |
Networking with Miele@home | • |
Automatic function | Con@ctivity 3.0 |
Constant pan recognition | • |
Recall function | • |
Stop & Go function | • |
Timer | • |
Auto heat-up | • |
Keeping warm | • |
Individual setting options (e.g. audible signal tones) | • |
Wipe protection | • |
SAFETY | |
Overheating protection | • |
Residual heat indicator | • |
Safety shut-off | • |
Safety lock | • |
System lock | • |
Integrated cooling fan | • |
TECHNICAL DATA | |
Voltage in V | 208-240 |
Dimensions in mm (width) | 35 7/8 (909) |
Installation height incl. connection box in mm | 4 1/8 (103) |
Dimensions in mm (depth) | 21 1/4 (538) |
Internal cutout dimensions in mm (width) with flush installation | 889 |
Internal cutout dimensions in mm (depth) with flush installation | 518 |
External cutout dimensions in mm (width) with flush installation | 913 |
External cutout dimensions in mm (depth) with flush installation | 542 |
Weight in lbs (kg)​ | 61 (28) |
Total rated load in kW | 11.200 |
Frequency in Hz | 50-60 |
Length of power cable in m | 3 (1.2) |
Dimensions in mm (height) | 3 1/8 (77) |
Cutout dimension in mm (width) with surface-mounted installation​ | 34 1/2 in (876 mm) |
Cutout dimensions in mm (depth) with surface-mounted installation | 20 1/2 in (518 mm) |
Cut-out dimensions (W x D) with surface-mounted installation in mm | 34 1/2 in (876 mm) x 20 1/2 in (518 mm) |
Cut-out dimensions (W x D) with flush-fit installation in mm | 889/913 x 518/542 |
Dimensions (H x W x D) in mm | 3 1/8 (77) x 35 7/8 (909) x 21 1/4 (538) |
ACCESSORIES SUPPLIED | |
Power cable | • |
PowerFlex cooking zones | |
Quantity | 6 |
Size in mm | Ø 150 – 230 |
Max. booster rating in W | 3000 |
Max. TwinBooster rating in W | 3700 |
Max. rating in W | 2100 |
Type | PowerFlex cooking zone |
1st cooking zone / cooking area | |
Position | Left |
Type | PowerFlex bridge |
Size in mm | 230x390 |
Max. rating in W | 3100 |
Max. booster rating in W | 3400 |
Max. TwinBooster rating in W | 3700 |
2nd cooking zone / cooking area | |
Position | Centred |
Type | PowerFlex bridge |
Size in mm | 230x390 |
Max. rating in W | 3400 |
Max. booster rating in W | 4800 |
Max. TwinBooster rating in W | 7400 |
3rd cooking zone / cooking area | |
Position | right |
Type | PowerFlex bridge |
Size in mm | 230x390 |
Max. rating in W | 3400 |
Max. booster rating in W | 4800 |
Max. TwinBooster rating in W | 7400 |
CONSTRUCTION TYPE | |
Independent of oven | • |
Cleaning convenience | |
Easy-to-clean ceramic glass | • |
