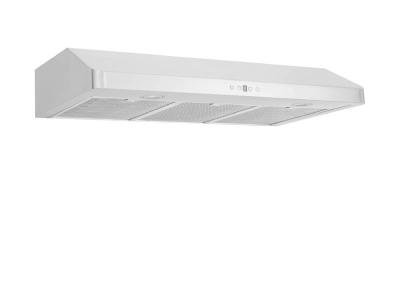

30" Kobe CHX22 SQB-1 Series Under cabinet hood - CHX2230SQB-1
Literature
Book an Appointment with a Kobe Appliance Expert!
Caplan's can help choose the right products for your home. Request an appointment to visit our showrooms and be inspired.
Caplan’s Picks
- Refined Seamless Design.
- A very quiet high performance 3-speed internal blower.
- Mechanical push buttons.
- Features Oil containers with safety screens for easy installation and cleaning
- Top and rear multi-exhaust design provides ultimate convenience and versatility.
- Professional Stainless Steel Baffle filters – Dishwasher safe.
| Inputs & Outputs | |
|---|---|
| Versatile Installation | This versatile hood can be used for under cabinet or for wall mount style with the optional duct cover. |
| Color | Commercial Grade Stainless Steel |
| Easy to Install | Our special design makes installation fast and easy. |
| Sizes | 24″ , 30″ , 36″ |
| Quality | Parts are checked for defects and designed for trouble free long term use. |
| Easy to Clean | KOBE’s unique design, which includes easy to empty catch areas and smooth hood surface, lets you clean the fans without disassembling the hood. |
| Attractive Appearance | The seamless curves and stylish appearance of the hood will compliment any kitchen. |
| Filters | Dishwasher safe professional baffle filters allow for easy cleaning. |
| Light | The hood is equipped with 3W LED lights (3W) |
| Exhaust | Top 6″ Round Top 3-1/4″ x 10″ Rectangular (Optional with TVC20) Rear 3-1/4″ x 10″ Rectangular (Optional with TVC20) |
| CFM / Sone | 300 / 1.0 / QuietMode 510 / 3.0 / Low 680 / 5.0 / High |
| Speed / Control | 3-Speed / Mechanical Push Button Control |
| Blower Type | Twin Vertical Turbine Impeller |
| QuietMode | At 300 CFM, this unique feature allows the KOBE range hood to operate at a reduced sound level of 40 decibels (1.0 sone). |
| SERIES | CHX22 SQB-1 |
| ECO Mode | No |
| Light | LED |
| Filter | Baffle |
| Ducting | Vertical and Horizontal |
| Recirculating | No |
| QuietMode | 1.0 |
| Max CFM | 680 |
| Control | Mechanical Push Button |
| Speed | 3 |
| Size | 24 Inch, 30 Inch, 36 Inch |
