30" KitchenAid Double Wall Oven with Air Fry Mode - KOED530PPS

Caplan's can help choose the right products for your home. Request an appointment to visit our showrooms and be inspired.
Similar Colours and Options :
Key Features
- Air Fry Mode
- Dishwasher-Safe Air Fry Basket
- Even-Heat™ True Convection
Overview

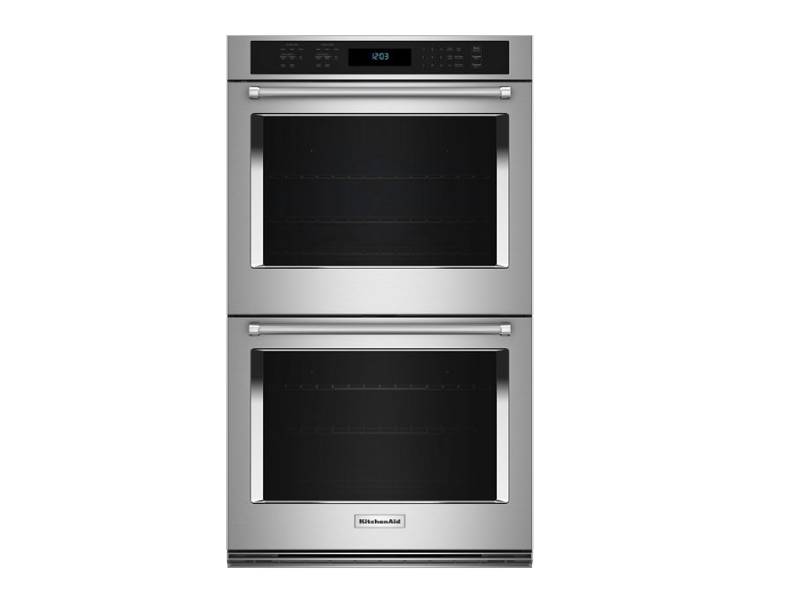

KitchenAid® 30" Double Wall Oven with Air Fry Mode
Get the crisp you crave, right from your oven. This 30" Double Wall Oven with Air Fry Mode circulates hot air around the included basket to cook with less oil.* An integrated thermometer takes the guesswork out of roasting meat just the way you like.*When compared to deep frying.
Features

Air Fry Mode
Uses triple heating elements and a fan to circulate hot air around the included air fry basket, crisping and browning food with less oil.**When compared to deep frying.
Dishwasher-Safe Air Fry Basket
Allows air to circulate around food as it cooks for crisping and browning and is dishwasher-safe for easy cleanup.
Even-Heat™ True Convection
EVEN-HEAT True Convection for consistent baking and roasting
Integrated Meat Thermometer
Takes the guesswork out of roasting meat just the way you like, from rare to well done. It continuously monitors cooking progress and automatically turns the oven off when your desired temperature is reached.
EasyConvect™ Conversion System
Automatically adjusts conventional baking temperatures and cook times to their convection equivalents, making it easy to use convection with recipes of all kinds.
SatinGlide™ Roll-Out Extension Rack
Makes it easy to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.
4,000-Watt Broil Element
Uses high heat to give foods a crispy, golden brown finish. Use Broil to sear meat, grill fish, char vegetables, toast bread, melt cheesy toppings and more.
FIT System Limited Guarantee
Allows the oven to install in standard, short or tall cabinet cutouts, using flexible design elements to match the height of an existing cutout.**On 27" and 30" KitchenAid® wall ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified.
Even-Heat™ Preheat
Raises the oven temperature an extra 40°F during preheating to maintain the set temperature when the oven door is opened and food is added. This also ensures the entire oven cavity, including walls and racks, is fully heated to help prevent cold spots.
Self-Close Doors
Feature specialized hinges that make it easy to shut the oven when your hands are full. Just give either door a nudge, and it will gently close itself.
Self-Cleaning Cycle
Uses high temperatures to loosen baked-on food without the need for chemical cleaners. After running this cycle, give the inside of the oven a wipe down with a damp cloth.
5.0 Cu. Ft. Oven Capacity
Provides room to cook multiple dishes, so you can cook a whole turkey or roast and sides all at once.
Star-K Certified
To meet kosher requirements for use on the Jewish Sabbath and other religious holidays. When in Sabbath Mode, the oven remains in baking mode at a constant temperature with lights, displays and tones disabled.
What's in the box
Double Wall Oven includes- Dishwasher-Safe Air Fry Basket- Integrated Meat Thermometer
PrintShield™ Finish
Resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.
| Certifications | |
|---|---|
| ADA Compliant | No |
| CUL | Yes |
| Star K Certified | Star K Certified |
| UL | Yes |
| Dimensions | |
| Oven Capacity | 283.00 l, 10 cu. ft. |
| Common Size | 76.20 cm, 30 in |
| Cutout Depth | 60.96 cm, 24 in |
| Cutout Height | 127.64 cm, 50-1/4 in |
| Cutout Width | 72.39 cm, 28-1/2 in |
| Depth | 68.90 cm, 27-1/8 in |
| Depth Closed Excluding Handles | 62.23 cm, 24-1/2 in |
| Depth Closed Including Handles | 68.90 cm, 27-1/8 in |
| Depth With Door Open 90 Degree | 118.74 cm, 46-3/4 in |
| Gross Weight | 127.01 kg, 280 lbs |
| Height | 129.06 cm, 50-13/16 in |
| Lower Oven Interior Depth | 48.26 cm, 19 in |
| Lower Oven Interior Height | 45.72 cm, 18 in |
| Lower Oven Interior Width | 63.50 cm, 25 in |
| Maximum Height | 130.18 cm, 51-1/4 in |
| Minimum Height | 129.06 cm, 50-13/16 in |
| Net Weight | 115.21 kg, 254 lbs |
| Upper Oven Interior Depth | 48.26 cm, 19 in |
| Upper Oven Interior Height | 45.72 cm, 18 in |
| Upper Oven Interior Width | 63.50 cm, 25 in |
| Width | 75.56 cm, 29-3/4 in |
| Details | |
| Delay Clean | No |
| Flush Installation Approved | Yes |
| Fuel Type | Electric |
| Oven Automatic Shut-Off | Yes |
| Oven Type | Double |
| Power On Indicator Light | Yes |
| Oven Cavity Details | |
| Bake Element Power | 2800W Both |
| Broiler Element Power | 4000W Both |
| Broiler Location | Top of Oven |
| Convection Element Power | 3200 Both W, 3200 Both W, 3200 Both W, 3200 Both W |
| Oven Convection Cooking System | True Convection |
| Convection Functions | Bake, Broil, Convection Conversion |
| Door Broil Position | Closed |
| Door Lock | Yes |
| Door Removable | Yes |
| Hidden Bake Element | Yes |
| Installable Under Cooktop | No |
| Interior Coating | Porcelain |
| Light Type | Halogen |
| Lower Oven Number of Oven Lights | 2 |
| Number of Bake Elements | 2 |
| Number of Broil Elements | 1 |
| Number of Lower Oven Racks | 3 |
| Number of Lower Rack Guides | 6 |
| Number of Upper Oven Racks | 3 |
| Number of Upper Rack Guides | 6 |
| Cleaning Type | Self-Cleaning |
| Oven Cooking System | Convection Both |
| Self-Cleaning Oven Racks | No |
| Upper Oven Number of Oven Lights | 2 |
| Smart Compatibility | |
| Connectivity | No |
| Works With | No |
| Exterior Details | |
| Door Lock | Yes |
| Door Type | Metal & Glass |
| Oven Window Size | Extra Large |
| CONTROLS | |
| Control Type | Electronic Touch |
| Display Color | White |
| Electronic Display Type | Digital |
| Language Conversion | English/French/Spanish |
| Light Control | Oven Light Touch Pad |
| Electrical | |
| Amps | 40 |
| Hz | 60 |
| Power Cord Included | No |
| Volts | 240 |
