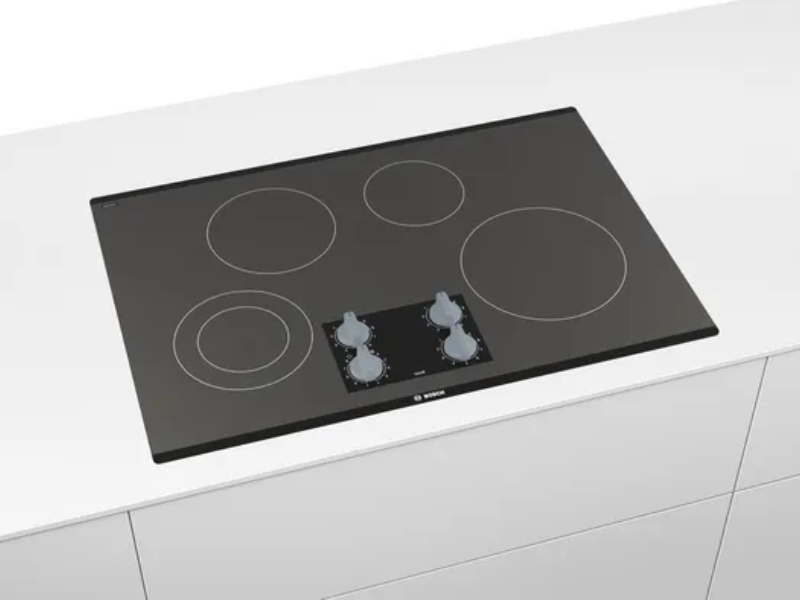

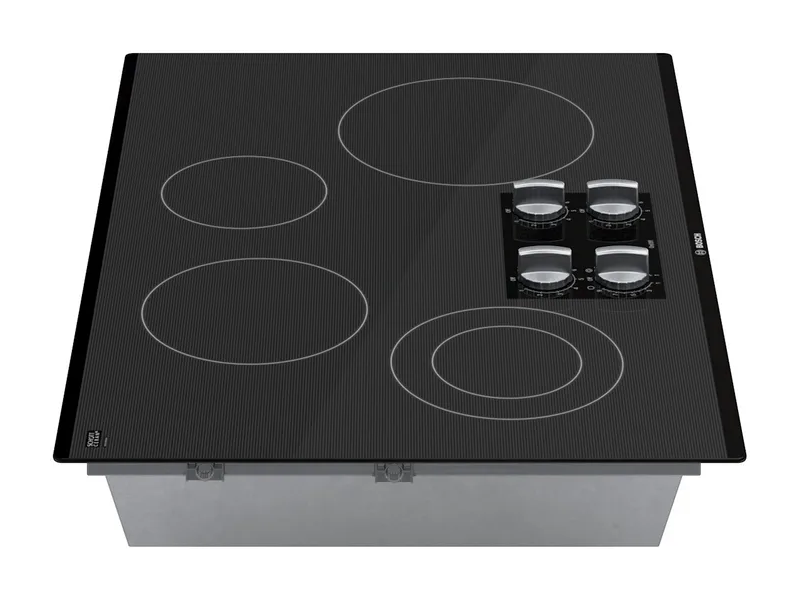

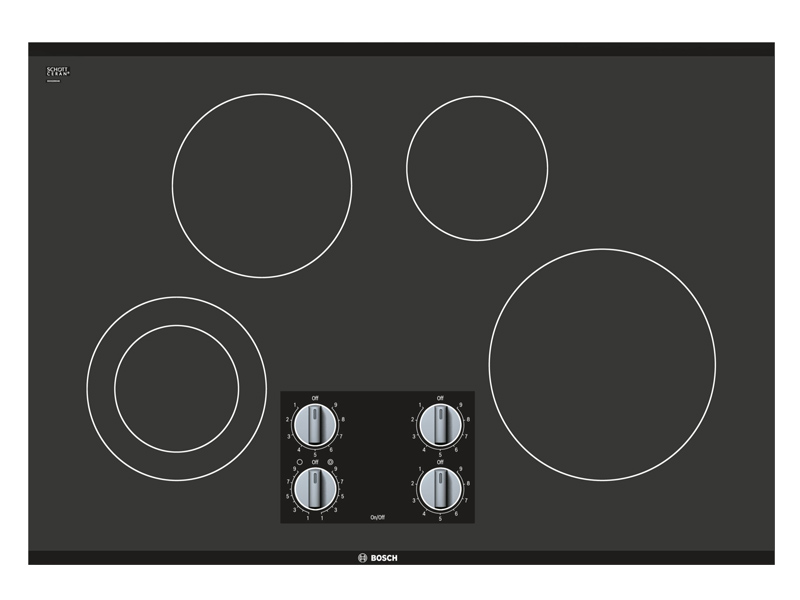

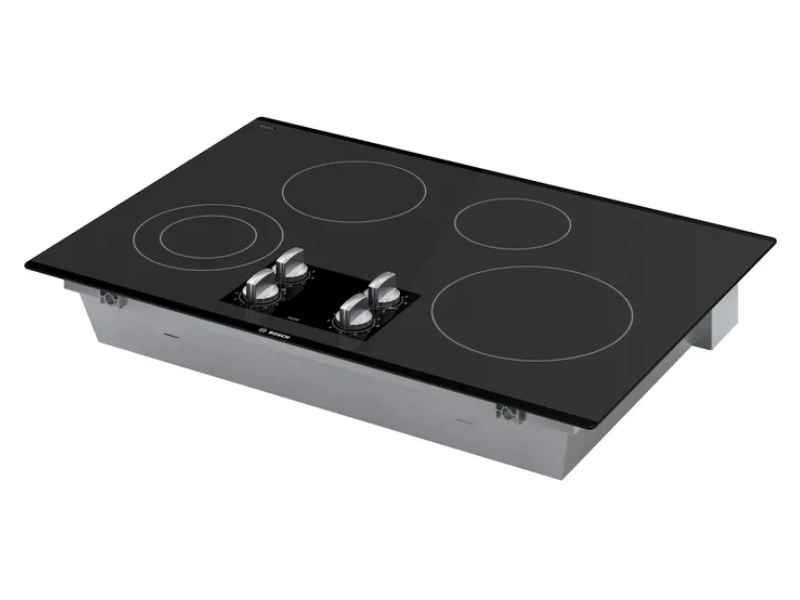

30" Bosch 500 Series Black Frameless Electric Cooktop - NEM5066UC
Literature
Book an Appointment with a Bosch Appliance Expert!
Caplan's can help choose the right products for your home. Request an appointment to visit our showrooms and be inspired.
- Infinite Temperature Controls for Precision Cooking
- Dual Element Offers the Capability to use Multiple Pan Sizes
Design

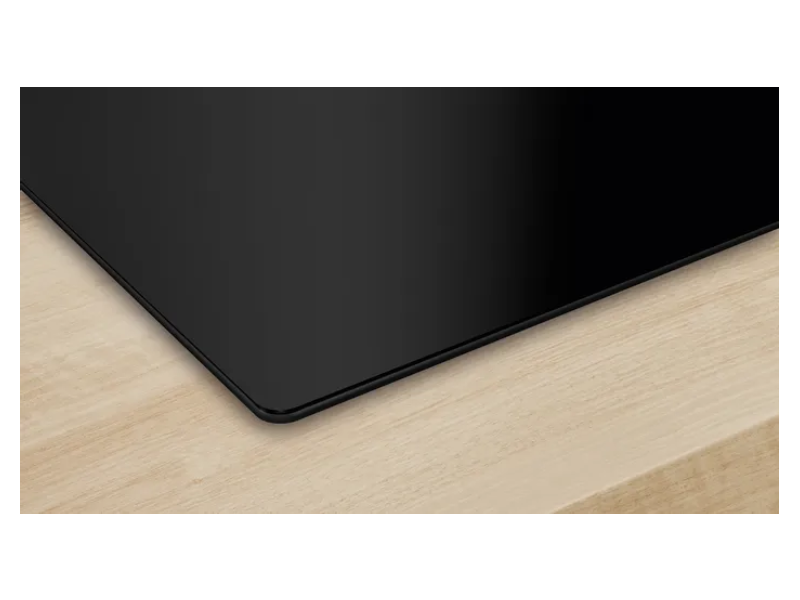

- Black-glass Seemless Design
- Cooktop Design Coordinates with Bosch Ovens and Ventilation
Performance
- Dual Element Offers the Capability to use Multiple Pan Sizes
- Infinite Temperature Controls for Precision Cooking
- Powerful 2,500W Right-Front Burner for Faster Boil Times
Safety
2-Level Heat Indicator - Warns if Cooktop is Warm or Hot
| SPECIFICATION RANGES | |
|---|---|
| Total number of cooktop burners | 4 |
| Power of 1st heating element (W) | 0.7 ; 1.7 kW |
| Dimension of 1st heating element (in) | 7"; 5" |
| Location of 1st heating element | front left |
| Knob Material | Plastic |
| Location of 2nd heating element | back left |
| Power of 2nd heating element (W) | 1.8 kW |
| Dimension of 2nd heating element (in) | 7" |
| Location of 3rd heating element | back right |
| Power of 3rd heating element (W) | 1.2 kW |
| Dimension of 3rd heating element (in) | 6" |
| Location of 4th heating element | front right |
| Power of 4th heating element (W) | 2.5 kW |
| Dimension of 4th heating element (in) | 9" |
| Sealed Burners | No |
| Approval certificates | CSA |
| Watts (W) | 7,200 W |
| Current (A) | 30/30 A |
| Volts (V) | 240/208 V |
| Frequency (Hz) | 60 Hz |
| Plug type | No plug |
| Energy source | Electric |
| Overall appliance dimensions (HxWxD) (in) | 1/4"+4" x 31" x 21 1/4" |
| Required cutout size (HxWxD) (in) | 4" x 28 7/8" x 20" |
| Product packaging dimensions (HxWxD) (in) | 7 7/8" x 37 3/8" x 24" |
| Minimum distance from counter front (in) | 2 1/4" |
| Minimum distance from rear wall (in) | 2" |
| Net weight (lbs) | 25 lbs |
| Gross weight (lbs) | 34 lbs |
