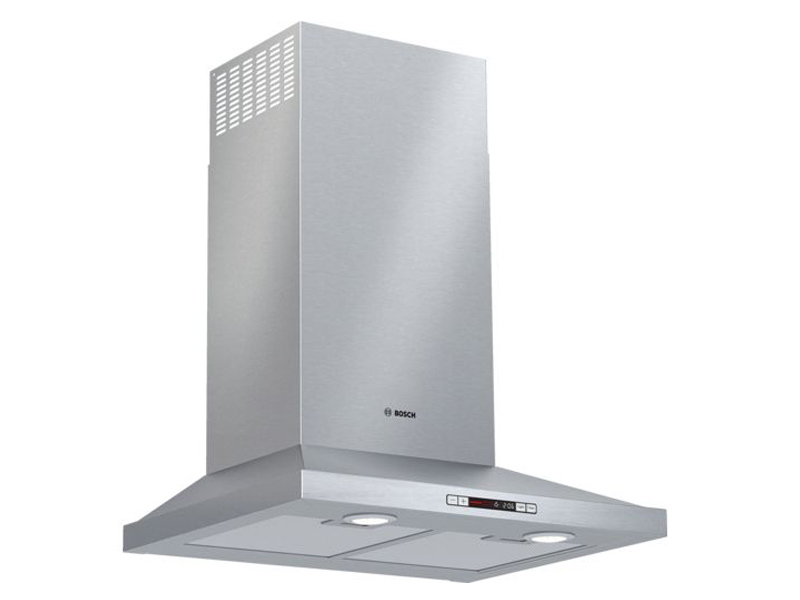

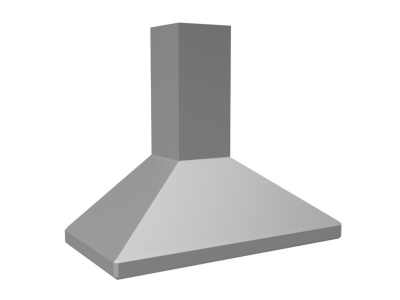

24" Bosch Wall Mount Pyramid Style Canopy Hood With 300 CFM - HCP34E52UC
Literature
Book an Appointment with a Bosch Appliance Expert!
Caplan's can help choose the right products for your home. Request an appointment to visit our showrooms and be inspired.
Caplan’s Picks
Enjoy style, quiet efficiency, & function with the first 24" ENERGY STAR chimney wall hood, ideal for small spaces.
- ENERGY STAR Certified, Efficient 310 CFM Chimney Wall Hood
- 3-Speed Power Level Options To Suit Your Cooking Style And Recipes
- LCD Touch Display Provide Controls That Are Easy To Use And Read
- Dishwasher-safe Mesh Filters
- Non-Ducted Recirculation Possible With Separate Accessory Kit
Design
- 24" Wide and Ideal To Fit In Small Kitchen Spaces
- Bright LED lighting shines throughout the cooking surface
- Pyramid Chimney Design Creates An Inspiring Focal Point In The Kitchen
- Lighting Can Be Used Independently Of Ventilation For Various Tasks

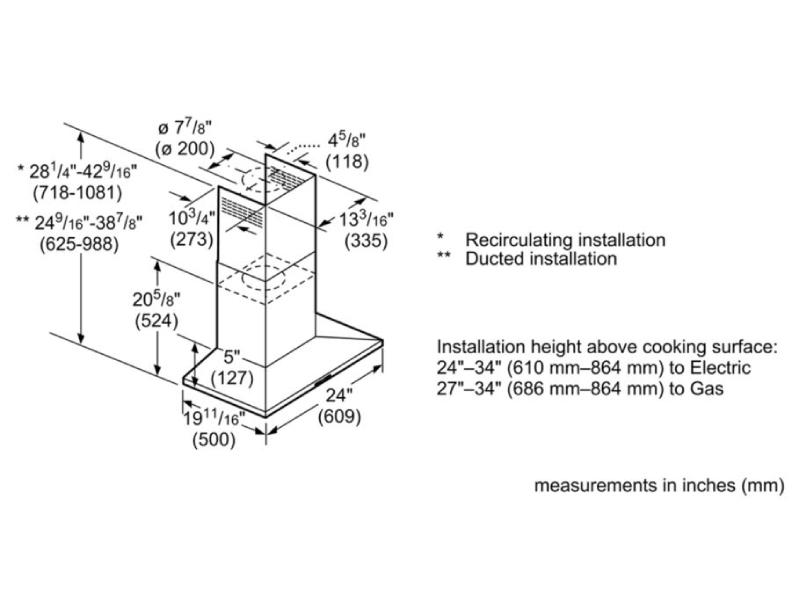

- Telescoping Chimney Design Fits Standard Ceilings 8'-9' Tall
- Telescoping Chimney Design Fits Standard Ceilings 8'-9' Tall
Performance
- Low Noise Ranging 1.5 Sones / 168 CFM Low to 5.3 Sones / 300 CFM High
- A 310 CFM Integrated Blower Motor Is Included With Purchase
- 3-Speeds Give Power Level Options To Suit Your Cooking Style

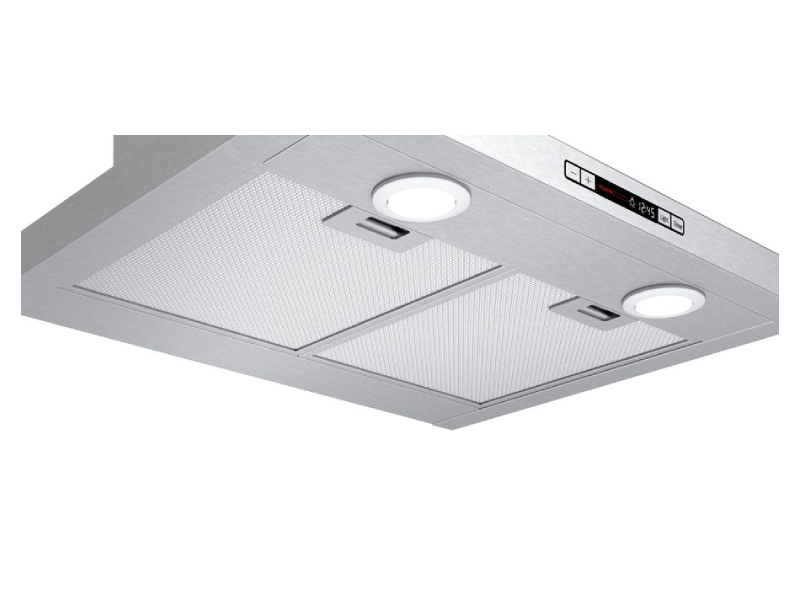

- Aluminum Mesh Filters Capture Grease Created While Cooking
- 8 inch Round Duct at Discharge
Efficiency
- ENERGY STAR Certified Hood To Ensure Efficiency And Performance
- Hood Automatically Turns On At High Speed If Excessive Heat Is Sensed

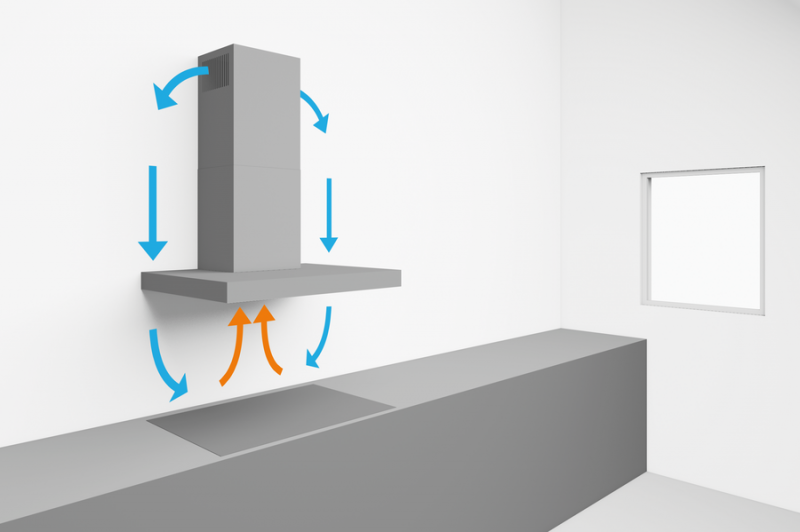

- Optional Recirculation Kit Comes With Charcoal Filters To Extract Odor
Convenience

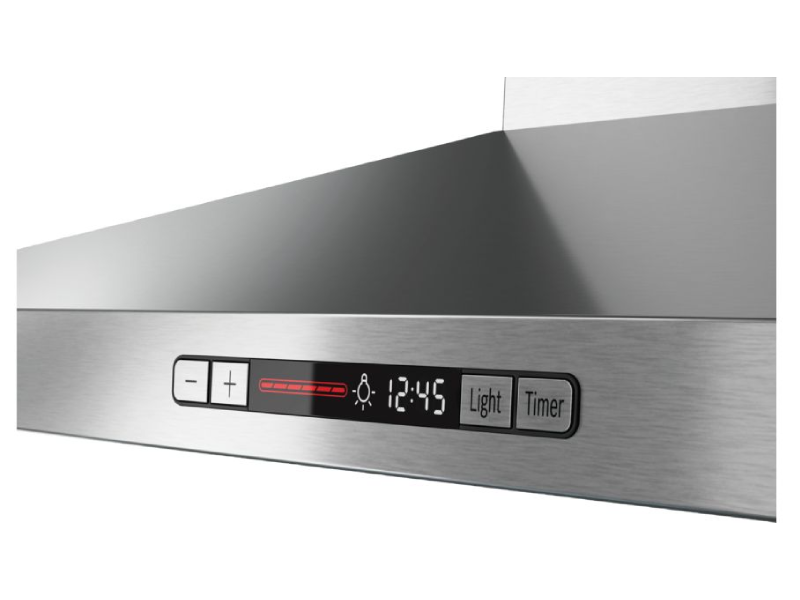

- 1-60 Minutes Timer On LCD Display Plays Audible Tone When Time Elapses
- LCD Display Will Illuminate A Reminder To Check Filter Maintenance
- Audible Tone Is Heard When Pressing A Selected Button On LCD Display
- Audible Tone When Pressing LCD Display Can Be Turned Off If Desired
| General | |
|---|---|
| Depth of the product | 500 mm |
| Construction type | Built-in |
| Operating Mode | Convertable: Ducted / Recirculating |
| Maximum output recirculating air | 241 m /h |
| Type of control | LCD, Push buttons |
| Certifications | |
| Home Connect | No |
| CONSTRUCTION TYPE | |
| Diameter of air duct (mm) | 200 mm |
| Color body | Stainless steel |
| Color chimney | Stainless steel |
| Grease filter material | Washable aluminium |
| Grease filter type | Multilayer cassette |
| Installation Type | Wall-mounted |
| Material | Stainless steel |
| Material chimney | Stainless steel |
| Motor location | Integrated motor in hood chimney |
| Number of motors | 1 |
| Operating Mode | Convertable: Ducted / Recirculating |
| Typology | Chimney |
| Connection | |
| Watts (W) | 170 W |
| Power cord length (cm) | 0 cm |
| Frequency (Hz) | 60 Hz |
| Total power of the lamps (W) | 13; 13 W |
| Total output power of the motors | 155 W |
| Volts (V) | 110 V |
